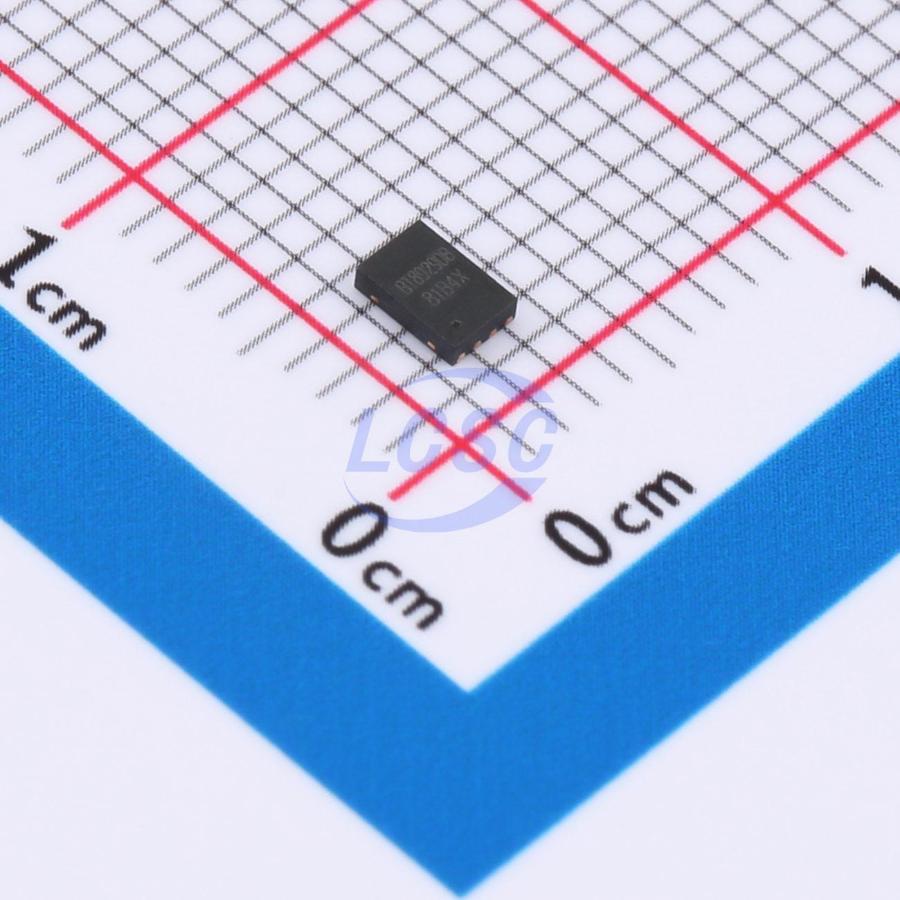

JTDBT8929DB

The BT8929DB employs an ASIC design, eliminating the system lockup issues associated with MCU-based solutions and preventing chip reset failures caused by sub-threshold voltages. It integrates a microphone sensor detection circuit that supports direct microphone input, with built-in anti-interference processing to prevent false triggering. The chip integrates an internal MOSFET discharge switch capable of delivering over 6A peak current to the atomizer during use, supporting heating coils with impedance as low as 0.8Ω under adequate PCB thermal dissipation conditions. The chip operates with stable performance and includes heating coil short-circuit protection, cutting off output when load resistance falls below 0.4Ω (Typ.). Standby current in power-saving mode is only 2.2μA (Typ.). The charging input features a built-in OVP with a peak voltage rating exceeding 38V. An integrated independent lithium battery charge management circuit supports a wide range of AC-DC and USB charging sources, with multi-mode charging (trickle, constant current, constant voltage) for superior charging performance. The BT8929DB provides multiple protection features: extended puffing protection, output short-circuit protection, over-temperature protection, under-voltage protection, and more. It also features a visual LED status indication system with distinct LED patterns corresponding to different operating states. The BT8929DB is a highly integrated, high-performance control IC for e-cigarette applications. Unlike MCU-based solutions, its ASIC design eliminates system lockup and prevents chip reset failures caused by sub-threshold voltages. The IC integrates a microphone sensor detection module, a discharge control module, and a lithium battery charging module. The minimal BOM requirement — just one LED and one capacitor — results in low overall system cost.

Applications

• E-cigarette

Key features

• 6.05V OVP on charging input, with peak input withstand voltage of 38V, greatly enhancing system reliability
• Simple peripheral circuitry; RC components can be omitted on the charging input pin; USB input hot-plug test withstand voltage exceeds 28V
• Power-saving mode quiescent current as low as 2.2uA (Typ.)
• Heating coil impedance support down to 0.8Ω
• 10-second continuous puffing protection
• 3.6V (Typ.) average voltage output
• LED indication for load insertion/removal
• Standard three-stage (trickle – constant current – constant voltage) Li-ion battery charge management
• Preset 4.15V (Typ.) charge termination voltage
• Maximum charge current 520mA (Typ.); intelligent thermal control reduces charge current as temperature rises to deliver maximum charge current without triggering OTP
• Time-division simultaneous charge and discharge (if puffing occurs during charging, charging is suspended and switched to puffing mode; charging resumes automatically after puffing stops)
• Integrated SCP
• Integrated UVLO
• Integrated OTP
• Multiple LED display modes: simulates actual puffing behavior; indicates chip startup, voltage detection, various protection events, and charging status
• Package: DFN8 (2*3)
