JTDDatasheet (PDF)

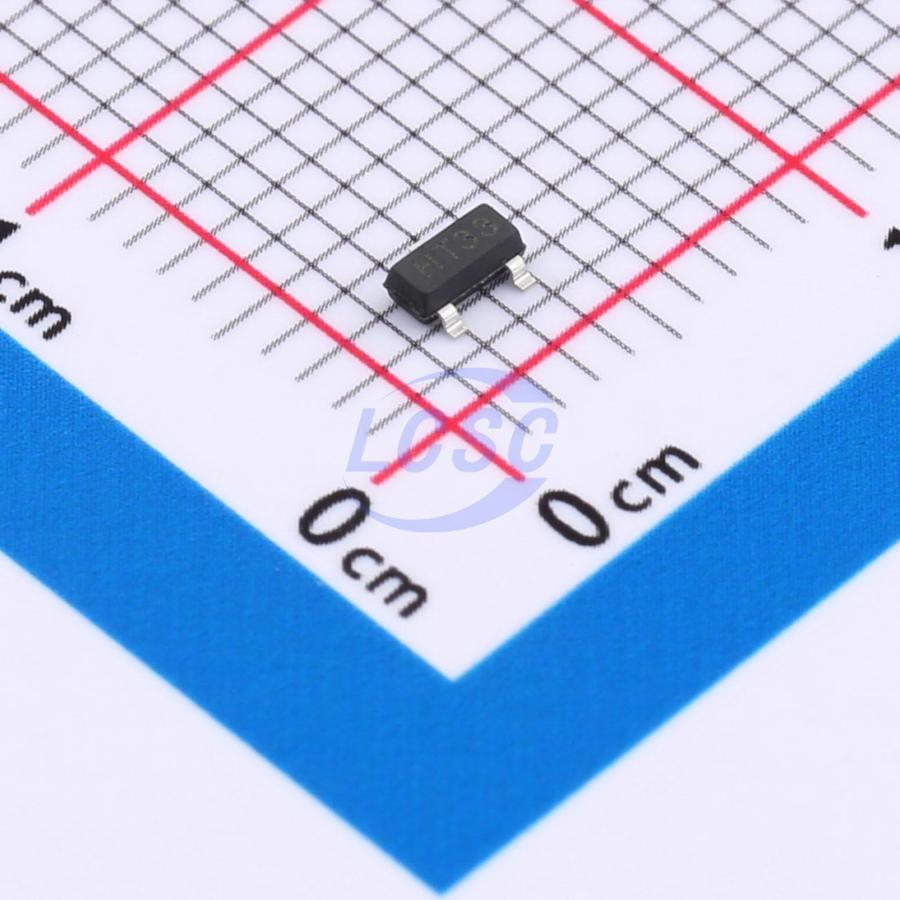

JTDHT33
Linear Voltage Regulator IC Fixed 100mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 3.3V 100mA SOT-23
- Manufacturer
- JTD
- Manufacturer part #
- JTDHT33
- Store part #
- C42442692
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,200 in stock
#C42442692
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.61 | ₹72.20 |
| 200+ | ₹2.82 | ₹564.00 |
| 600+ | ₹2.38 | ₹1,428.00 |
| 3,000+ | ₹2.10 | ₹6,300.00 |
| 9,000+ | ₹1.88 | ₹16,920.00 |
| 21,000+ | ₹1.76 | ₹36,960.00 |
20 × ₹3.61
₹72.20
excl. GST
₹85.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTDHT33
₹72.20 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
The HT30 series is a low dropout linear regulator based on CMOS technology. Supporting a maximum operating voltage of 24V, it offers multiple fixed output voltage options ranging from 2.8V to 9.0V, with low quiescent current consumption. It is widely used in power supply applications for audio/video equipment and communication devices.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current: 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
