JTDDatasheet (PDF)

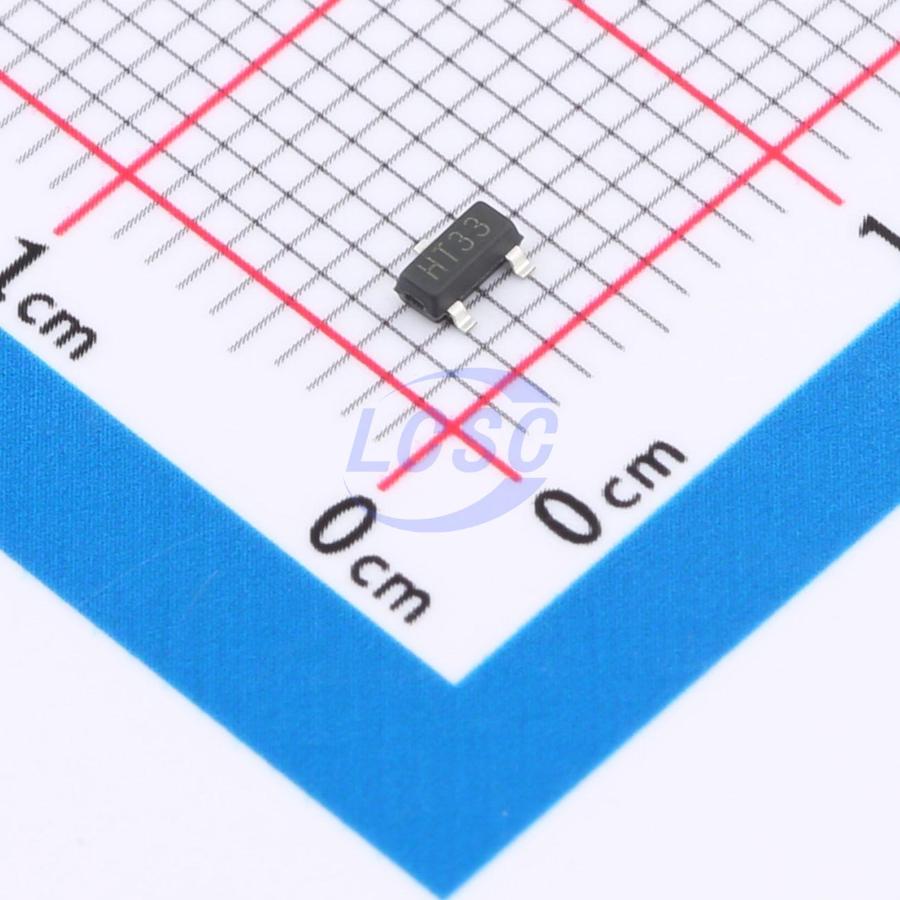

JTDHT33H
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
IC REG LINEAR 3.3V 250mA SOT-23
- Manufacturer
- JTD
- Manufacturer part #
- JTDHT33H
- Store part #
- C49308263
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,280 in stock
#C49308263
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.38 | ₹53.80 |
| 100+ | ₹4.26 | ₹426.00 |
| 300+ | ₹3.69 | ₹1,107.00 |
| 3,000+ | ₹3.27 | ₹9,810.00 |
| 6,000+ | ₹2.94 | ₹17,640.00 |
| 9,000+ | ₹2.77 | ₹24,930.00 |
10 × ₹5.38
₹53.80
excl. GST
₹63.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTDHT33H
₹53.80 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
JTDHT33H is a low dropout linear regulator fabricated using CMOS technology. It features a 50V breakdown voltage, 3.3V output voltage, 250mA output current capability, and low quiescent current consumption. It incorporates output short-circuit protection and output current foldback at high temperatures to prevent system failure, making it widely applicable in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Small temperature drift coefficient
- 50V withstand voltage
- Typical quiescent current 2.0μA
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current derating when junction temperature exceeds 120℃
- ESD HBM exceeds 2500V
