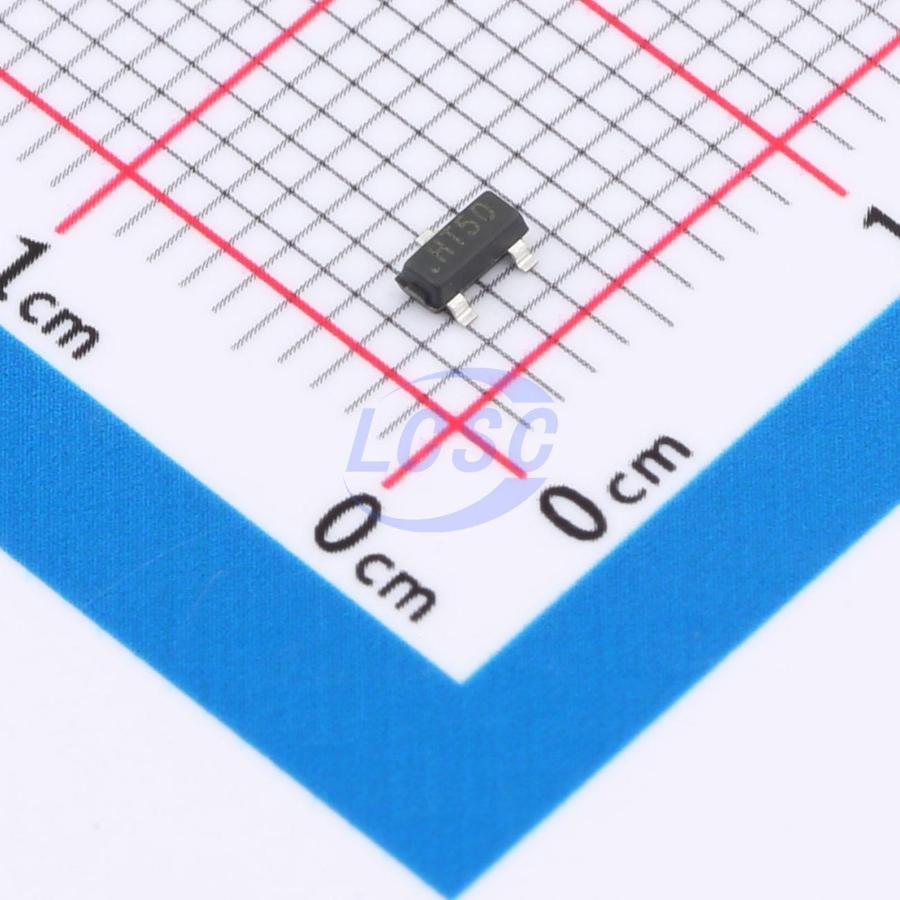

JTDHT50H
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
IC REG LINEAR 5V 250mA SOT-23
- Manufacturer
- JTD
- Manufacturer part #
- JTDHT50H
- Store part #
- C49308262
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C49308262
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.37 | ₹53.70 |
| 100+ | ₹4.25 | ₹425.00 |
| 300+ | ₹3.68 | ₹1,104.00 |
| 3,000+ | ₹3.27 | ₹9,810.00 |
| 6,000+ | ₹2.92 | ₹17,520.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.37
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JTDHT50H
₹53.70 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
JTDHT50H is a low dropout linear regulator using CMOS technology. It features a 50V breakdown voltage, 5.0V output voltage, 250mA output current capability, and low quiescent current consumption. The device incorporates output short-circuit protection and reduces output current at elevated temperatures to prevent system shutdown, making it widely used in power supply applications for audio/video equipment and communications devices.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Small temperature drift coefficient
- 50V voltage rating
- Typical quiescent current 2.0μA
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current derating above junction temperature 120°C
- ESD HBM exceeds 2500V
