JoulWatt TechDatasheet (PDF)

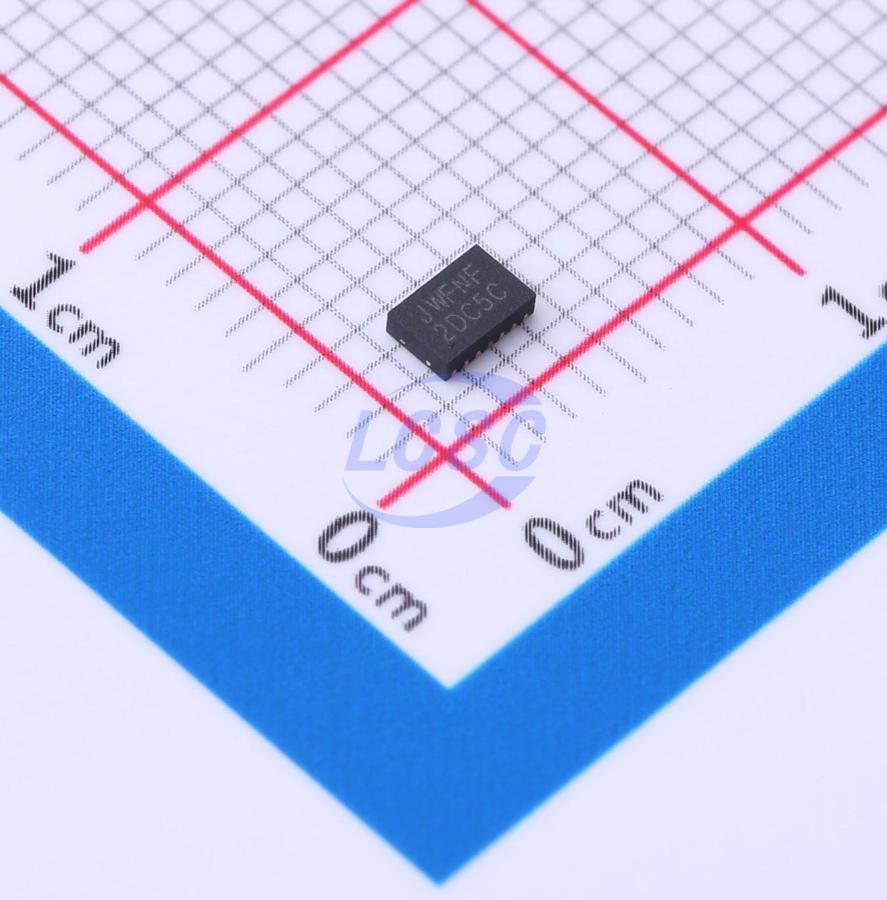

JW7107SDFNC#TRPBF
2 6A Active High Load Switch DFN-14(3x2) Power Distribution Switches, Load Drivers RoHS
DFN-14(3x2)ROHS CompliantActive
6A, 5.5V Low On-Resistance Dual-Channel Load Switch
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW7107SDFNC#TRPBF
- Store part #
- C5121637
- Package / case
- DFN-14(3x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C5121637
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.72 | ₹178.60 |
| 50+ | ₹27.72 | ₹1,386.00 |
| 150+ | ₹24.30 | ₹3,645.00 |
| 500+ | ₹20.02 | ₹10,010.00 |
| 3,000+ | ₹18.92 | ₹56,760.00 |
| 6,000+ | ₹17.77 | ₹1,06,620.00 |
5 × ₹35.72
₹178.60
excl. GST
₹210.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW7107SDFNC#TRPBF
₹178.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Over temperature protection;Output discharge function;Soft-start
- number of channels
- 2
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- Operating Voltage
- 800mV~5.5V
- RDS(on)
- 17mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
JW7107S is a low on-resistance dual channel load switch with programmable turn-on rise time. It contains two N-channel MOSFETS that can provide 6A maximum continuous current per channel. Each channel can operate over an input voltage range of 0.8V to 5.5V. Each channel can be independently controlled by a low-voltage control signal through EN1/EN2 pin. In JW7107S, a 200Ω load resistor is integrated for quick output discharge when load switch is turned off. The optional external capacitor connected to SS1/SS2 is used for output slew rate control.
Applications
- Portable Computers
- Tablet PCs
- Consumer Electronics
- Set-top Boxes and Residential Gateways
- Telecom Systems
- Solid-State Drives (SSD)
Key features
- Operating range: 0.8V ~ 5.5V
- Low quiescent current 80uA (both channels) 60uA (single channels)
- Low on-resistance
- Integrated dual-channel up to 6A maximum load current per channel
- Low-voltage enable control
- Externally programmable rise time
- Quick output discharge
- Thermal shutdown
- Available in DFN3×2-14 package
