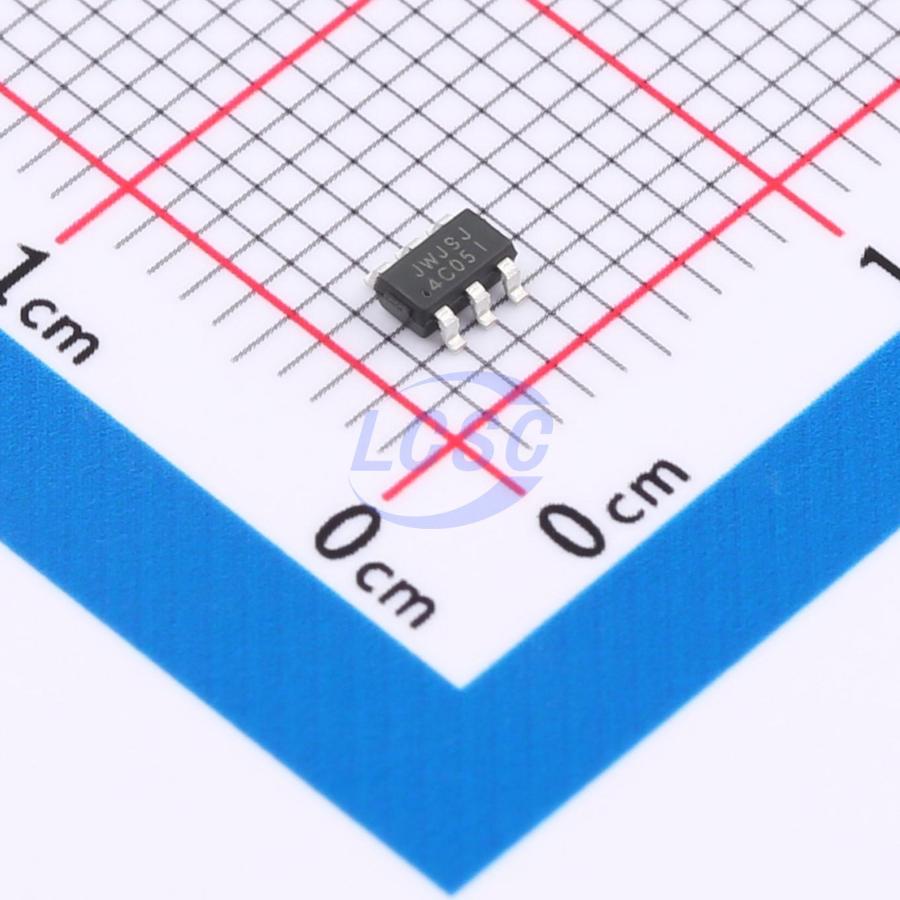

JW7726BHSOTB#TR
600mW 4V~8.5V Flyback 4.7V~25V SOT-23-6 AC DC Converters, Offline Switchers
SOT-23-6RoHSActive
Synchronous Rectifier Controller
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW7726BHSOTB#TR
- Store part #
- C23091037
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C23091037
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.04 | ₹155.20 |
| 50+ | ₹23.91 | ₹1,195.50 |
| 150+ | ₹20.85 | ₹3,127.50 |
| 500+ | ₹17.04 | ₹8,520.00 |
| 3,000+ | ₹16.47 | ₹49,410.00 |
| 6,000+ | ₹15.47 | ₹92,820.00 |
5 × ₹31.04
₹155.20
excl. GST
₹183.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW7726BHSOTB#TR
₹155.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 600mW
- Voltage - Supply
- 4V~8.5V
- Features
- Synchronous rectification drive;Under-voltage lockout;Under Voltage Protection
- Topology
- Flyback
- Output Voltage
- 4.7V~25V
- Working Mode
- DCM;CRM;CCM;QR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.055 g
Overview
JW7726BH is a synchronous rectifier controller, used for the secondary side rectification of isolation topologies, such as Active Clamp Flyback and CCM/QR/DCM Flyback. By driving an external MOSFET, JW7726BH is able to significantly improve the efficiency comparing with the conventional Diode rectifier. When JW7726BH senses Vds of MOSFET less than -140mV, it turns on the MOSFET. Once the Vds is greater than -3mV, JW7726BH turns off the MOSFET. JW7726BH supports multiple operation modes, such as DCM, CrCM, CCM and Quasi-Resonant. By implementing the Joulwatt proprietary technology, JW7726BH is able to handle CCM operation. JW7726BH is available in SOT23-6 package.
Applications
- Active clamp Flyback and Flyback converters
- Adaptor
- LCD and PDP TV
Key features
- Supports Active Clamp Flyback, DCM, Quasi-Resonant, and CCM Flyback
- Support High-side and Low-side rectification
- Output voltage directly supply VCC
- Low quiescent current
- Fast driver capability for CCM operation
- SOT23-6 package
