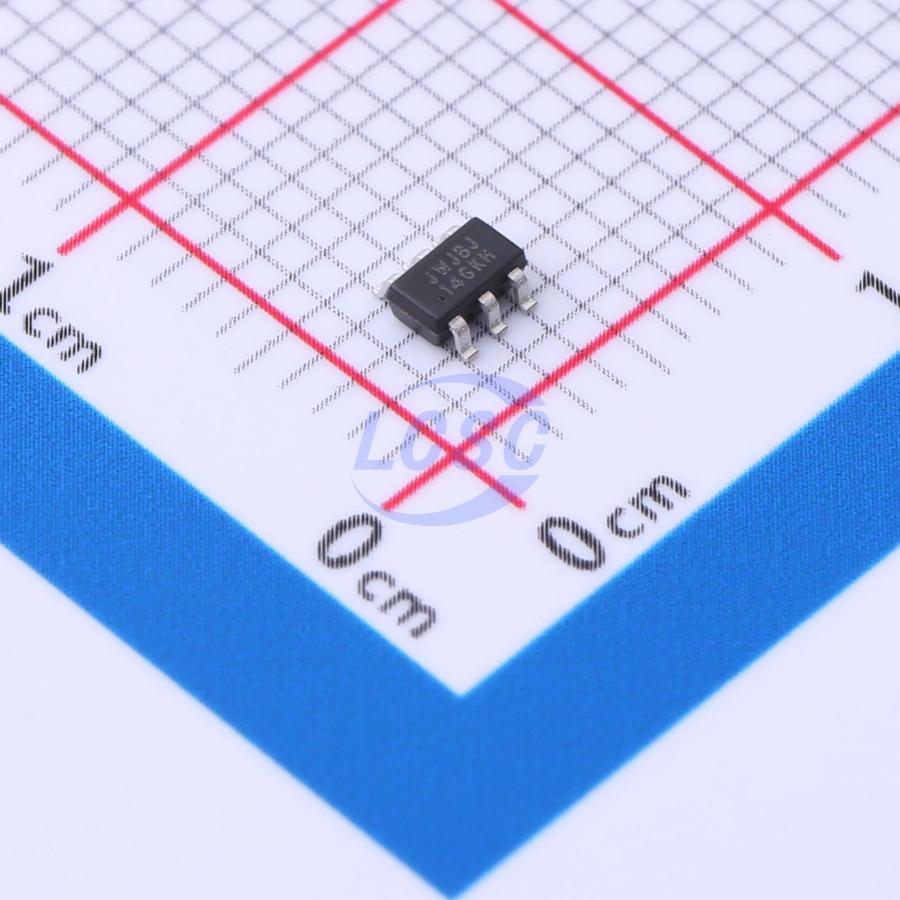

JW7726BLSOTB#TR
Multi-mode compatible control 100kHz SOT-23-6 Power Supply Controllers, Monitors
Synchronous Rectifier Controller
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW7726BLSOTB#TR
- Store part #
- C5121640
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,350 in stock
#C5121640
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.39 | ₹176.95 |
| 50+ | ₹27.74 | ₹1,387.00 |
| 150+ | ₹24.46 | ₹3,669.00 |
| 500+ | ₹20.37 | ₹10,185.00 |
| 3,000+ | ₹18.56 | ₹55,680.00 |
| 6,000+ | ₹17.46 | ₹1,04,760.00 |
5 × ₹35.39
₹176.95
excl. GST
₹208.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW7726BLSOTB#TR
₹176.95 for 5 + GST
Specifications
- MOS Breakdown Voltage
- 150V
- Function
- Multi-mode compatible control
- Frequency - Switching
- 100kHz
- Switch Tube (Built-In/External)
- Non Built-In
- Quiescent Current
- 70uA
- Operating Temperature
- -40℃~+125℃
- Peak Output Current(Sink)
- 4.7A
- Operating Voltage
- 4V~8V
- Peak Output Current(Source)
- 650mA
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The JW7726BL is a synchronous rectification controller used for secondary-side rectification in isolated topologies, such as active clamp flyback and CCM/QR/DCM flyback. By driving an external MOSFET, the JW7726BL can significantly improve efficiency compared to traditional diode rectifiers. When the JW7726BL detects that the Vds of the MOSFET is less than -300mV, it turns on the MOSFET. Once the Vds is greater than -10mV, the JW7726BL turns off the MOSFET. The JW7726BL supports multiple operating modes, such as DCM, CrCM, CCM, and quasi-resonant. By adopting Joulwatt's proprietary technology, the JW7726BL can handle CCM operation. The JW7726BL comes in an SOT23-6 package.
Applications
- Active clamp flyback and flyback converters
- Adapters
- LCD and PDP TVs
Key features
- Active clamp flyback, DCM, quasi-resonant, and CCM flyback support
- High-side and low-side rectification support
- Output voltage direct VCC supply
- Low quiescent current
- Fast drive capability for CCM operation
- SOT23-6 package
