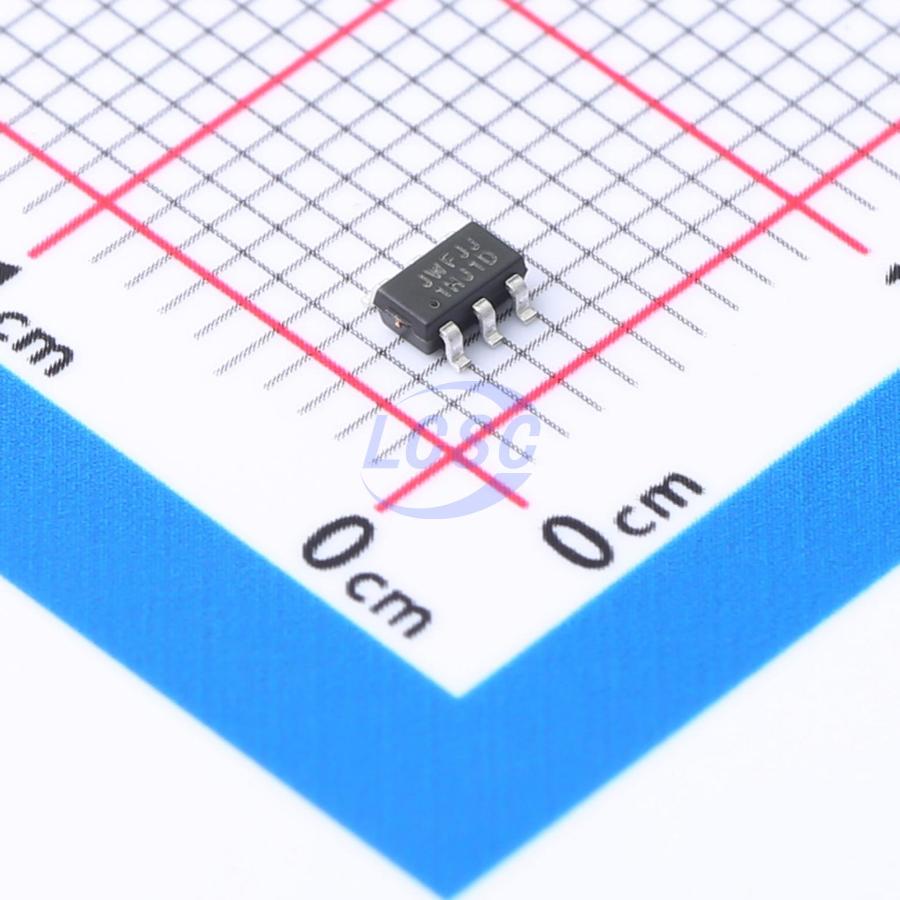

JW7726CSOTB#TRPBF
Multi-mode compatible control SOT-23-6 Power Supply Controllers, Monitors
Synchronous Rectifier Controller
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW7726CSOTB#TRPBF
- Store part #
- C5121641
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C5121641
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.64 | ₹168.20 |
| 50+ | ₹29.30 | ₹1,465.00 |
| 150+ | ₹27.45 | ₹4,117.50 |
| 500+ | ₹25.14 | ₹12,570.00 |
| 3,000+ | ₹23.89 | ₹71,670.00 |
| 6,000+ | ₹23.27 | ₹1,39,620.00 |
5 × ₹33.64
₹168.20
excl. GST
₹198.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW7726CSOTB#TRPBF
₹168.20 for 5 + GST
Specifications
- MOS Breakdown Voltage
- 140V
- Function
- Multi-mode compatible control
- Switch Tube (Built-In/External)
- Non Built-In
- Quiescent Current
- 110uA
- Operating Temperature
- -40℃~+125℃
- Peak Output Current(Sink)
- 4A
- Operating Voltage
- 4V~8.5V
- Peak Output Current(Source)
- 600mA
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.6 g
Overview
JW7726C is a synchronous rectifier controller, used for the secondary side rectification of isolation topologies, such as Active Clamp Flyback and CCM/QR/DCM Flyback. By driving an external MOSFET, JW7726C is able to significantly improve the efficiency comparing with the conventional Diode rectifier. When JW7726C senses Vds of MOSFET less than -140mV, it turns on the MOSFET. Once the Vds is greater than -3mV, JW7726C turns off the MOSFET. JW7726C supports multiple operation modes, such as DCM, CrCM, CCM and Quasi-Resonant. By implementing the Joulwatt proprietary technology, JW7726C is able to handle CCM operation. JW7726C is available in SOT23-6 package.
Applications
- Active clamp Flyback and Flyback converters
- Adaptor
- LCD and PDP TV
Key features
- Supports Active Clamp Flyback, DCM, Quasi-Resonant, and CCM Flyback
- Support High-side and Low-side Rectification
- Output Voltage Directly Supply VCC
- Low Quiescent Current
- Fast Driver Capability for CCM Operation
- SOT23-6 Package
