JoulWatt TechDatasheet (PDF)

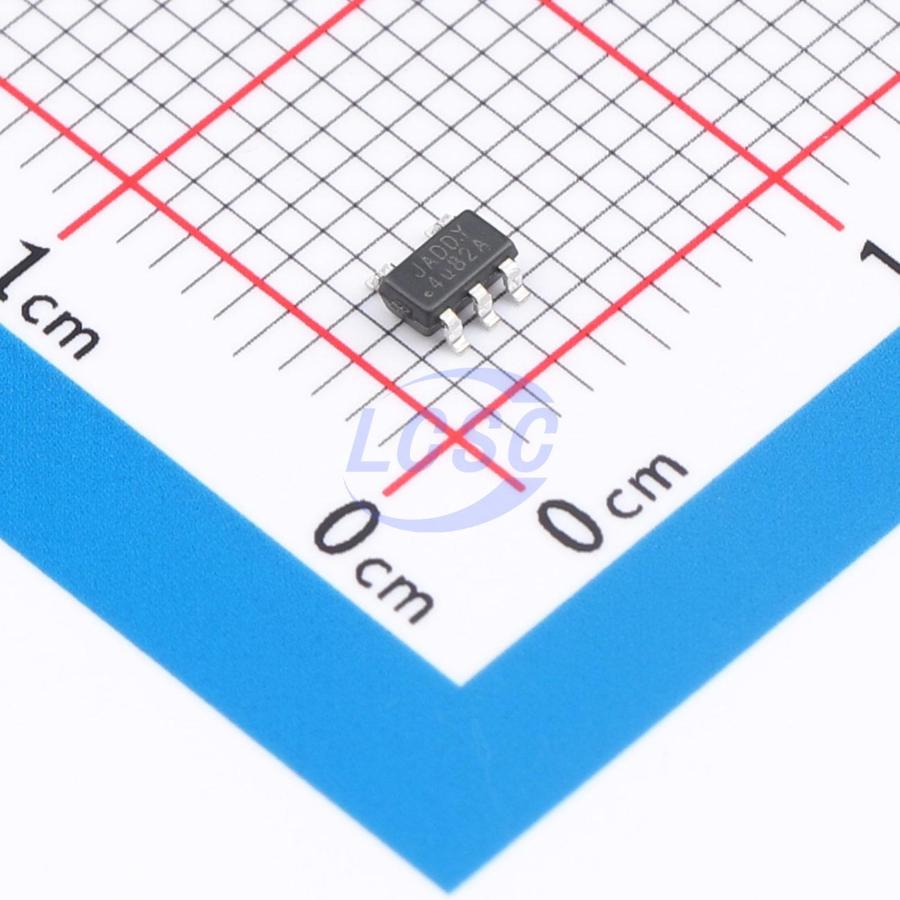

JW7809-2.5SOTA#TR
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- JoulWatt Tech
- Manufacturer part #
- JW7809-2.5SOTA#TR
- Store part #
- C41416230
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,680 in stock
#C41416230
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.67 | ₹93.40 |
| 200+ | ₹3.63 | ₹726.00 |
| 600+ | ₹3.04 | ₹1,824.00 |
| 2,000+ | ₹2.69 | ₹5,380.00 |
| 10,000+ | ₹2.38 | ₹23,800.00 |
| 20,000+ | ₹2.22 | ₹44,400.00 |
20 × ₹4.67
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JW7809-2.5SOTA#TR
₹93.40 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 11uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.041 g
Overview
JW7809 is a low-noise, low-dropout linear regulator with enable function, operating over an input voltage range of 2.2V to 6V and capable of delivering up to 500mA of output current. Its low-noise and high PSRR characteristics make it well-suited for RF and analog systems. The device supports output voltages from 1.2V to 4.5V in 25mV steps, and features output short-circuit protection, input undervoltage lockout, and over-temperature protection for robust operation. JW7809 is available in SOT23-5, X2DFN1×1-4, and EWDFN2×2-6 packages.
Applications
- ADAS cameras and radar
- ADAS domain controllers
- Cockpit domain controllers
- Telematics systems
Key features
- Input voltage range: 2.2V to 6V
- Output voltage range: 1.2V to 4.5V
- Output current: 500mA
- Output voltage accuracy: ±2.5%
- Quiescent current (enabled): 11μA
- Power supply rejection ratio: 82dB @1kHz
- Low output voltage noise: 12μVRMS
- Stable operation with as little as 1μF effective output capacitance
- Remote output capacitor placement supported
- No noise bypass capacitor required
- Current limiting protection
- Over-temperature protection
- Available in SOT23-5, X2DFN1×1-4, EWDFN2×2-6 packages
