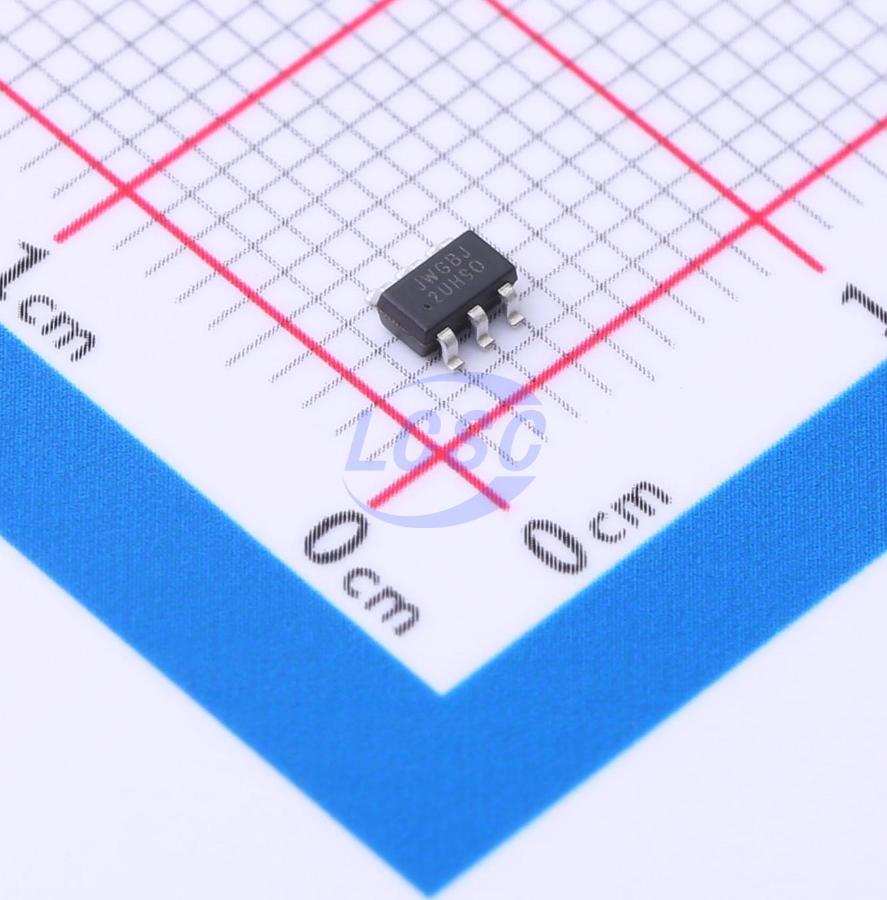

JWH7103SOTB#TRPBF

1 1.5A Active High High Side Switch SOT-23-6 Power Distribution Switches, Load Drivers

SOT-23-6RoHSActive

Single Power Switch with Flag

Manufacturer: JoulWatt Tech
Manufacturer part #: JWH7103SOTB#TRPBF
Store part #: C5121643
Package / case: SOT-23-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,015 in stock

#C5121643

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹36.58	₹182.90
50+	₹28.38	₹1,419.00
150+	₹24.86	₹3,729.00
500+	₹20.48	₹10,240.00
3,000+	₹20.16	₹60,480.00
6,000+	₹19.00	₹1,14,000.00

Quantity (min 5, multiples of 5)

5 × ₹36.58

₹182.90

excl. GST

₹215.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

JWH7103SOTB#TRPBF

₹182.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Reverse voltage protection
number of channels: 1
Maximum Continuous Current: 1.5A
Control Input Logic: Active High
RDS(on): 48mΩ
Operating Voltage: 2.7V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.049 g

Overview

The JWH7103 is a single channel current-limited power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. The rise and fall times are controlled to minimize current overshoot or undershoot during switches on/off. The device has fast short-circuited response time for improved overall system robustness. It provides a complete protection solution, such as reverse current blocking and limit, over-current protection, over-temperature protection and short-circuit protection, as well as controlled rise time and under-voltage lockout function. A 7.5ms de-glitch time on the open-drain flag output prevents false over-current reporting. The JWH7103 integrates high-side MOSFET optimized for Universal Serial Bus (USB) that requires protection functions. The MOSFET is driven with controlled gate voltage and slew-rate, which makes this USB device ideal for hot-swap or hot-plug applications.

Applications

Set-Top Boxes
LCD TVs & Monitors
Residential Gateways
Laptops, Desktops, Servers, E-books
Printers, Docking Stations, HUBs

Key features

Up to 1.5A maximum load current
±9% accurate current limit@1.7A
FLG: active low
EN: active high
Reverse current blocking during shutdown and reverse current limit during enable
Constant-current during over-current
Fast short-circuit response time: 2μs (typ.)
Adjustable current limit 0.4A~1.7A
Operating range: 2.7V - 5.5V
Over-current protection, short-circuit Protection and thermal protection
Fault report (FAULT) with de-glitch time
ESD protection: 2kV HBM, 750V CDM
Available in SOT23-6 and DFN2X2-6 packages
