JY1103-H300BX

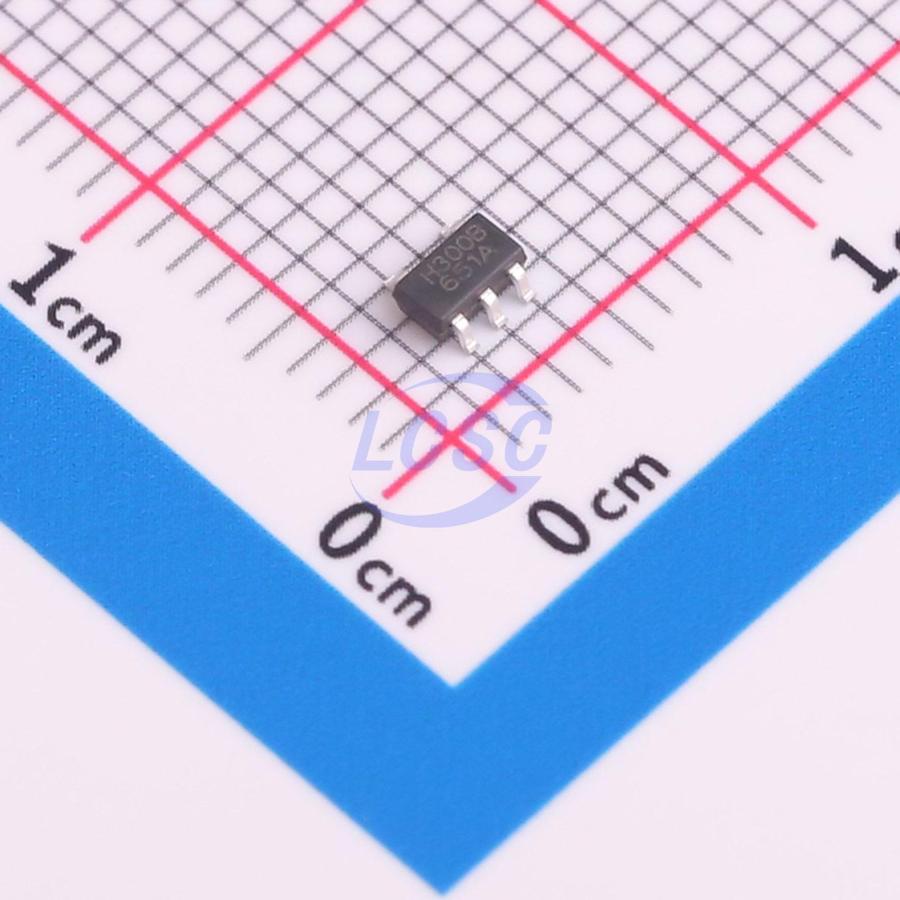

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
High-speed low-dropout voltage regulator with ±2% accuracy
- Manufacturer
- JingYang
- Manufacturer part #
- JY1103-H300BX
- Store part #
- C3038103
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,825 in stock
#C3038103
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.19 | ₹75.95 |
| 50+ | ₹12.07 | ₹603.50 |
| 150+ | ₹10.50 | ₹1,575.00 |
| 500+ | ₹9.33 | ₹4,665.00 |
| 3,000+ | ₹8.40 | ₹25,200.00 |
| 6,000+ | ₹7.92 | ₹47,520.00 |
5 × ₹15.19
₹75.95
excl. GST
₹89.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JY1103-H300BX
₹75.95 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The JY1103 series are positive voltage regulators with high speed, low voltage dropout and high accuracy output achieved by low current consumption. The output voltage is guaranted within ±2% within the given temperature range by Vref controlling the temperature characteristic. It corresponds to the low ESR capacitor as an output stabilization capacitor. The charged ESR capacitor can be discharged with an internal switch by making the EN=VSS, as a result the VOUT quickly returns to the VSS level. To make the current capacity of the output transistor not exceeded, the over-current protection circuit is built in.
Applications
- Battery powered devices
- Cellular phone
- Digital / Video cameras
- Portable games
- Handheld instruments
- Wireless LANs
- Bluetooth Portable Radios
- GSM/GPRS/3G RF Transceiver
Key features
- Output voltage range: 0.8V~5.0V (selectable with a step of 0.05V)
- Operating voltage range: 1.6V~6.0V
- High accuracy output voltage: ±2% (VOUT=1.95V~5.0V) / ±40mV (VOUT=0.8V~1.9V)
- Maximum output current: 300mA
- Dropout voltage: Typ. 60mV (VOUT=3.0V, IOUT=100mA)
- Low current consumption: Typ. 25μA
- High ripple rejection: Typ. 50dB at 1KHz
- Low ESR capacitor: 1.0μF ceramic capacitor
- Operating temperature range: -40°C~+85°C
- Built-in over-current protector: 300mA limited
- Small package: SOT23; SOT23-5L; SOT23-6L ; SOT89-3L ; DFN 1*1-4L
- CL high-speed auto-discharge
- Built-in On/Off circuit
- Pb free & RoHS Compliant
