JingYangDatasheet (PDF)

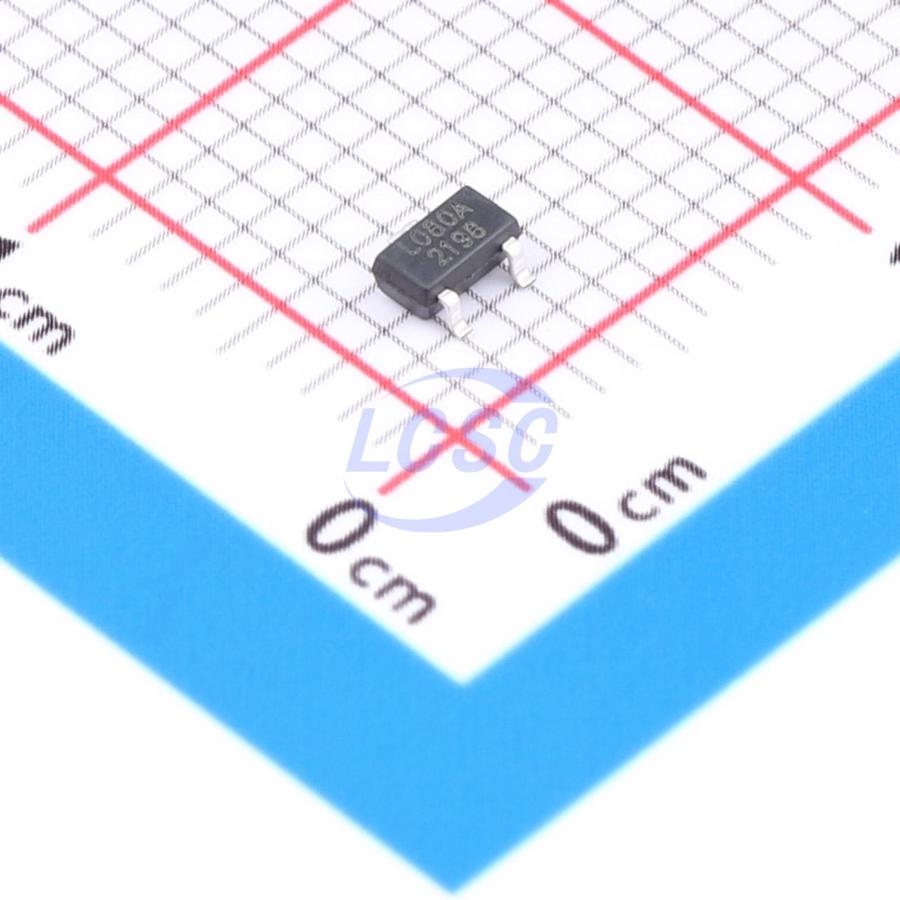

JY1103-L080AX
800mV Positive Fixed SOT23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT23-3LROHS CompliantActive
High-speed low-dropout voltage regulator with ±2% accuracy
- Manufacturer
- JingYang
- Manufacturer part #
- JY1103-L080AX
- Store part #
- C5380420
- Package / case
- SOT23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C5380420
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.30 | ₹61.50 |
| 50+ | ₹9.72 | ₹486.00 |
| 150+ | ₹8.44 | ₹1,266.00 |
| 500+ | ₹7.47 | ₹3,735.00 |
| 3,000+ | ₹6.69 | ₹20,070.00 |
| 6,000+ | ₹6.31 | ₹37,860.00 |
5 × ₹12.30
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JY1103-L080AX
₹61.50 for 5 + GST
Specifications
- Output Voltage
- 800mV
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Reverse-polarity current protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The JY1103 series are positive voltage regulators with high speed, low voltage dropout and high accuracy output achieved by low current consumption. The output voltage is guaranted within ±2% within the given temperature range by Vref controlling the temperature characteristic. It corresponds to the low ESR capacitor as an output stabilization capacitor. The charged ESR capacitor can be discharged with an internal switch by making the EN = VSS, as a result the VOUT quickly returns to the VSS level. To make the current capacity of the output transistor not exceeded, the over-current protection circuit is built in.
Applications
- Battery powered devices
- Cellular phone
- Digital / Video cameras
- Portable games
- Handheld instruments
- Wireless LANs
- Bluetooth Portable Radios
- GSM/GPRS/3G RF Transceiver
Key features
- Output voltage range: 0.8V~5.0V (selectable with a step of 0.05V)
- Operating voltage range: 1.6V~6.0V
- High accuracy output voltage: ±2% (VOUT = 1.95V~5.0V) / ±40mV (VOUT = 0.8V~1.9V)
- Maximum output current: 300mA
- Dropout voltage: Typ. 60mV (VOUT = 3.0V, IOUT = 100mA)
- Low current consumption: Typ. 25μA
- High ripple rejection: Typ. 50dB at 1KHz
- Low ESR capacitor: 1.0μF ceramic capacitor
- Operating temperature range: -40°C~+85°C
- Built-in over-current protector: 300mA limited
- Small package: SOT23 -3L; SOT23-5L; SOT23-6L ; SOT89-3L; DFN 1*1-4L
- CL high-speed auto-discharge
- Built-in On/Off circuit
- Pb free & RoHS Compliant
