JingYang

JY1105-ADJBX

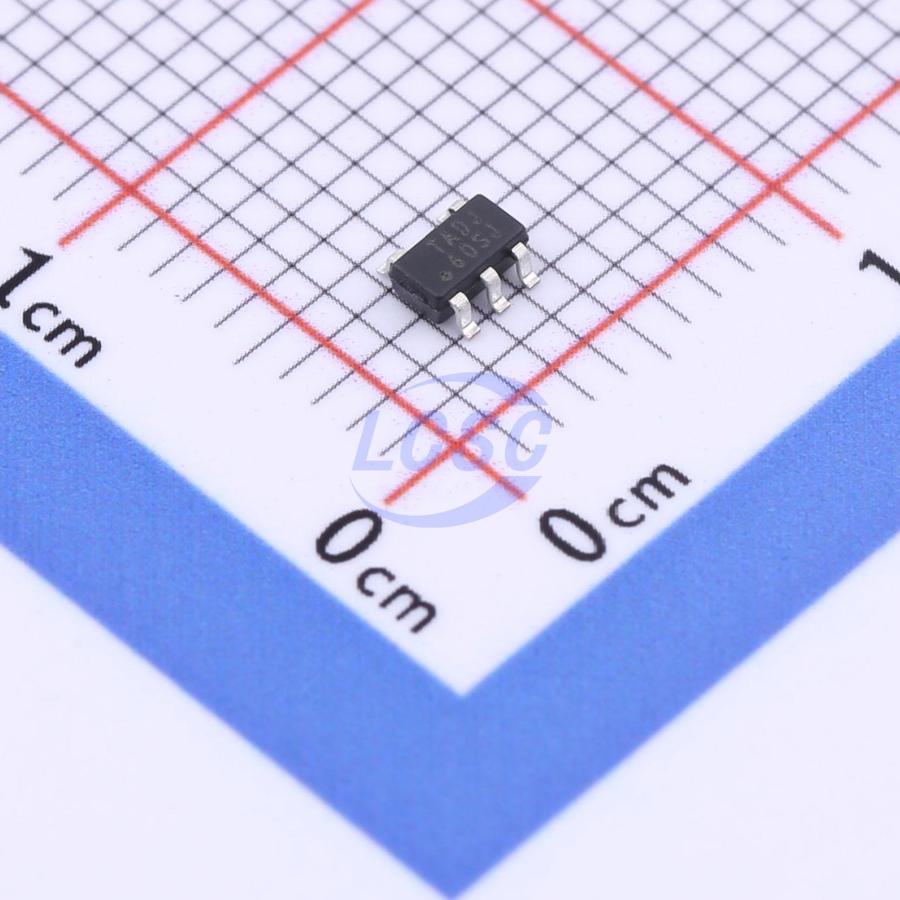

800mV~5V Positive Adjustable SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5LROHS CompliantActive

High speed,Low dropout,High output accuracy,Adjustable Output&Fixed Output

Manufacturer: JingYang
Manufacturer part #: JY1105-ADJBX
Store part #: C3038107
Package / case: SOT-23-5L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,060 in stock

#C3038107

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.06	₹70.30
50+	₹11.50	₹575.00
150+	₹10.22	₹1,533.00
500+	₹9.26	₹4,630.00
3,000+	₹6.68	₹20,040.00
6,000+	₹6.29	₹37,740.00

Quantity (min 5, multiples of 5)

5 × ₹14.06

₹70.30

excl. GST

₹82.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

JY1105-ADJBX

₹70.30 for 5 + GST

Specifications

Output Voltage: 800mV~5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 60uA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 500mA
Output Type: Adjustable
Features: Enable control;Output discharge;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

JY1105 series are CMOS positive voltage linear regulators with low current consumption, high accuracy output, output high speed, low dropout voltage and 500mA (Maximum) output. High accuracy output voltage ± 1.5% is realized by using laser trimming technology. The charged output capacitor can be discharged with an internal switch by making EN=VSS, as a result Vout quickly returns to the Vss level. JY1105 have both Thermal Shutdown, and Current limit to prevent device damage under the worst of operating conditions. Low ESR capacitors are available for input and output capacitor. Adjustable output voltage version JY1105AF and Fixed output voltage version JY1105NF are available.

Applications

Battery powered devices
Portable games
Cellular phone
Handheld instruments
Digital / Video cameras

Key features

Fixed output voltage version 0.8V~5.0V (selectable with a step of 0.05V)
Adjustable output voltage version ADJ Reference Voltage = 0.6V ± 1.2%, (Available Vout=0.8V~5.0V) Operating input voltage 1.7V~6.0V
High accuracy output voltage ± 1.5% (1.35V ≤ Vout), ±20mV (Vout < 1.35V) at +25°C
Maximum output current 500mA
Low dropout voltage Typ. 220mV (output = 3.0V, Iout=300mA)
Low quiescent current Typ. 60μA
High ripple rejection Typ. 75dB at 1KHz
Low ESR output capacitor 1.0 μF (1.2V ≤ Vout), 3.3μF(Vout < 1.2V)
Low ESR input capacitor 1.0 μF
Operating temperature range – -40°C to +85°C
Built-in over-current protector Limit current : 600mA (Typical)
Built-in thermal shutdown circuit
COUT high-speed auto-discharge
Built-in On/Off circuit (EN)
