JingYangDatasheet (PDF)

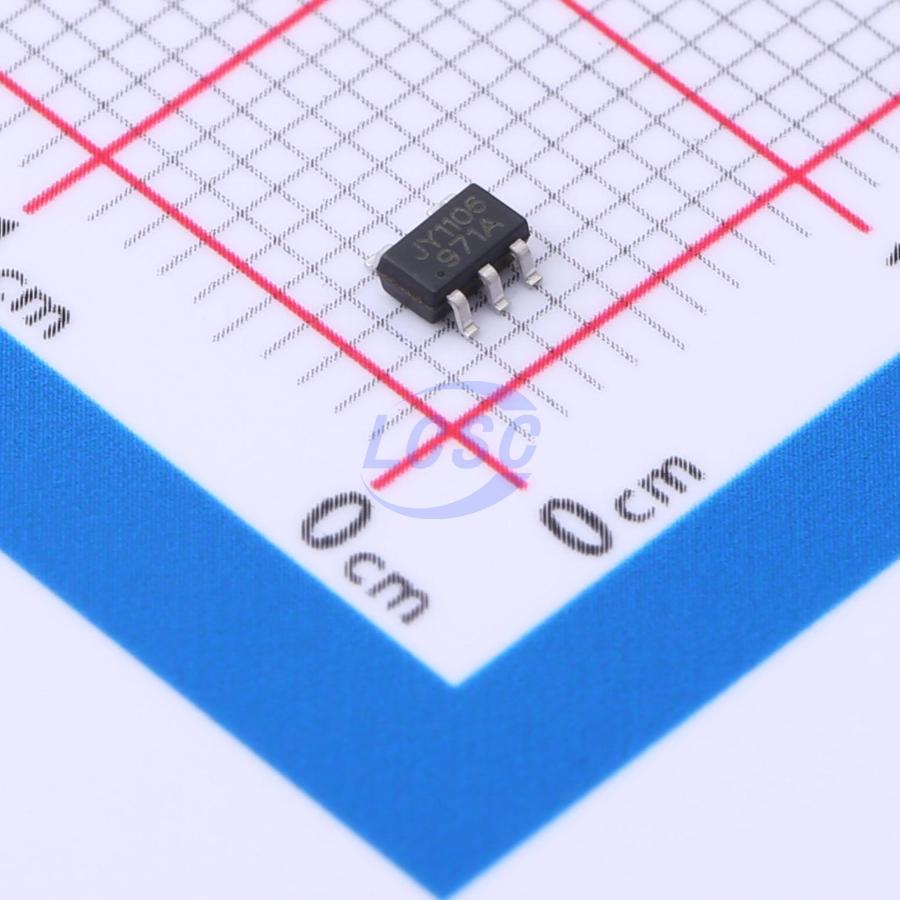

JY1106-ADJBX
800mV~4.5V Positive Adjustable SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
600mA CMOS LDO
- Manufacturer
- JingYang
- Manufacturer part #
- JY1106-ADJBX
- Store part #
- C3038109
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,600 in stock
#C3038109
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.35 | ₹81.75 |
| 50+ | ₹12.93 | ₹646.50 |
| 150+ | ₹11.22 | ₹1,683.00 |
| 500+ | ₹9.94 | ₹4,970.00 |
| 3,000+ | ₹8.90 | ₹26,700.00 |
| 6,000+ | ₹8.39 | ₹50,340.00 |
5 × ₹16.35
₹81.75
excl. GST
₹96.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JY1106-ADJBX
₹81.75 for 5 + GST
Specifications
- Output Voltage
- 800mV~4.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Adjustable
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The JY1106 is a low dropout linear regulator (LDO) family with 600mA output current. The output voltage can be fixed or adjustable, and are stable with 1.ouF or higher value ceramic capacitors. The JY1106 family provides several protections, such as over current protection (OCP), short circuit protection (SCP) and over temperature protection (OTP) to protect themselves from fault application conditions. This family of LDOs have many different packages and pin assignments. The users can refer the ordering information of this datasheet to choice the most suitable LDOs for their applications.
Applications
- Portable Electronics
- Wireless Applications
- Battery Power Devices
Key features
- Operating Input Voltage: 2.2V~5.5V
- Has Fixed Output Voltage (Fixed-VOUT) And Adjustable Output Voltage (Adj-Vout) Options
- Output current is up to 600 mA
- Built-in Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP)
- Package: SOT223-3L, SOT23-5L, SOP-8L and WDFN2020-6L Packages
