JingYangDatasheet (PDF)

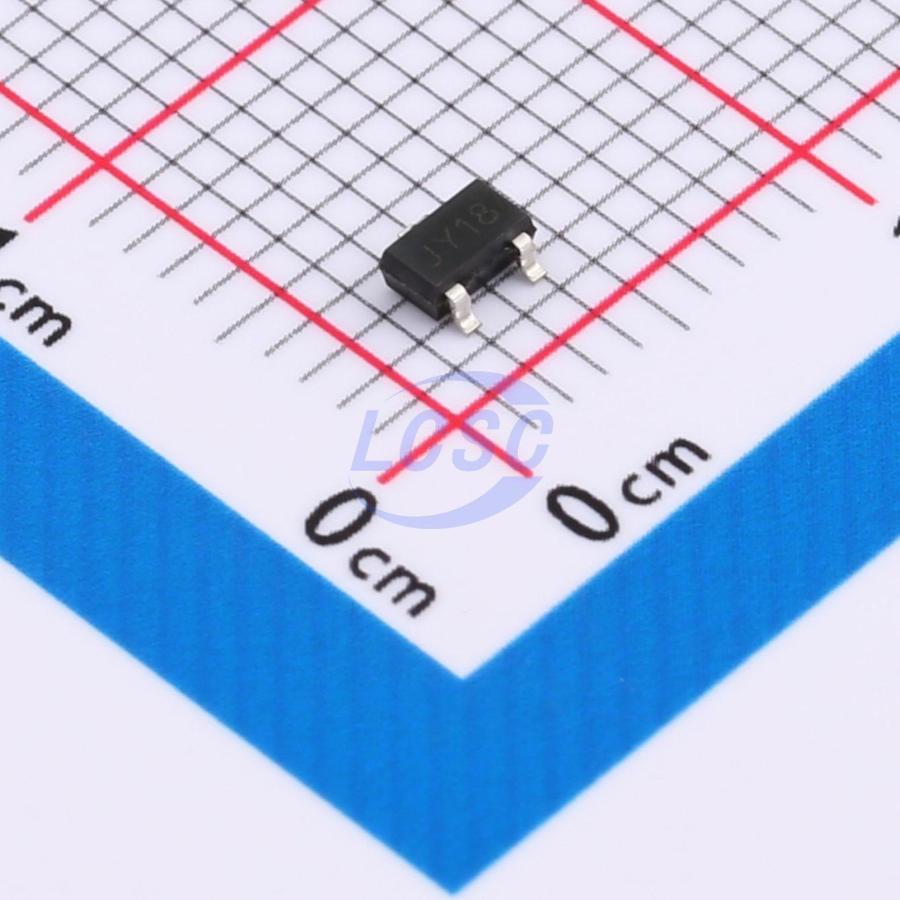

JY1107-1.8X
Linear Voltage Regulator IC Positive Fixed 1 Output 700mA SOT-23
SOT-23ROHS CompliantActive
700mA LDO voltage regulator circuit
- Manufacturer
- JingYang
- Manufacturer part #
- JY1107-1.8X
- Store part #
- C5364060
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,230 in stock
#C5364060
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.96 | ₹59.80 |
| 50+ | ₹9.63 | ₹481.50 |
| 150+ | ₹8.47 | ₹1,270.50 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 3,000+ | ₹6.91 | ₹20,730.00 |
| 6,000+ | ₹6.56 | ₹39,360.00 |
5 × ₹11.96
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JY1107-1.8X
₹59.80 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 700mA
- Operating Voltage
- 15V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
JY1107 is a positive low-dropout regulator with a 1V dropout voltage at 700mA. The JY1107 is available in both fixed and adjustable versions, with output voltages of: 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, and 5.0V. An on-chip thermal shutdown circuit provides overload and over-temperature protection against excessive junction temperatures caused by ambient conditions. To ensure stability of the JY1107, the adjustable version requires a minimum 22μF tantalum capacitor on the output. For fixed voltage versions, a smaller capacitor may be used, depending on the specific application. In general, the stability of a linear regulator decreases as output current increases.
Applications
- Laptops, PDAs, and notebook computers
- Battery chargers
- SCSI-II active terminators
- Mobile phones
- Cordless phones
- Battery-powered systems
- Portable devices
- SMPS post regulators
Key features
- Fixed output voltages: 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, 5.0V, and adjustable version with 1% accuracy; 2% accuracy for 1.2V fixed output
- Low dropout voltage: only 1V at 700mA output current
- Current limiting
- Thermal shutdown
- Temperature range: -40℃~125℃
