JingYangDatasheet (PDF)

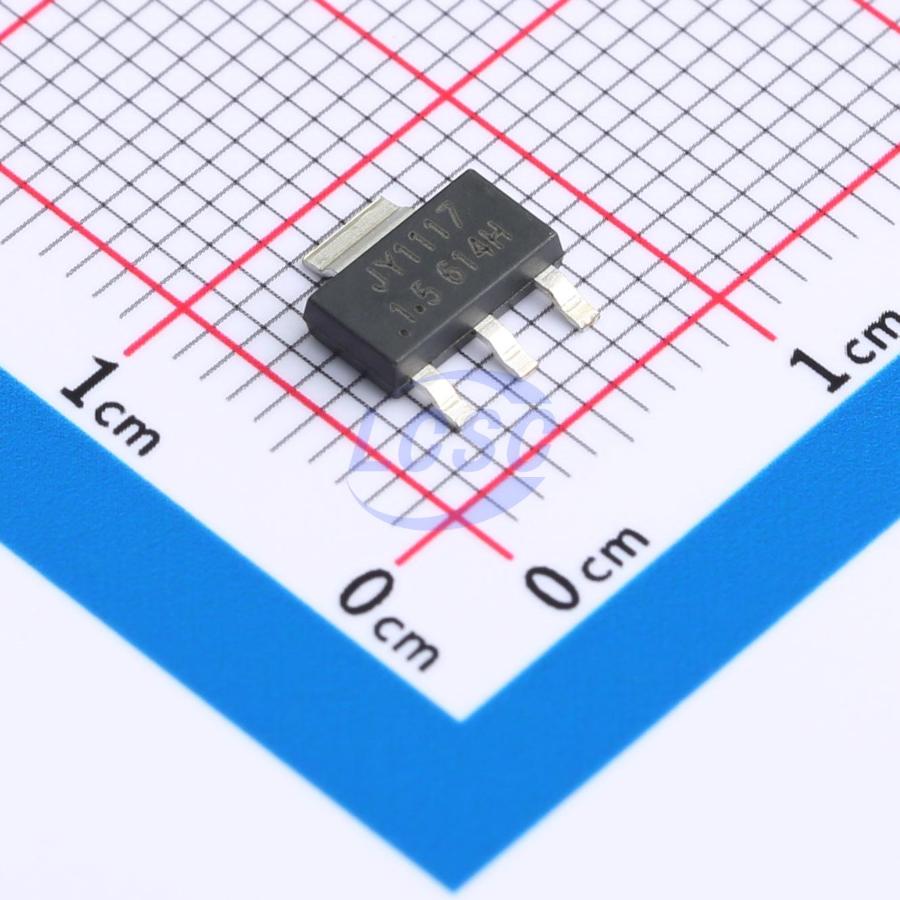

JY1117E15AX
1.5V Positive Fixed SOT223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT223-3LROHS CompliantActive
1A Low Dropout Linear Regulator
- Manufacturer
- JingYang
- Manufacturer part #
- JY1117E15AX
- Store part #
- C5380421
- Package / case
- SOT223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,695 in stock
#C5380421
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.18 | ₹70.90 |
| 50+ | ₹11.26 | ₹563.00 |
| 150+ | ₹9.80 | ₹1,470.00 |
| 500+ | ₹8.72 | ₹4,360.00 |
| 3,000+ | ₹7.85 | ₹23,550.00 |
| 6,000+ | ₹7.40 | ₹44,400.00 |
5 × ₹14.18
₹70.90
excl. GST
₹83.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JY1117E15AX
₹70.90 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.248 g
Overview
JY1117 is a low dropout positive adjustable or fixed - mode regulator with minimum of 1A output current capability. The product is specifically designed to provide well - regulated supply for low voltage IC applications such as high - speed bus termination and low current 3.3V logic supply. JY1117 is also well suited for other applications such as VGA cards. JY1117 is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well - regulated outputs of 1.25 to 5.0 with +1.4 to 12V input supply VOLTAGE.
Key features
- 1.4V maximum dropout at full load current
- Fast transient response
- Output current limiting
- Built - in thermal shutdown
- Good noise rejection
- MLCC Capacitors are available.
- 3 - Terminal Adjustable or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
- Green (RoHS)
- Packages: SOT223, TO252 and SOT89.
