JingYangDatasheet (PDF)

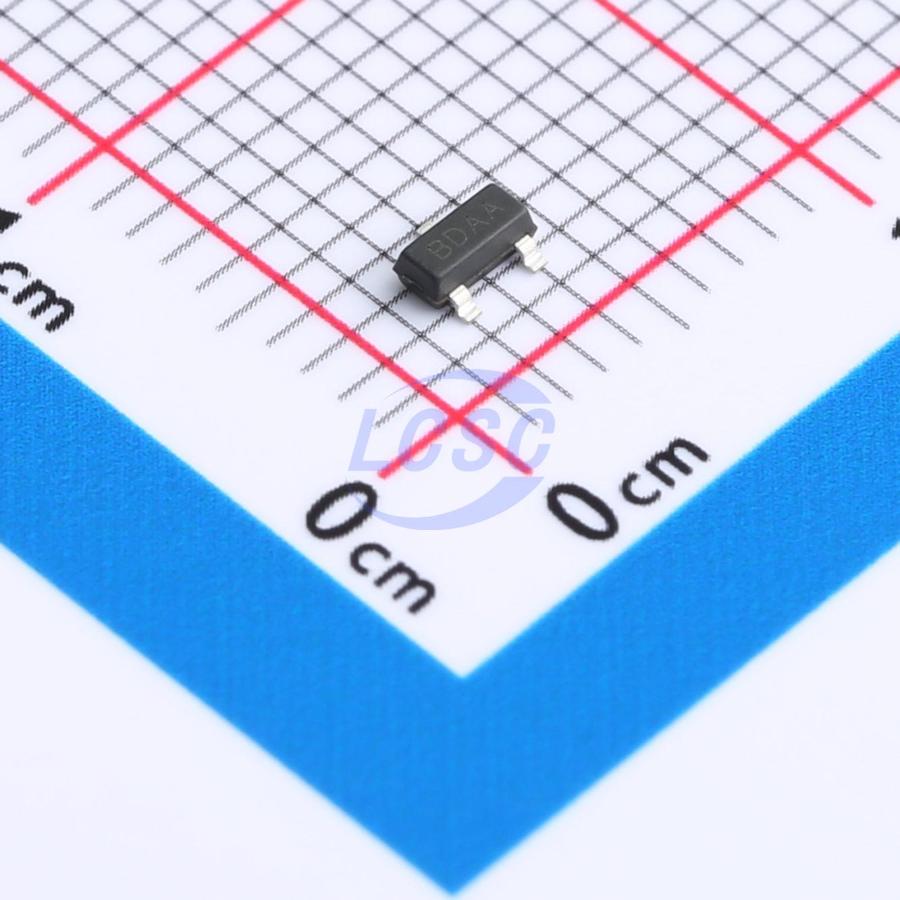

JY803-293NRX
200ms 1.2V~7.5V SOT-23 Supervisors RoHS
SOT-23ROHS CompliantActive
Power Supply Supervisor
- Manufacturer
- JingYang
- Manufacturer part #
- JY803-293NRX
- Store part #
- C5364059
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C5364059
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.09 | ₹100.90 |
| 100+ | ₹8.02 | ₹802.00 |
| 300+ | ₹6.99 | ₹2,097.00 |
| 3,000+ | ₹6.20 | ₹18,600.00 |
| 6,000+ | ₹5.58 | ₹33,480.00 |
| 9,000+ | ₹5.27 | ₹47,430.00 |
10 × ₹10.09
₹100.90
excl. GST
₹119.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JY803-293NRX
₹100.90 for 10 + GST
Specifications
- Reset Timeout
- 200ms
- output type
- Open-drain
- Operating Temperature
- -30℃~+80℃
- standby current
- 1.8uA
- Voltage - Supply
- 1.2V~7.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The JY803 series are highly accurate, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. A delay circuit is built-in to each detectors. Detect voltage is extremely accurate with minimal temperature drift. N-ch open drain output configurations is available. Since the delay circuit is built-in, peripherals are unnecessary and high density mounting is possible.
Applications
- Microprocessor reset circuitry
- System battery life and charge voltage monitors
- Memory battery back - up circuits
- Delay circuitry
- Power on reset circuits
- Power failure detection
Key features
- Low power consumption
- High input voltage (up to 8V)
- Low temperature coefficient
- Output voltage accuracy: tolerance ±2%
- Built-in delay circuit: 200ms
- SOT23, SOT23 - 3 and SOT89 package
