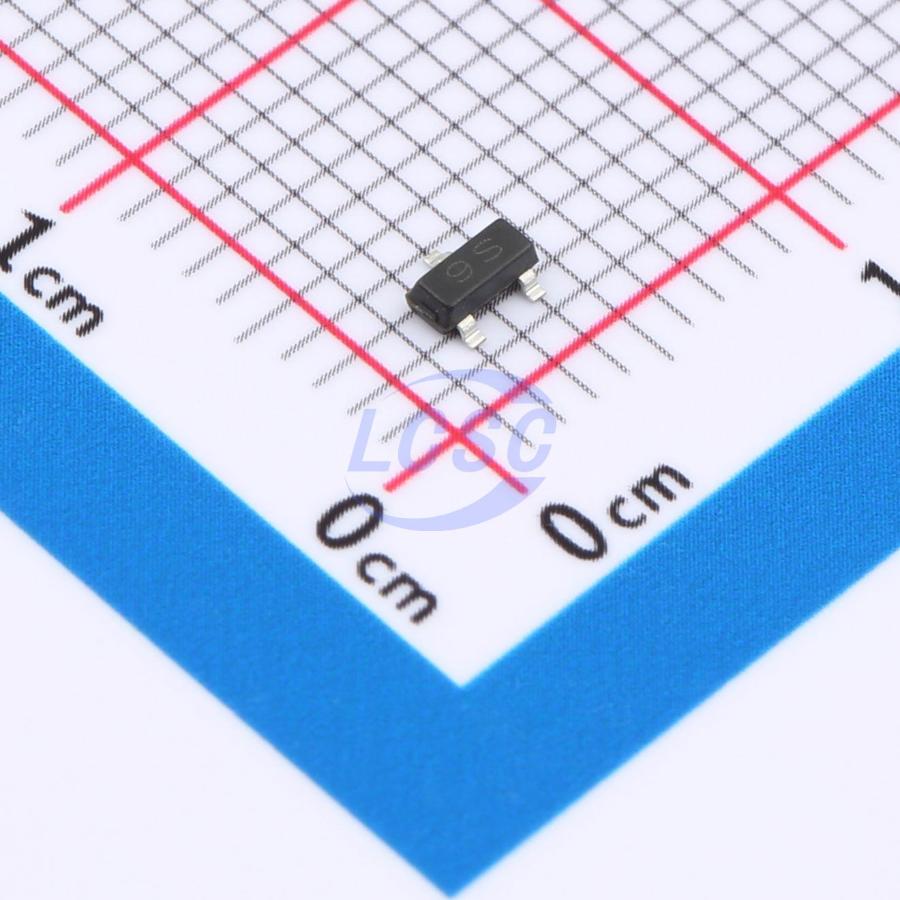

JY809ES3-SX
250ms Active Low 1.1V~5.5V 1 SOT-23 Supervisors RoHS
3-Pin Microprocessor Reset Circuits
- Manufacturer
- JingYang
- Manufacturer part #
- JY809ES3-SX
- Store part #
- C5364058
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,200 in stock
#C5364058
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.88 | ₹98.80 |
| 100+ | ₹7.82 | ₹782.00 |
| 300+ | ₹6.79 | ₹2,037.00 |
| 3,000+ | ₹6.01 | ₹18,030.00 |
| 6,000+ | ₹5.38 | ₹32,280.00 |
| 9,000+ | ₹5.08 | ₹45,720.00 |
10 × ₹9.88
₹98.80
excl. GST
₹116.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
JY809ES3-SX
₹98.80 for 10 + GST
Specifications
- Reset Timeout
- 250ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- Voltage - Supply
- 1.1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The JY809 microprocessor supervisory circuit can be used to monitor the power supplies in microprocessor and digital systems. It provides a reset to the microprocessor during power-up, power-down, and brown-out conditions. The function of the JY809 is to monitor the VCC supply voltage, and assert a reset signal whenever this voltage declines below the factory-programmed reset threshold. The reset signal remains asserted for 250ms after VCC rises above the threshold. The JY809 has an active-low RESET output. With a low supply current of only 2μA (Typ.), the JY809 are ideal for use in portable equipment. The JY809 is available in the 3-pin SOT23 package.
Applications
- Microprocessor Systems
- Computers
- Lead-free Controllers
- Intelligent Instruments
- Portable/Battery-Powered Equipment
- Automotive
Key features
- Precise monitoring of 2.7V, 3.0V, 3.3V and 5.0V supplies
- 140ms min. Power-On Reset pulse width, 250ms typical, has an active-low RESET Output
- Guaranteed RESET Output valid for VCC 1.1 V
- Low Supply Current, 2μA Typ.
- Available in small SOT23 package
- No external components needed
- Specified over full temperature range -40°C to +105°C
