VBsemi ElecDatasheet (PDF)

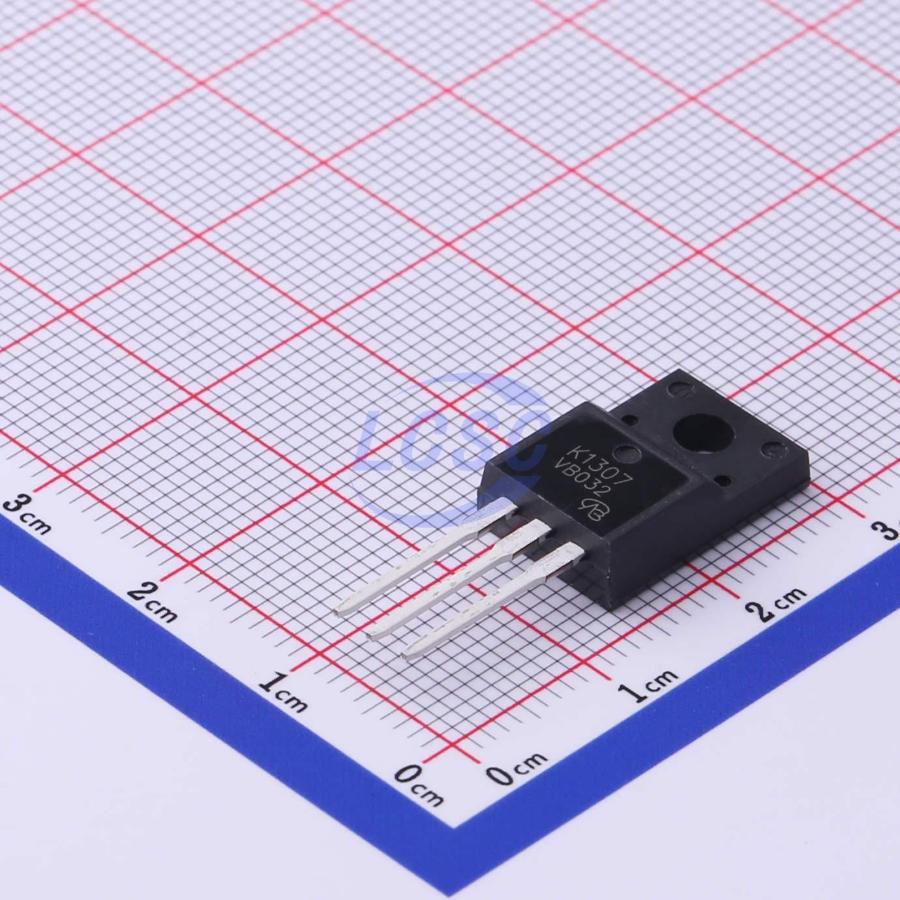

K1307-VB
48W 100V 18A 86mΩ@10V 1 N-channel N-Channel TO-220F-3 Single FETs, MOSFETs
TO-220F-3RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- K1307-VB
- Store part #
- C725103
- Package / case
- TO-220F-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C725103
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.31 | ₹119.31 |
| 10+ | ₹99.93 | ₹999.30 |
| 50+ | ₹74.46 | ₹3,723.00 |
| 100+ | ₹64.88 | ₹6,488.00 |
| 500+ | ₹59.22 | ₹29,610.00 |
| 1,000+ | ₹56.17 | ₹56,170.00 |
1 × ₹119.31
₹119.31
excl. GST
₹140.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
K1307-VB
₹119.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 560pF
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 48W
- Configuration
- Standalone
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 18A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 86mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.3 g
Overview
Key features
- Isolated package
- High-voltage isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Drain-to-pin creepage distance = 4.8 mm
- Operating temperature up to 175 °C
- Dynamic dV/dt rating
- Low thermal resistance
- Lead-free (Pb-free) version available
- RoHS compliant
