HANSCHIP semiconductorDatasheet (PDF)

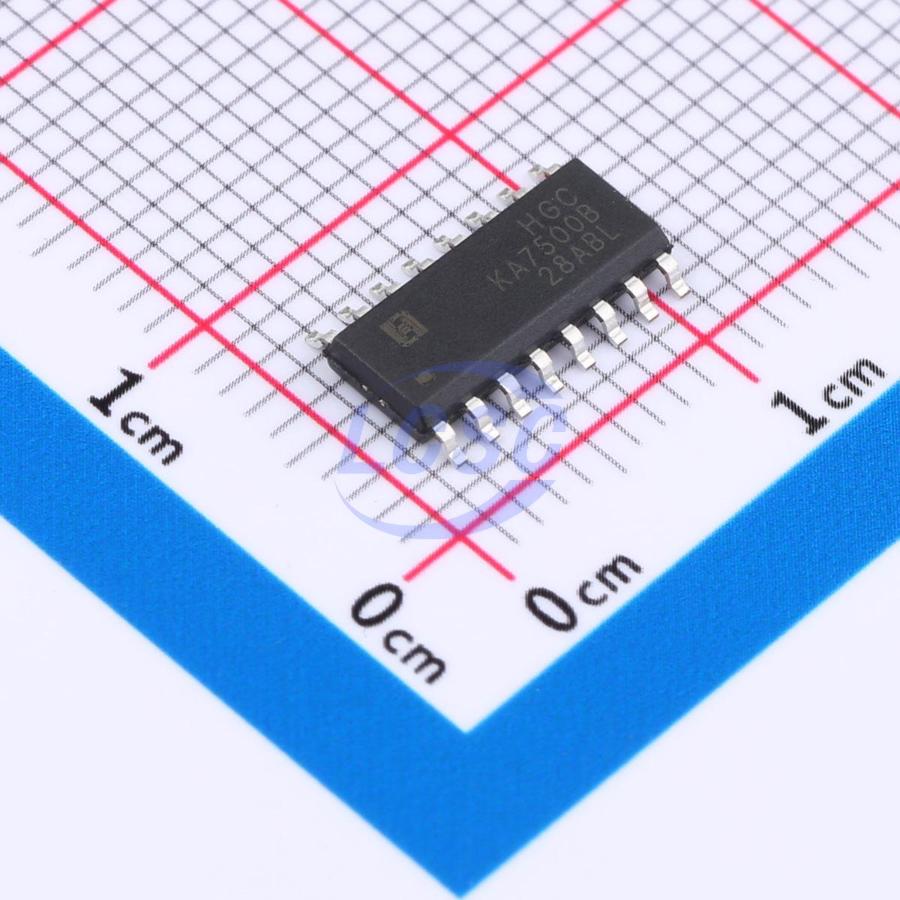

KA7500BDRG
600mA 10kHz 1000mW SOP-16 AC DC Converters, Offline Switchers RoHS
SOP-16ROHS CompliantActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- KA7500BDRG
- Store part #
- C5145346
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,985 in stock
#C5145346
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.49 | ₹97.45 |
| 50+ | ₹15.48 | ₹774.00 |
| 150+ | ₹13.47 | ₹2,020.50 |
| 500+ | ₹11.96 | ₹5,980.00 |
| 2,500+ | ₹10.24 | ₹25,600.00 |
| 5,000+ | ₹9.64 | ₹48,200.00 |
5 × ₹19.49
₹97.45
excl. GST
₹114.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
KA7500BDRG
₹97.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 600mA
- Frequency - Switching
- 10kHz
- Pd - Power Dissipation
- 1000mW
- Topology
- Forward;Half-Bridge;Full-Bridge
- Duty Cycle(Max)
- 47%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
KA7500B is a PWM switching regulator controller IC. It integrates a 5V reference voltage source, oscillator, error amplifier, comparator, flip-flop, output control circuit, output transistors, and dead-time comparator. The operating mode of the output transistors can be selected via the output control circuit, supporting either push-pull or single-ended operation.
Applications
- PC power supply
- Inverter power supply
- Single-ended forward dual-switch power supply
- Half-bridge switching power supply
- Full-bridge switching power supply
Key features
- Output current: I₀ = 500 mA
- Operating frequency: f = 80 Hz ~ 300 kHz
- Dual built-in matched error amplifiers
- Built-in 5V reference voltage source
- Selectable output mode
