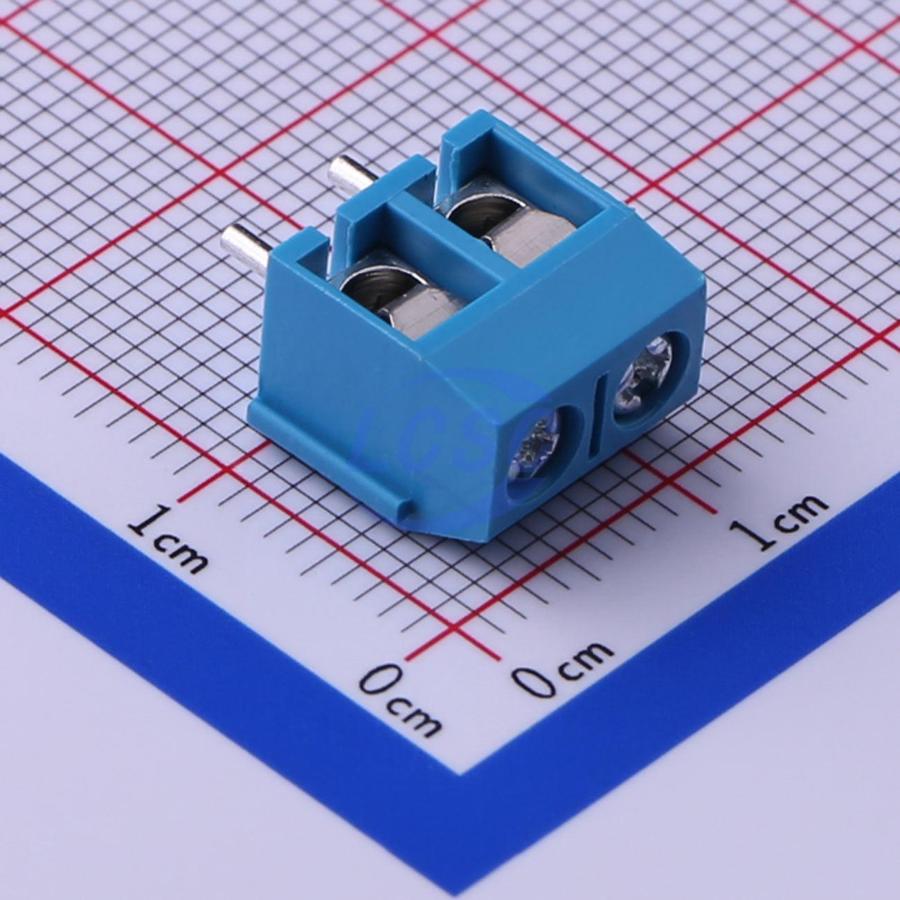

KF301-5.0-2P Cixi Kefa Elec
Cixi Kefa Elec

KF301-5.0-2P

2 Position Wire to Board Terminal Block Through Hole 5mm

PopularThrough Hole,P=5mmROHS CompliantActive

TERM BLK 2POS 5mm TH

Manufacturer
Cixi Kefa Elec
Manufacturer part #
KF301-5.0-2P
Store part #
C474881
Package / case
Through Hole,P=5mm
Category
Wire to Board
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

75,325 in stock

#C474881

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹13.48₹67.40
50+₹11.11₹555.50
150+₹9.90₹1,485.00
1,000+₹8.33₹8,330.00
2,000+₹7.98₹15,960.00
5,000+₹7.74₹38,700.00

5 × ₹13.48

₹67.40

excl. GST

₹79.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 1,000 per bag

KF301-5.0-2P

₹67.40 for 5 + GST

Specifications

Wire Gauge - mm2
1.5
Number of Positions or Pins
1x2P
Number of Pins
2P
Screw Specification
M2.5
Pitch
5mm
Operating Temperature
-30℃~+120℃
Current Rating
17A
Voltage Rating (Max)
250V
Height Above Board
10mm
Color
Blue
Wire Gauge - AWG
14~22
Mounting Type
Through Hole
Number of PINs Per Row
2
Number of Rows
1

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
1,000 / Bag
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
1.59 g

Alternatives

Similar parts — check the datasheet before substituting.

KF126-5.0-2P#C474900Cixi Kefa Elec · Through Hole,P=5mm₹16.95 · 6,885 in stockView
KF127-5.0-2P#C474904Cixi Kefa Elec · Through Hole,P=5mm₹15.52 · 5,465 in stockView

Questions about KF301-5.0-2P

What Are the Typical Application Scenarios for This Component?

This 2-position, 5mm pitch screw terminal block is commonly used in wire-to-board applications where a secure, semi-permanent electrical connection is needed, such as in power supplies, industrial control boards, prototyping shields, and various DIY electronics projects.

What Mounting Method Should Be Used Through the Installation Process?

This terminal block features a standard 5mm pitch and is designed exclusively for Through Hole mounting on a printed circuit board (PCB), allowing you to insert the pins into the board and solder them firmly in place for maximum mechanical stability.

What Are the Maximum Current and Voltage Ratings for This Device?

According to the technical specifications, this component is rated for a maximum operating current of 17A and a maximum voltage rating of 250V, with a working temperature range spanning from -30°C to +120°C.

How Can I Find Alternative or Replacement Terminal Blocks on the Site?

You can explore direct replacements or alternative options by clicking on the "Show similar products" link on the product page, which filters through thousands of similar wire-to-board terminal blocks based on your preferred specifications.

What Wire Gauges Are Compatible With This Terminal Block?

The Cixi Kefa Elec KF301-5.0-2P is compatible with wire sizes ranging from 14 AWG to 22 AWG (or a cross-sectional area of up to 1.5 mm²).
