STDatasheet (PDF)

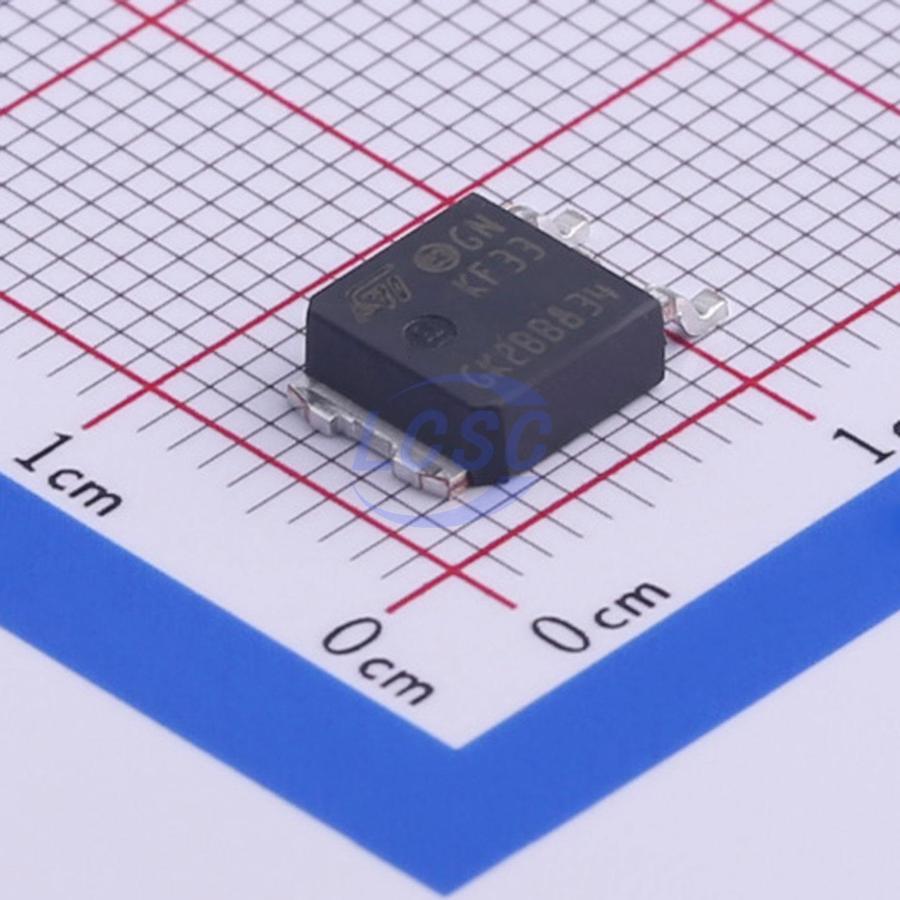

KF33BDT-TR
3.3V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Very Low Drop Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- KF33BDT-TR
- Store part #
- C283274
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,428 in stock
#C283274
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.81 | ₹92.81 |
| 10+ | ₹78.28 | ₹782.80 |
| 30+ | ₹70.90 | ₹2,127.00 |
| 100+ | ₹63.76 | ₹6,376.00 |
| 500+ | ₹59.42 | ₹29,710.00 |
| 1,000+ | ₹57.25 | ₹57,250.00 |
1 × ₹92.81
₹92.81
excl. GST
₹109.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
KF33BDT-TR
₹92.81 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 20V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
The KF series are very low dropout voltage regulators available in SOT-89 and DIP packages and in a wide range of output voltages. The very low dropout voltage (0.4 V) and the very low quiescent current make them particularly suitable for low-noise, low power applications and especially in battery powered systems. A shutdown logic control function is available (pin 5, TTL compatible). This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing total power consumption.
Applications
- Low-noise, low-power applications
- Battery-powered systems
- Local regulators (can put portions of the board into standby to reduce power consumption)
Key features
- Very low quiescent current: 50 μA
- Output current up to 500 mA
- Logic controlled electronic switch
- 2.2 μF output capacitor recommended for stability
- ±2% output voltage accuracy at 25°C
