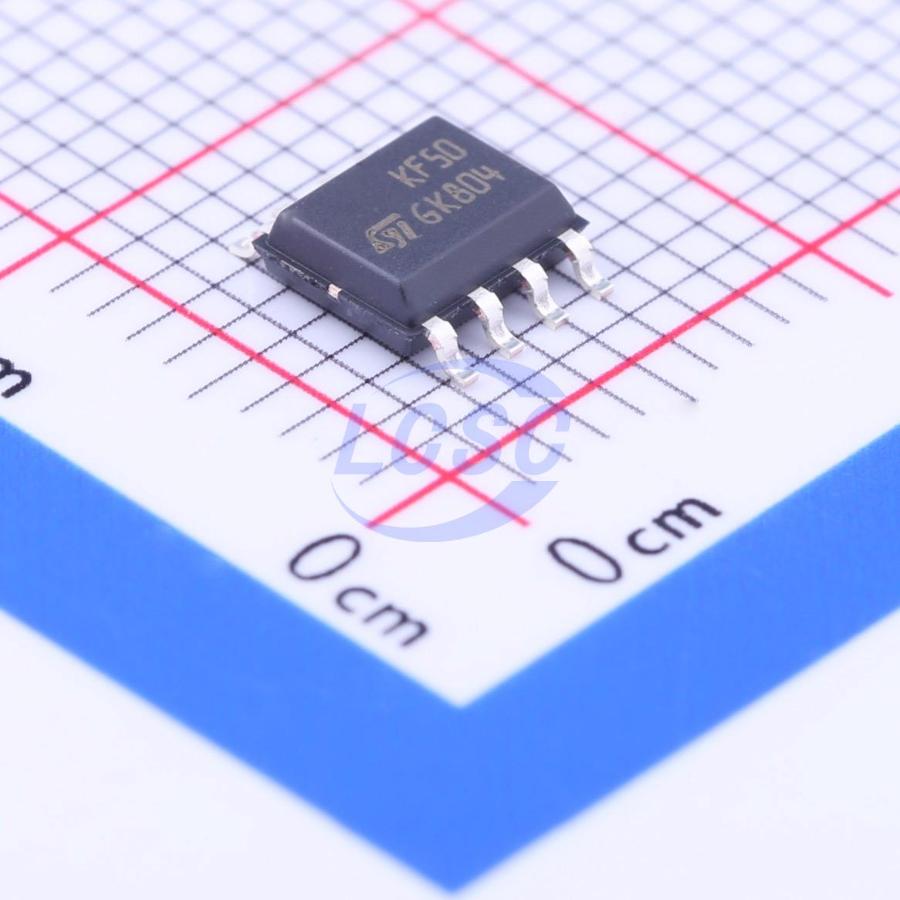

KF50BD-TR
5V Positive Fixed SOIC-8-150mil Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8-150milROHS3 CompliantActive
Very Low Drop Voltage Regulators
- Manufacturer
- ST
- Manufacturer part #
- KF50BD-TR
- Store part #
- C222151
- Package / case
- SOIC-8-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,739 in stock
#C222151
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.68 | ₹146.68 |
| 10+ | ₹123.21 | ₹1,232.10 |
| 30+ | ₹111.48 | ₹3,344.40 |
| 100+ | ₹99.97 | ₹9,997.00 |
| 500+ | ₹84.75 | ₹42,375.00 |
| 1,000+ | ₹81.27 | ₹81,270.00 |
1 × ₹146.68
₹146.68
excl. GST
₹173.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
KF50BD-TR
₹146.68 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 20V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The KF series are very low dropout voltage regulators available in SOT-89 and DIP packages and in a wide range of output voltages. The very low dropout voltage (0.4 V) and the very low quiescent current make them particularly suitable for low-noise, low power applications and especially in battery powered systems. A shutdown logic control function is available (pin 5, TTL compatible). This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing total power consumption.
Applications
- Low-noise, low-power applications
- Battery-powered systems
- Local regulators (can put portions of the board into standby to reduce power consumption)
Key features
- Very low quiescent current: 50 μA
- Output current up to 500 mA
- Logic controlled electronic switch
- 2.2 μF output capacitor recommended for stability
- ±2% output voltage accuracy at 25°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MC33269M-5.0/TR#C46614071HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,990 | ₹18.69 · 1,990 in stock | View | |
 | LM1117M-5.0/TR#C498326HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,250 | ₹12.86 · 2,250 in stock | View |
 | MIC39101-5.0YM#C148027MICROCHIP · SO-8 | MICROCHIP | SO-8 | 12 | ₹587.41 · 12 in stock | View |
 | LM39101D-5.0#C24496615HTC · SOP-8 | HTC | SOP-8 | 1 | ₹36.85 · 1 in stock | View |
| MIC39101M-5.0/TR#C19193476HGSEMI · SOP-8 | HGSEMI | SOP-8 | On request | Price on request | Quote | |
