STDatasheet (PDF)

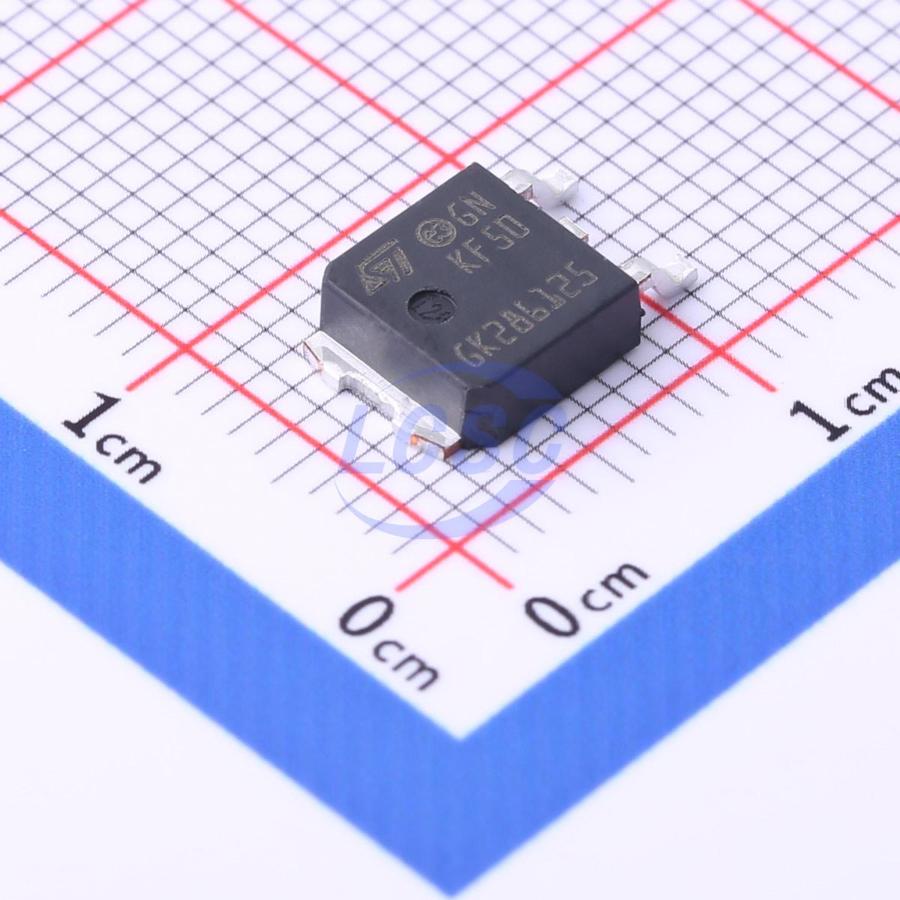

KF50BDT-TR
5V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Very low drop voltage regulators with inhibit
- Manufacturer
- ST
- Manufacturer part #
- KF50BDT-TR
- Store part #
- C157426
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,720 in stock
#C157426
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.57 | ₹110.57 |
| 10+ | ₹93.41 | ₹934.10 |
| 30+ | ₹84.92 | ₹2,547.60 |
| 100+ | ₹76.43 | ₹7,643.00 |
| 500+ | ₹71.37 | ₹35,685.00 |
| 1,000+ | ₹68.66 | ₹68,660.00 |
1 × ₹110.57
₹110.57
excl. GST
₹130.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
KF50BDT-TR
₹110.57 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
The KF series are very low drop regulators available in SO - 8 and DPAK packages and in a wide range of output voltages. The very low dropout voltage (0.4 V) and the very low quiescent current make them particularly suitable for low noise, low power applications and especially in battery powered systems. A shutdown logic control function is available (pin 5, TTL compatible). This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. It requires only a 2.2 μF capacitor for stability allowing space and cost saving.
Key features
- Very low dropout voltage (0.4 V)
- Very low quiescent current (typ. 50 μA in OFF mode, 500 μA in ON mode)
- Output current up to 500 mA
- Logic - controlled electronic shutdown
- Output voltages of 2.5; 3.3; 5; 8 V
- Internal current and thermal limit
- Only 2.2 μF for stability
- Available in ± 2 % accuracy at 25 °C
- Supply voltage rejection: 70 db (typ.)
- Temperature range: - 40 to 125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LF50CDT-TRY#C2971144ST · DPAK | ST | DPAK | 4 | ₹258.46 · 4 in stock | View |
 | LF50CDT-TR#C435902ST · DPAK | ST | DPAK | 494 | ₹88.86 · 494 in stock | View |
| MG78M05W3#C50407965Megain · TO-252 | Megain | TO-252 | 1,570 | ₹7.25 · 1,570 in stock | View | |
 | 78M05#C111265Shikues · TO-252-2(DPAK) | Shikues | TO-252-2(DPAK) | 9,110 | ₹12.64 · 9,110 in stock | View |
| LM78M05CDT/NOPB#C352862TI · TO-252 | TI | TO-252 | 33 | ₹153.23 · 33 in stock | View | |
