KECDatasheet (PDF)

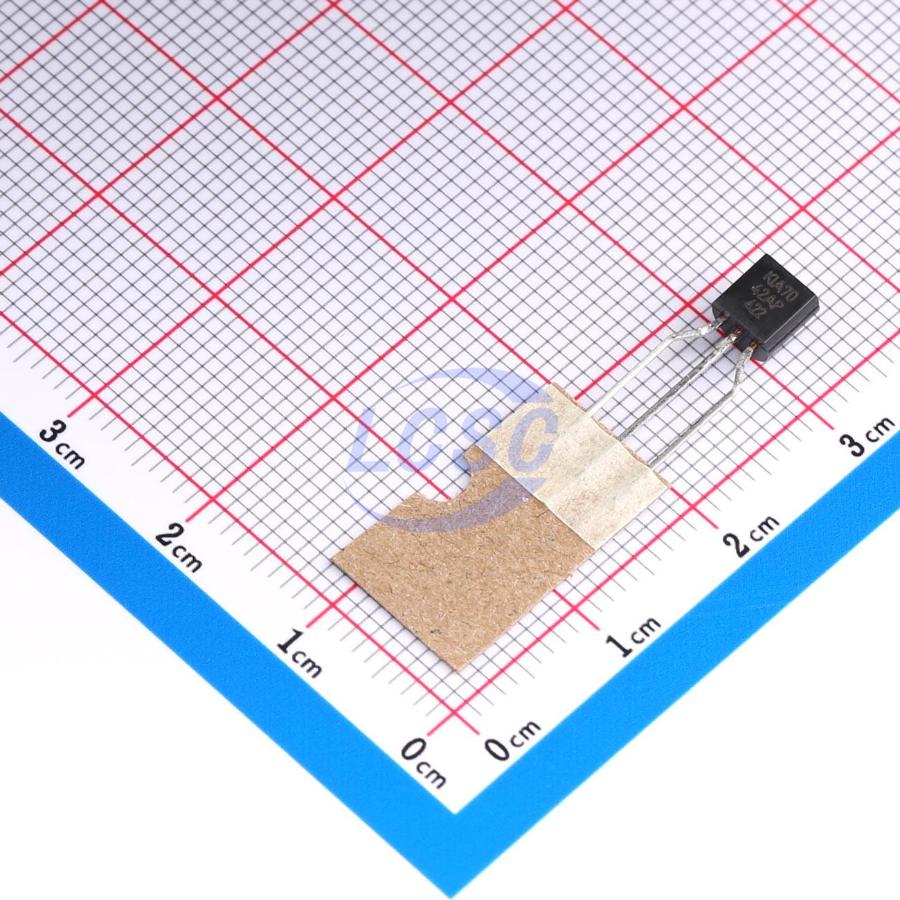

KIA7042AP-AT/P
1 TO-92-2.54mm Supervisors RoHS
TO-92-2.54mmROHS CompliantActive
BIPOLAR LINEAR INTEGRATED CIRCUIT VOLTAGE DETECTOR
- Manufacturer
- KEC
- Manufacturer part #
- KIA7042AP-AT/P
- Store part #
- C112752
- Package / case
- TO-92-2.54mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,005 in stock
#C112752
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.96 | ₹69.80 |
| 50+ | ₹11.13 | ₹556.50 |
| 150+ | ₹9.71 | ₹1,456.50 |
| 500+ | ₹8.64 | ₹4,320.00 |
| 2,000+ | ₹6.89 | ₹13,780.00 |
| 4,000+ | ₹6.47 | ₹25,880.00 |
5 × ₹13.96
₹69.80
excl. GST
₹82.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
KIA7042AP-AT/P
₹69.80 for 5 + GST
Specifications
- Operating Temperature
- -30℃~+85℃
- standby current
- 30uA
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.2V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.302 g
Overview
Function of this IC is accurately resetting the system after detecting voltage at the time of switching power on and instantaneous power off in various CPU systems and other logic systems.
Applications
- As Control Circuit of Battery - Backed Memory.
- As Measure Against Erroneous Operations at Power ON - OFF.
- As Measure Against System Runaway at Instantaneous Break of Power Supply etc.
- As Resetting Function for the CPU - Mounted Equipment, such as Personal Computers, Printers, VTRs and so forth.
Key features
- Current Consumption is Low. ICCL = 300μA Typ. ICCH = 30μA Typ.
- Resetting Output Minimum Guarantee Voltage is Low 0.8V Typ.
- Hysteresis Voltage is Provided. 50mV Typ.
- Reset Signal Generation Starting Voltages: KIA7019 1.9V Typ. KIA7033 3.3V Typ. KIA7021 2.1V Typ. KIA7034 3.4V Typ. KIA7023 2.3V Typ. KIA7035 3.5V Typ. KIA7025 2.5V Typ. KIA7036 3.6V Typ. KIA7027 2.7V Typ. KIA7039 3.9V Typ. KIA7029 2.9V Typ. KIA7042 4.2V Typ. KIA7031 3.1V Typ. KIA7045 4.5V Typ. KIA7032 3.2V Typ.
- Taping Type is also Available.
- Qualified to AEC - Q100.
