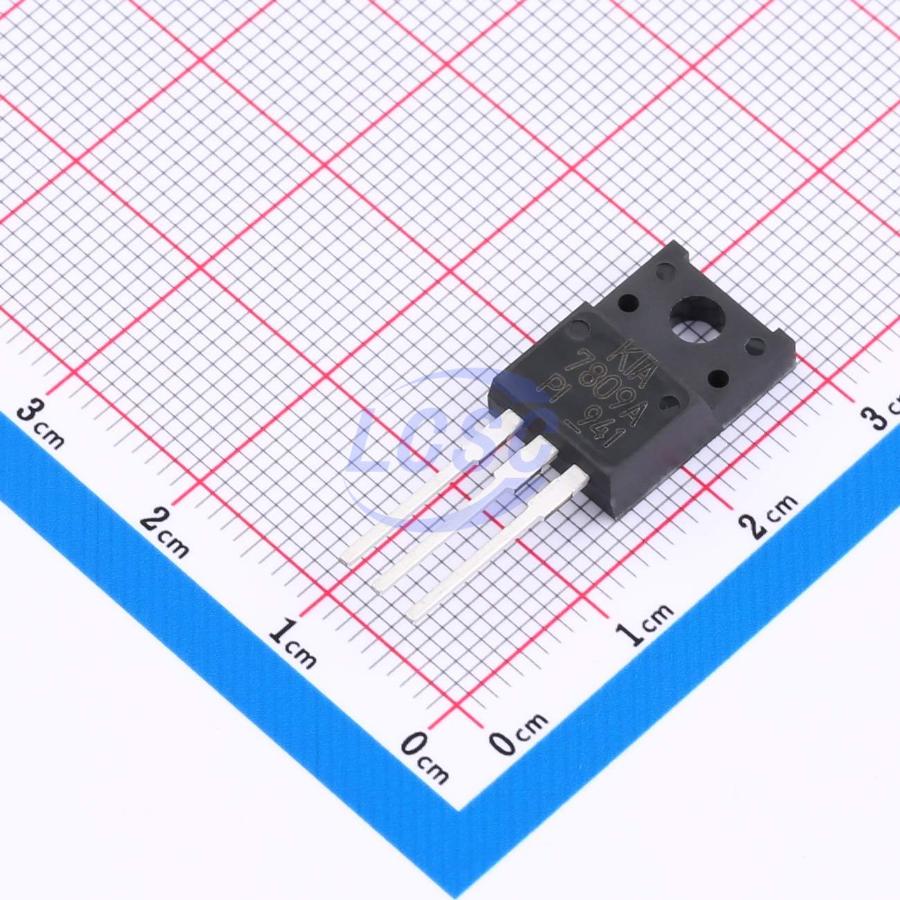

KIA7809API-U/PF
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220IS
TO-220ISROHS CompliantActive
Three-terminal positive voltage regulator
- Manufacturer
- KEC
- Manufacturer part #
- KIA7809API-U/PF
- Store part #
- C125238
- Package / case
- TO-220IS
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,029 in stock
#C125238
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹29.70 | ₹29.70 |
| 10+ | ₹23.40 | ₹234.00 |
| 50+ | ₹18.63 | ₹931.50 |
| 100+ | ₹15.27 | ₹1,527.00 |
| 500+ | ₹13.77 | ₹6,885.00 |
| 1,000+ | ₹12.87 | ₹12,870.00 |
1 × ₹29.70
₹29.70
excl. GST
₹35.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
KIA7809API-U/PF
₹29.70 for 1 + GST
Specifications
- Output Voltage
- 9V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 4.3mA
- Output Configuration
- Positive
- Operating Voltage
- 26V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Applications
- VOLTAGE BOOST REGULATOR
- Voltage boost by use of zener diode
- Voltage boost by use of resistor
- Adjustable output regulator
- CURRENT BOOST REGULATOR
Key features
- Internal Thermal Overload Protection.
- Internal Short Circuit Current Limiting.
- Output Current in Excess of 1A. Satisfies IEC-65 Specification. (International Electronical Commission).
- Package is DPAK, TO-220IS
- Suitable for MLCC, Tantalum and Low ESR Electrolytic Capacitors.
- Suffix U : Qualified to AEC-Q100(Grade 0) : Automotive and standard product are electrically and thermally the same, except where specified. ex) KIA78**AF-RTF/PU.
