Kiwi InstrumentsDatasheet (PDF)

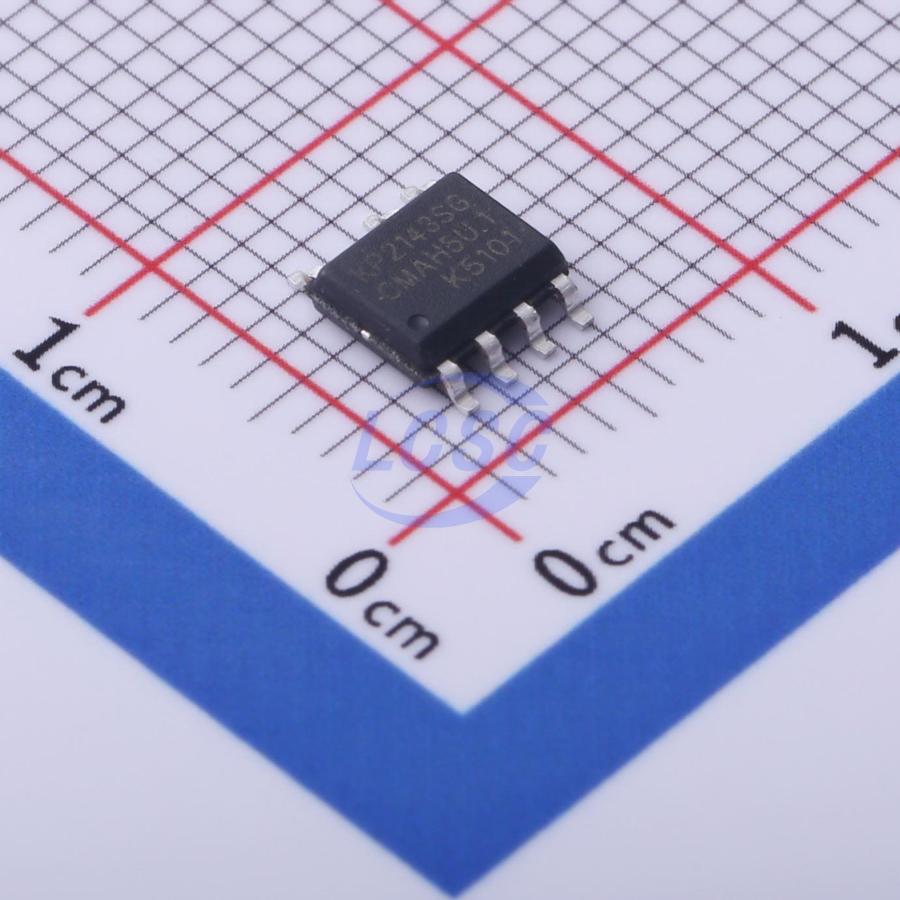

KP2143SGA
Converter Offline 120kHz SOP-7
SOP-7RoHSActive
High-efficiency quasi-resonant, constant-current and constant-voltage primary-side control power switch
- Manufacturer
- Kiwi Instruments
- Manufacturer part #
- KP2143SGA
- Store part #
- C2692153
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,855 in stock
#C2692153
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹38.33 | ₹38.33 |
| 10+ | ₹33.51 | ₹335.10 |
| 30+ | ₹31.41 | ₹942.30 |
| 100+ | ₹28.70 | ₹2,870.00 |
| 500+ | ₹27.65 | ₹13,825.00 |
| 1,000+ | ₹27.02 | ₹27,020.00 |
1 × ₹38.33
₹38.33
excl. GST
₹45.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
KP2143SGA
₹38.33 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 120kHz
- Voltage - Supply
- 11V~27V
- Voltage - Breakdown
- 650V
- Topology
- Flyback
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Working Mode
- QR
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.515 g
Overview
KP214X is a high-performance quasi-resonant, primary-side controlled power switch that delivers high-accuracy constant voltage (CV) and constant current (CC) output performance, making it particularly suitable for low-power offline charger applications. In CV mode, the KP214X employs a multi-mode operation scheme combining amplitude modulation (AM) and frequency modulation (FM) control, improving system efficiency and reliability. In CC mode, the IC utilizes a constant current loop to achieve quasi-resonant control. The KP214X enables noise-free operation while ensuring excellent dynamic performance. The integrated line loss compensation feature provides superior CV output performance. The KP214X integrates multiple protection functions: VDD undervoltage lockout (UVLO), VDD overvoltage protection (OVP), cycle-by-cycle overcurrent protection (OCP), short-circuit protection (SLP), FB short-circuit protection, and VDD clamping.
Applications
- Mobile phone charger AC adapter
Key features
- Integrated line voltage and load voltage constant current compensation
- Integrated comprehensive protection features:
- Cycle-by-cycle OCP
- LEB
- Floating pin protection
- VDD OVP/UVP and clamp protection
- Package: SOP-7/DIP-7
