Kiwi InstrumentsDatasheet (PDF)

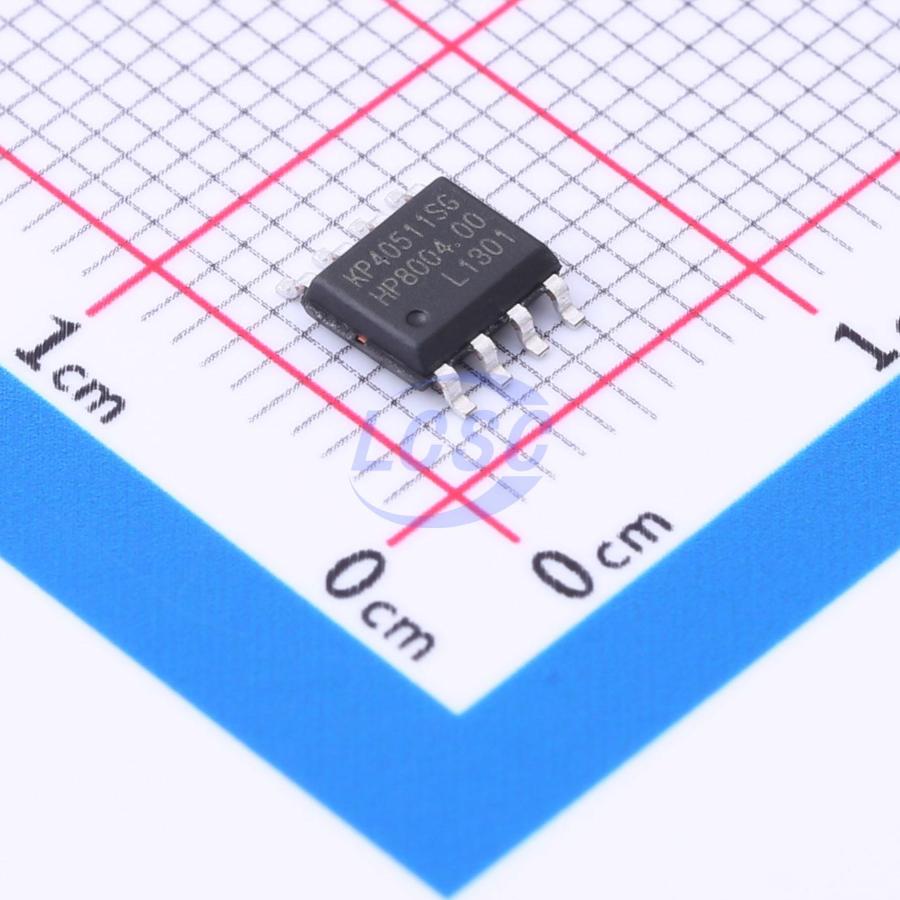

KP40511SGA
1 Channel 6A SOP-8
SOP-8RoHSActive
High-performance secondary-side synchronous rectifier switching tube with fast shutdown function
- Manufacturer
- Kiwi Instruments
- Manufacturer part #
- KP40511SGA
- Store part #
- C2692176
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,766 in stock
#C2692176
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.58 | ₹50.58 |
| 10+ | ₹44.29 | ₹442.90 |
| 30+ | ₹41.77 | ₹1,253.10 |
| 100+ | ₹38.41 | ₹3,841.00 |
| 500+ | ₹33.38 | ₹16,690.00 |
| 1,000+ | ₹32.32 | ₹32,320.00 |
1 × ₹50.58
₹50.58
excl. GST
₹59.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
KP40511SGA
₹50.58 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Under-voltage lockout
- number of channels
- 1
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- RDS(on)
- 20mΩ
- Operating Voltage
- 300mV~12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
KP4051XSG is a high-performance secondary-side synchronous rectification power switch designed to replace Schottky rectifier diodes for improved system efficiency. KP4051XSG supports both High Side and Low Side configurations with an integrated high-voltage VDD supply module, eliminating the need for auxiliary winding power supply and reducing system cost. KP4051XSG features fast turn-off capability and supports Discontinuous Conduction Mode (DCM), Quasi-Resonant Mode (QR), and Continuous Conduction Mode (CCM). KP4051XSG integrates an intelligent turn-on detection function to effectively prevent false SR turn-on caused by Vds oscillation in DCM.
Applications
- USB PD fast charging adapter
Key features
- Built-in 100V MOSFET
- Supports DCM, QR, and CCM operation
- Integrated 180V high-voltage supply circuit, no auxiliary winding required
- Supports synchronous rectification down to 0V output voltage
- Wide output voltage range, ideal for fast charging applications supporting QC, PD, and other protocols
- Supports High Side and Low Side configurations
- -30ns turn-on and turn-off delay
- Intelligent turn-on detection to prevent false triggering
- Intelligent zero-crossing detection
- Gate intelligent clamping before startup
- SOP8 package
