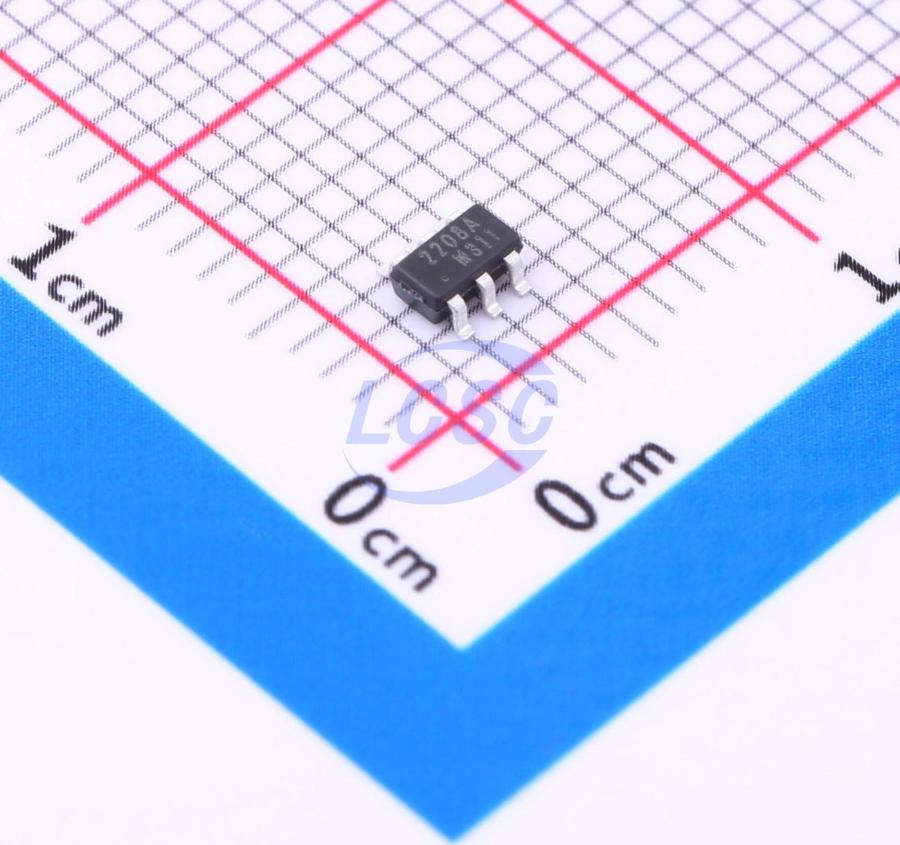

KP522208ALGA

KP522201A/08A is a simple, easy-to-use, and highly integrated synchronous buck converter. It features a wide input voltage range of 4.5V to 17V, making it well-suited for common input voltage rails such as 12V and 15V. It supports a continuous output current of up to 2A with an output voltage range of 0.768V to 7V. The KP522201A operates in pulse frequency modulation (PFM) mode under light load to maintain high light-load efficiency; the KP522208A operates in forced pulse width modulation (FPWM) mode to achieve a fixed switching frequency and low output ripple across the full load current range. KP522201A/08A integrates comprehensive protection features, including input undervoltage lockout (UVLO), cycle-by-cycle valley current limiting protection (OCL), output undervoltage hiccup protection (UVP), output overvoltage protection (OVP), and overtemperature protection (OTP), ensuring safe and reliable operation under various operating conditions. KP522201A/08A is available in a compact SOT23-6 package with a junction temperature range of -40°C to 125°C.

Applications

• Set-top boxes
• Digital TV home network equipment
• Security surveillance equipment
• Smart speakers
• Electronic POS terminals
• Other general-purpose power supply applications

Key features

• Wide input voltage range: 4.5V to 17V
• Output voltage range: 0.768V to 7V
• 2A continuous output current
• 600kHz switching frequency in continuous conduction mode
• Integrated 135mΩ and 70mΩ MOSFET switches
• Low quiescent current: 190μA (no switching, typical)
• Low shutdown current: 2.5μA (typical)
• Constant on-time control for ultra-fast transient response
• Two light-load operating modes:
• KP522201A: Pulse Frequency Modulation (PFM)
• KP522208A: Forced PWM (FPWM)
• High reference voltage accuracy: 0.768V±1.5%@25°C
• Comprehensive integrated protection features:
• Precision enable control with adjustable UVLO
• Internal 1ms soft-start to prevent voltage and current overshoot
• Cycle-by-cycle valley current limiting (OCL)
• Non-latching input undervoltage protection (UVLO), output undervoltage protection (UVP), output overvoltage protection (OVP), and over-temperature protection (OTP)
• Compact solution size:
• MLCC ceramic capacitor compatible with minimal output capacitor count
• No external compensation required
• Small package: SOT23-6
