KT-0805G

On LCSC (LCSC# C2297), the KT-0805G is priced as follows: 50+ pcs: $0.0163 each 500+ pcs: $0.0126 each 3,000+ pcs: $0.0100 each 6,000+ pcs: $0.0088 each 24,000+ pcs: $0.0083 each 51,000+ pcs: $0.0080 each Over 776,000 units are in stock and available for immediate shipment. The minimum order is 50 pieces and the standard packaging is 3,000 pieces per reel.

The KT-0805G 0805 LED is supplied in standard tape-and-reel packaging with a full reel of 3,000 pieces and a minimum order of 50 pieces in multiples of 50. As a RoHS-compliant component, it is compatible with lead-free SAC305 reflow profiles. The 0805 body is larger than 0402 or 0603 LEDs, offering better soldering margins. Care should be taken not to exceed the maximum reflow temperature specified in the KENTO datasheet to avoid degradation of the LED die. Polarity must be observed: the cathode marking (typically a line or dot) must align with the PCB silkscreen.

A dominant wavelength of 525nm corresponds to the emerald green portion of the visible spectrum. This is distinct from yellow-green LEDs (typically 570nm) and blue-green LEDs. The 525nm designation means the KT-0805G emits a visually pure green, making it well suited for status indicator applications where green-channel discrimination is important (e.g., multi-color indicator arrays alongside red and amber LEDs). The forward voltage range of 2.6V to 3.1V is characteristic of high-efficiency InGaN green LEDs.

The 0805 (2.0mm × 1.25mm) package is an industry-standard SMD footprint. Other 0805 green LEDs with a similar dominant wavelength near 525nm and a forward voltage in the 2.6V to 3.1V range may serve as footprint-compatible replacements. However, luminous intensity, viewing angle, and exact Vf characteristics vary by manufacturer and part number. Always verify the current limiting resistor calculation against the target LED's Vf and desired current using the KT-0805G datasheet values before substituting.

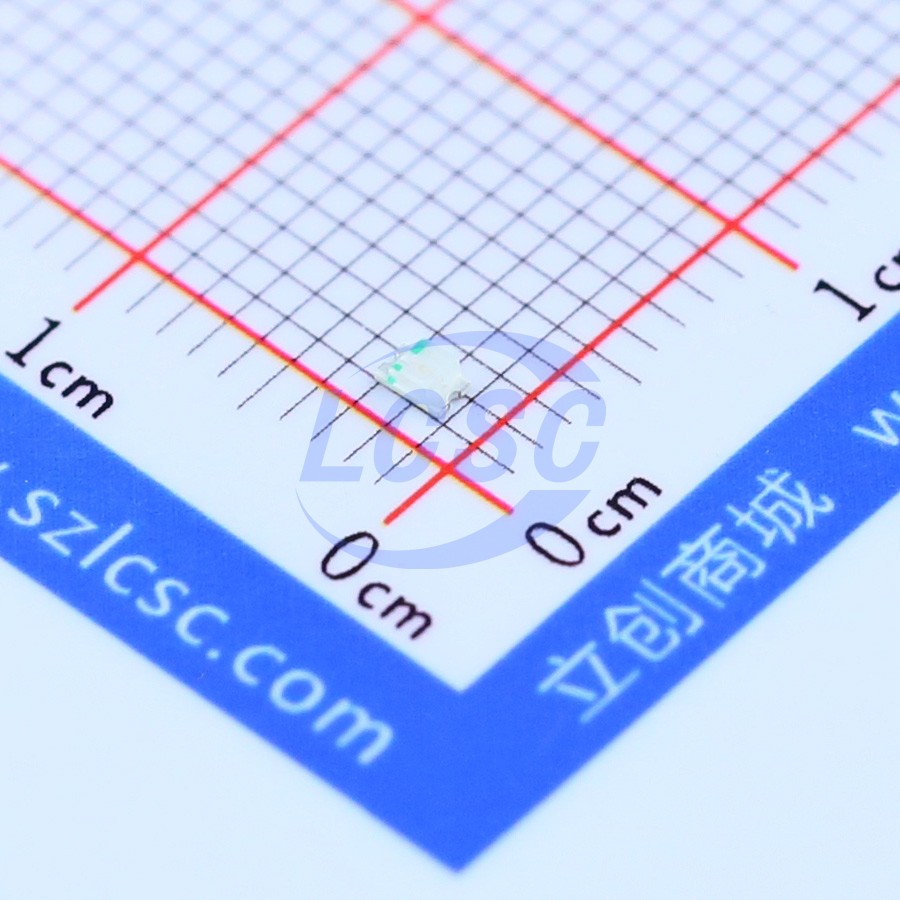

The KT-0805G is an Emerald Green SMD LED in an 0805 package, with a dominant wavelength of 525nm and a forward voltage range of 2.6V to 3.1V. It belongs to the LED Indication – Discrete category (LCSC# C2297) and is RoHS compliant (CNHTS: 8541410000). The description specifies an emerald green color at 525nm, placing it firmly in the pure green spectral band. Current, luminous intensity, and viewing angle specifications are available in the Hubei KENTO Elec KT-0805G datasheet on the LCSC product page.
