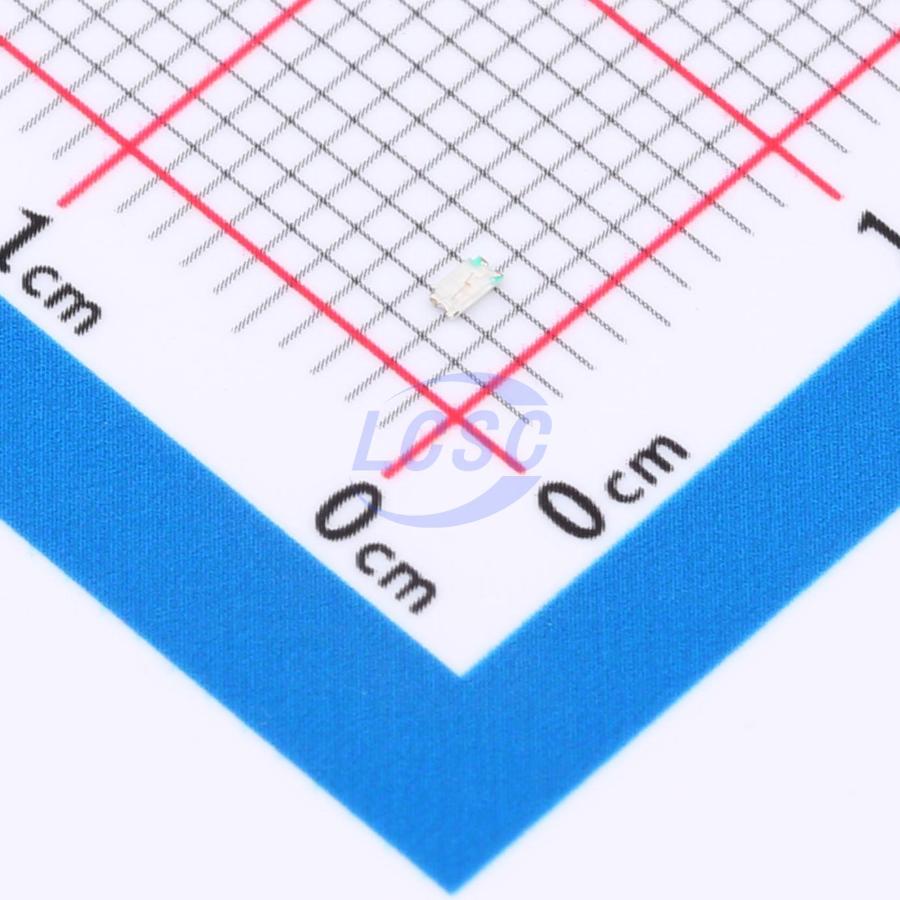

XL-1608UGC-04
Emerald Green 525nm LED Indication - Discrete 3.3V 0603
LED EMERALD GREEN WATER CLEAR 0603 SMD
- Manufacturer
- XINGLIGHT
- Manufacturer part #
- XL-1608UGC-04
- Store part #
- C965804
- Package / case
- 0603
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,22,300 in stock
#C965804
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.6747 | ₹67.47 |
| 1,000+ | ₹0.5424 | ₹542.40 |
| 4,000+ | ₹0.4763 | ₹1,905.20 |
| 8,000+ | ₹0.4498 | ₹3,598.40 |
| 48,000+ | ₹0.4234 | ₹20,323.20 |
100 × ₹0.6747
₹67.47
excl. GST
₹79.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XL-1608UGC-04
₹67.47 for 100 + GST
Specifications
- Installation method
- Top-mount
- Peak Wavelength
- 525nm
- Lens Color
- Water Clear
- Luminous Intensity
- 810mcd
- Viewing Angle
- 120°
- Forward Current
- 20mA
- Illumination Color
- Emerald Green
- Voltage - Forward(Vf)
- 3.3V
- Lamp Holder Type
- 1.6mm x 0.8mm square LED
- Operating Temperature
- -40℃~+85℃
- Diode Configuration
- Discrete Diode
- Wavelength
- 515nm~535nm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.021 g
Overview
Applications
- Medical devices: endoscopes, pulse oximeters
- Automotive electronics: backlit button lights, indicator lights
- Industrial products: electronic dashboards, industrial equipment
- Smart home: white goods, seven-segment LED displays
- Communication products: mobile phone button lights, routers, set-top boxes
Key features
- Dimensions (L/W/H): 1.6×0.8×0.4mm
- Emission color / lens: Emerald green / clear lens
- RoHS-compliant, halogen-free process
- Moisture Sensitivity Level (MSL): Level 3
- EIA standard packaging
- Compatible with SMT automated assembly
- Compatible with IR reflow soldering process
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XL-TD1608UGC#C965851XINGLIGHT · 0603 | XINGLIGHT | 0603 | 4,280 | ₹4.95 · 4,280 in stock | View |
 | XL-1608UGGC#C55338548XINGLIGHT · 0603 | XINGLIGHT | 0603 | 3,950 | ₹2.62 · 3,950 in stock | View |
 | XL-1608UGC-06A#C7371903XINGLIGHT · 0603 | XINGLIGHT | 0603 | 1,76,000 | ₹1.79 · 1,76,000 in stock | View |
 | XL-1608PGC-06#C7371905XINGLIGHT · 0603 | XINGLIGHT | 0603 | 7,73,950 | ₹1.47 · 7,73,950 in stock | View |
Questions about XL-1608UGC-04
What Reliability Standards or Certifications Apply to the XL-1608UGC-04 LED?
The XL-1608UGC-04 is RoHS compliant and manufactured to industry quality standards ensuring stable performance and long operating life. The component meets standard commercial application requirements and is certified for reliable operation. Refer to the manufacturer's datasheet for detailed compliance and reliability data.
Are There Compatible or Equivalent Parts to the XL-1608UGC-04 LED?
Yes, the XL-1608UGC-04 is compatible with other 0603 SMD LEDs featuring similar emerald green wavelengths and 3.3V specifications. When selecting alternatives, verify the wavelength (525nm), forward voltage, and luminous intensity match the original part. Electrical and mechanical compatibility is essential for proper performance.
What Applications Is the XL-1608UGC-04 LED Suitable For?
This LED electronic component is widely used in indicator lights, backlighting for displays, consumer electronics, and compact PCB designs. Its small footprint and consistent brightness make it ideal for IoT devices, control panels, and portable electronics. Engineers often select it for applications requiring reliable visual indication.
What Are the Key Specifications of the XL-1608UGC-04 LED Electronic Component?
The XL-1608UGC-04 is a compact emerald green LED from XINGLIGHT in a 0603 SMD package with a 525nm wavelength and 3.3V operating voltage. It delivers stable luminous intensity in a water-clear lens design, making it ideal for low-power indicator applications. Refer to the datasheet for detailed electrical and optical parameters.
