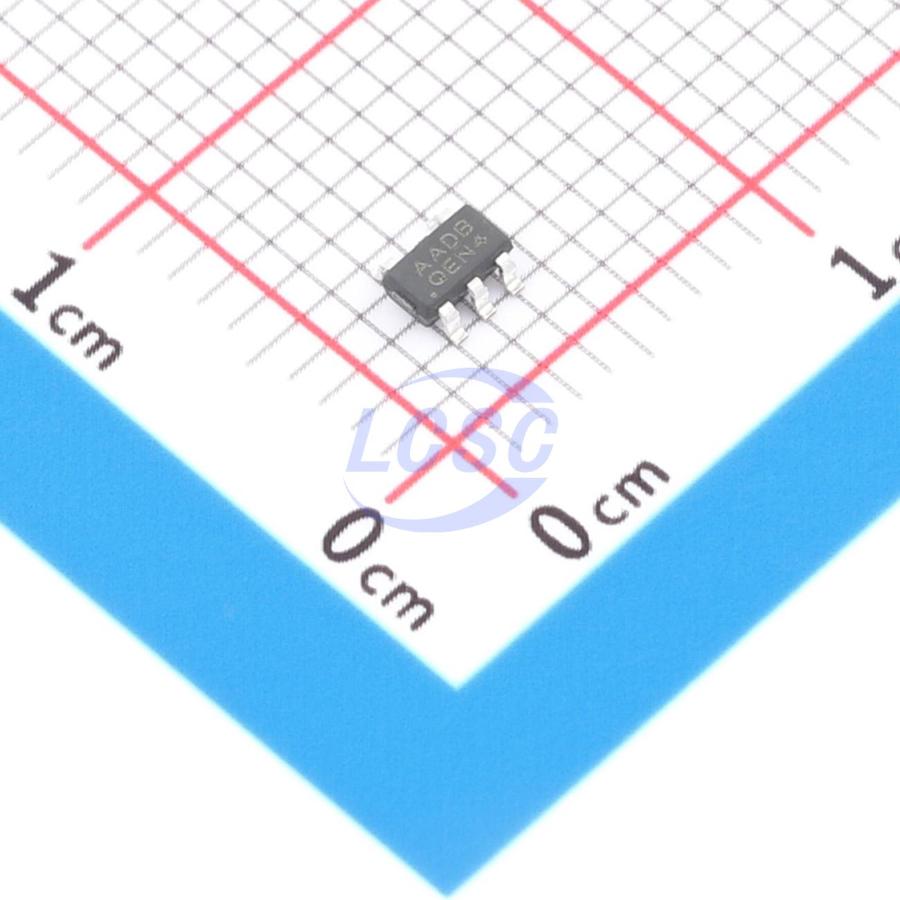

L-AP2127K-1.2TRG1
1.2V Positive SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 1.2V 600mA SOT-23-5
- Manufacturer
- PIELENST
- Manufacturer part #
- L-AP2127K-1.2TRG1
- Store part #
- C49190682
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C49190682
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.04 | ₹90.40 |
| 100+ | ₹7.16 | ₹716.00 |
| 300+ | ₹6.23 | ₹1,869.00 |
| 3,000+ | ₹5.52 | ₹16,560.00 |
| 6,000+ | ₹4.96 | ₹29,760.00 |
| 9,000+ | ₹4.68 | ₹42,120.00 |
10 × ₹9.04
₹90.40
excl. GST
₹106.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
L-AP2127K-1.2TRG1
₹90.40 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- Wireless communication devices
- Audio/video devices
- Automotive navigation systems
Key features
- 2μA quiescent current (no load)
- ±2% output voltage accuracy
- 600mA output current capability
- 10nA shutdown current (optional version)
- Wide input voltage range: 1.2V to 6V
- Low dropout: 0.32V (V₀ = 3.3V / I₀ = 600mA)
- Fixed output voltage: 1.2V
- ADJ adjustable output voltage, reference voltage 0.8V
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
