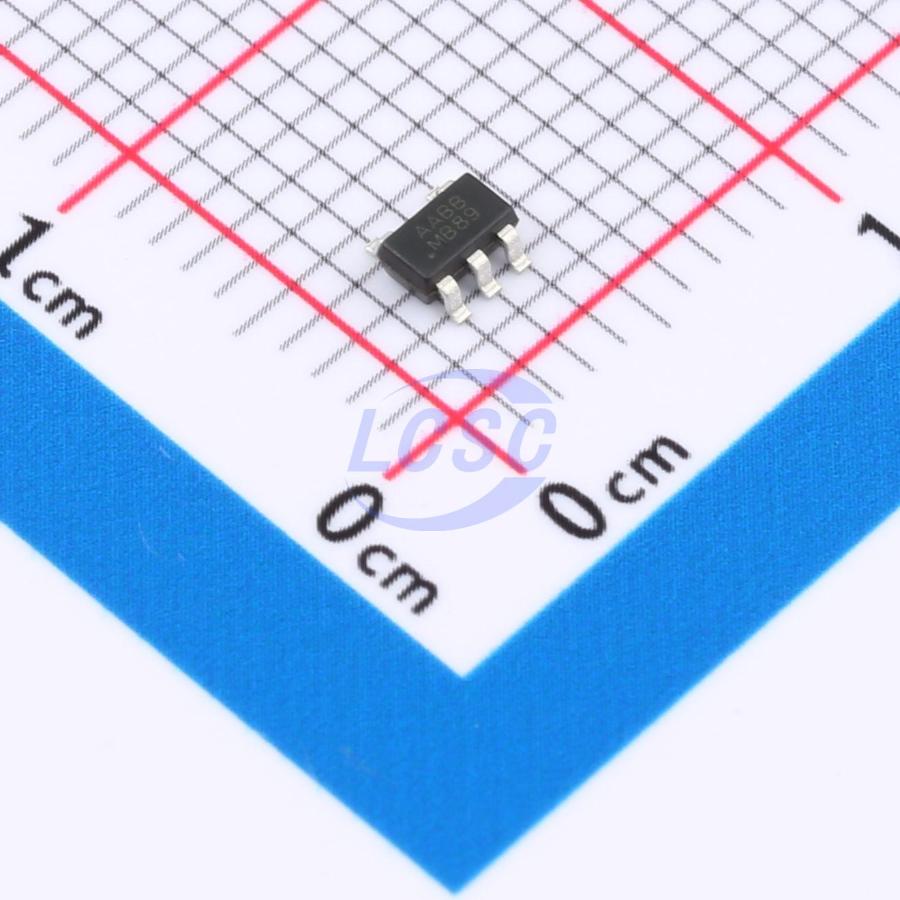

L-AP2127K-1.8TRG1
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 1.8V 600mA SOT-23-5
- Manufacturer
- PIELENST
- Manufacturer part #
- L-AP2127K-1.8TRG1
- Store part #
- C49190686
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C49190686
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.01 | ₹90.10 |
| 100+ | ₹7.14 | ₹714.00 |
| 300+ | ₹6.20 | ₹1,860.00 |
| 3,000+ | ₹5.49 | ₹16,470.00 |
| 6,000+ | ₹4.93 | ₹29,580.00 |
| 9,000+ | ₹4.64 | ₹41,760.00 |
10 × ₹9.01
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
L-AP2127K-1.8TRG1
₹90.10 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 600mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
This device is a linear regulator with low quiescent current of 2µA, supporting an input voltage range of 1.2V to 6V. It features enable control with shutdown current as low as 10nA, and is capable of delivering up to 600mA of output current.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- Wireless communication devices
- Audio/video devices
- Automotive navigation systems
Key features
- 2µA quiescent current (no load)
- ±2% output voltage accuracy
- 600mA output current capability
- 10nA shutdown current (optional version)
- Wide input voltage range: 1.2V to 6V
- Low dropout: 0.32V (at V0=3.3V / I0=600mA)
- Fixed output voltage: 1.8V
- ADJ adjustable output voltage with 0.8V reference
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
