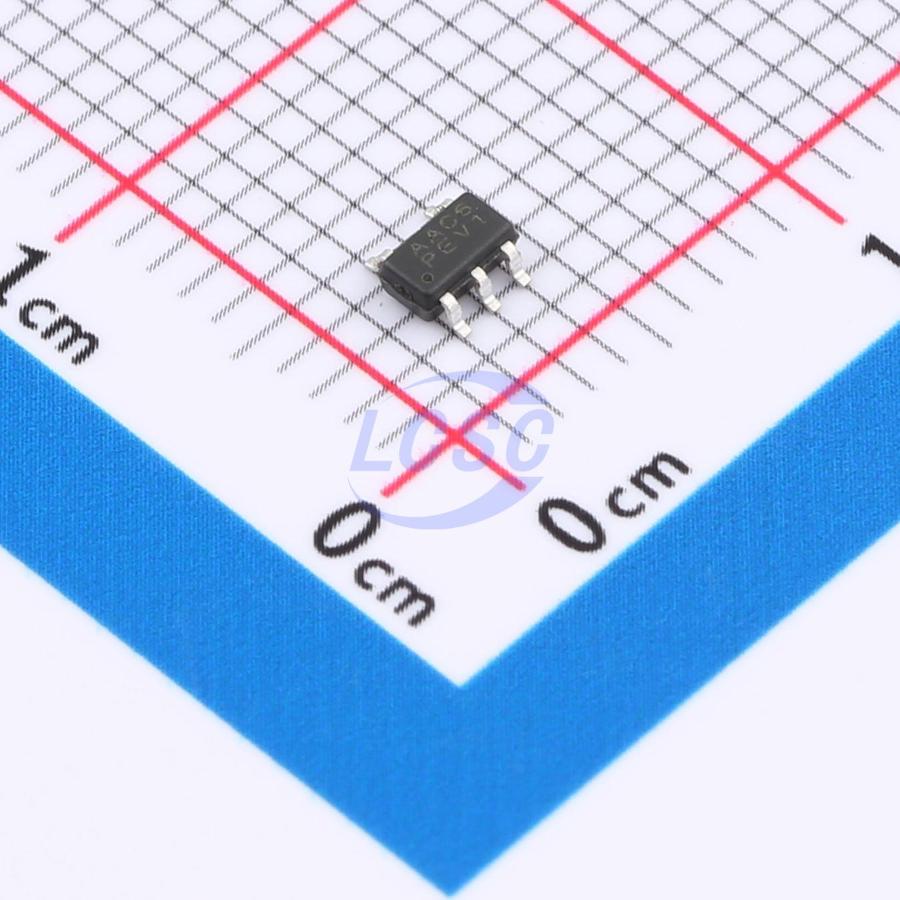

L-AP2127K-2.8TRG1
2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 2.8V 600mA SOT-23-5
- Manufacturer
- PIELENST
- Manufacturer part #
- L-AP2127K-2.8TRG1
- Store part #
- C49190687
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C49190687
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.26 | ₹92.60 |
| 100+ | ₹7.38 | ₹738.00 |
| 300+ | ₹6.44 | ₹1,932.00 |
| 3,000+ | ₹5.74 | ₹17,220.00 |
| 6,000+ | ₹5.17 | ₹31,020.00 |
| 9,000+ | ₹4.90 | ₹44,100.00 |
10 × ₹9.26
₹92.60
excl. GST
₹109.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
L-AP2127K-2.8TRG1
₹92.60 for 10 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 600mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtop computers, and PDAs
- Wireless communication devices
- Audio/video equipment
Key features
- 2μA quiescent current (no load)
- ±2% output voltage accuracy
- 600mA output current capability
- 10nA shutdown current (optional version)
- Wide input voltage range: 1.2V ~ 6V
- Low dropout: 0.32V (at V0 = 3.3V / I0 = 600mA)
- Fixed output voltage: 2.8V
- ADJ adjustable voltage output, reference voltage 0.8V
- Ceramic or tantalum capacitor compatible
- Current limiting protection
- Over-temperature protection
