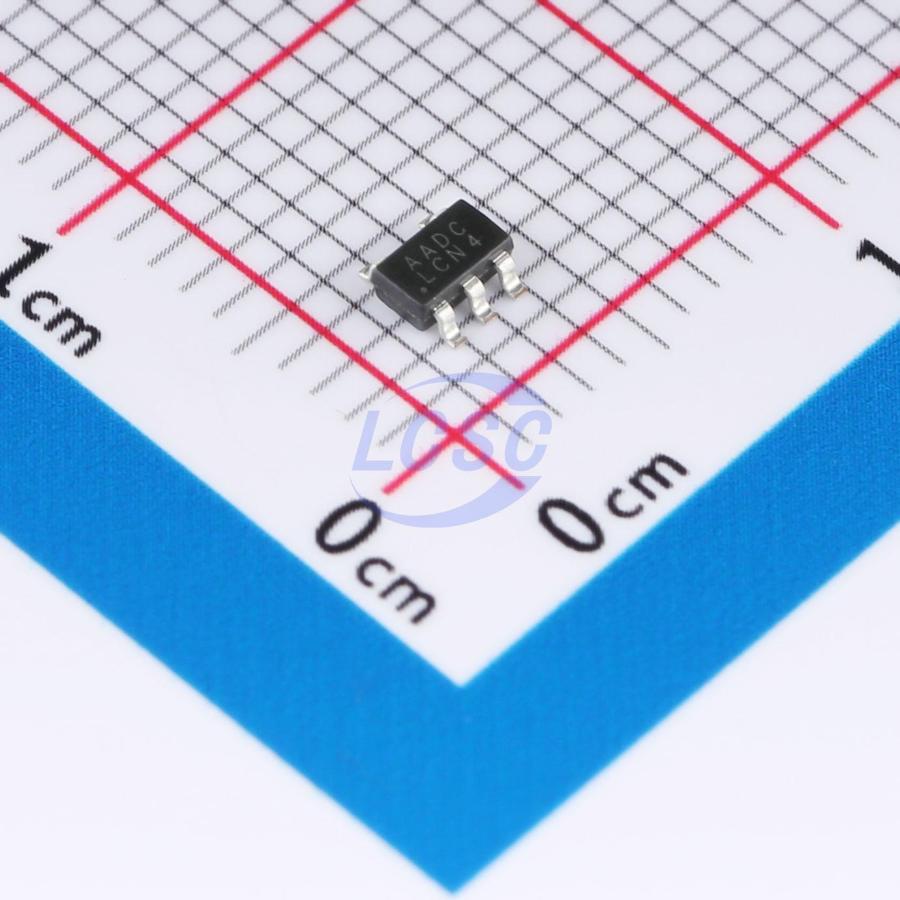

L-LP5907MFX-3.0/NOPB
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 3V 300mA SOT-23-5
- Manufacturer
- PIELENST
- Manufacturer part #
- L-LP5907MFX-3.0/NOPB
- Store part #
- C49190430
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C49190430
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.54 | ₹57.70 |
| 50+ | ₹9.14 | ₹457.00 |
| 150+ | ₹7.94 | ₹1,191.00 |
| 500+ | ₹7.04 | ₹3,520.00 |
| 3,000+ | ₹6.32 | ₹18,960.00 |
| 6,000+ | ₹5.97 | ₹35,820.00 |
5 × ₹11.54
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
L-LP5907MFX-3.0/NOPB
₹57.70 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
Features a wide input voltage range of 1.2V to 5.5V, low dropout, low quiescent current, and compact packaging. The 2μA low quiescent current makes it ideal for battery-powered and long-term standby applications, helping reduce system standby power consumption and effectively extending standby time and battery life. An optional EN pin version is available — pulling EN low enters shutdown mode, reducing quiescent current to as low as 100nA (typical). Supports ceramic output capacitors and operates stably across the full 1.2V to 5.5V input voltage range and 0mA to 300mA output load current range.
Applications
- Handheld
- Battery-powered devices
- Low-power microprocessors
- Laptops
- PDAs
Key features
- 2µA quiescent current (no load)
- ±2% output voltage accuracy
- 300mA output current capability
- 100nA shutdown current (optional version)
- Wide input voltage range: 1.2V~5.5V
- Low dropout: 0.18V (Vo=3.3V/Io=300mA)
- Fixed output voltage: 3.0V
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
