PIELENSTDatasheet (PDF)

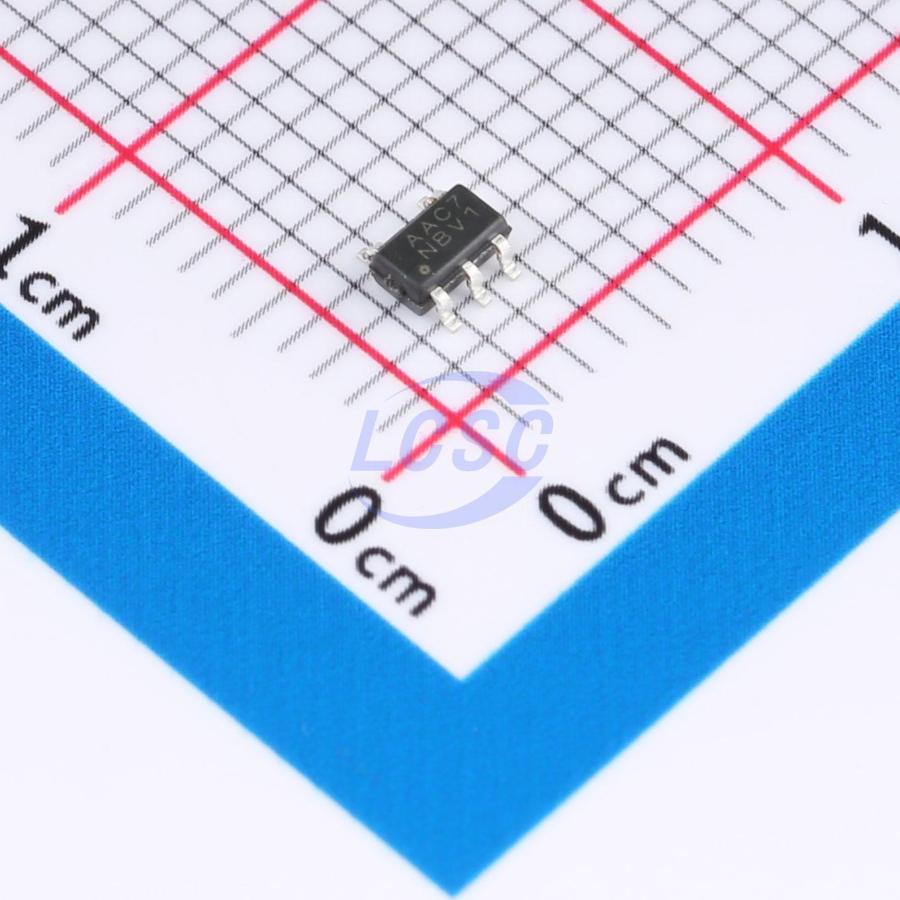

L-XC6228D332VR-G
3.3V Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 3.3V 300mA SOT-23-5
- Manufacturer
- PIELENST
- Manufacturer part #
- L-XC6228D332VR-G
- Store part #
- C49190688
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C49190688
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.97 | ₹89.70 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.15 | ₹1,845.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹8.97
₹89.70
excl. GST
₹105.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
L-XC6228D332VR-G
₹89.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
This product features a wide input voltage range of 1.2V to 5.5V, low dropout, low power consumption, and a compact package. Its 2μA low quiescent current makes it particularly suitable for battery-powered and long-term standby system applications, helping to reduce standby power consumption, and effectively extending standby time and battery life. An optional version with an EN enable pin is available — pulling the EN pin low enters shutdown mode, in which quiescent current drops to as low as 100nA (typical). With ceramic output capacitors, the device operates stably across the full 1.2V to 5.5V input voltage range and 0mA to 300mA output load current range.
Applications
- Handheld, battery-powered devices
- Low-power microprocessors
- Laptops, palmtops, and PDAs
- Wireless communication devices
- Audio/video devices
- Automotive navigation systems
Key features
- 2μA quiescent current (no load)
- ±2% output voltage accuracy
- 300mA output current capability
- 100nA shutdown current (optional version)
- Wide input voltage range: 1.2V to 5.5V
- Low dropout: 0.18V (V₀ = 3.3V / I₀ = 300nA)
- Fixed output voltage: 3.3V
- Compatible with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
