STDatasheet (PDF)

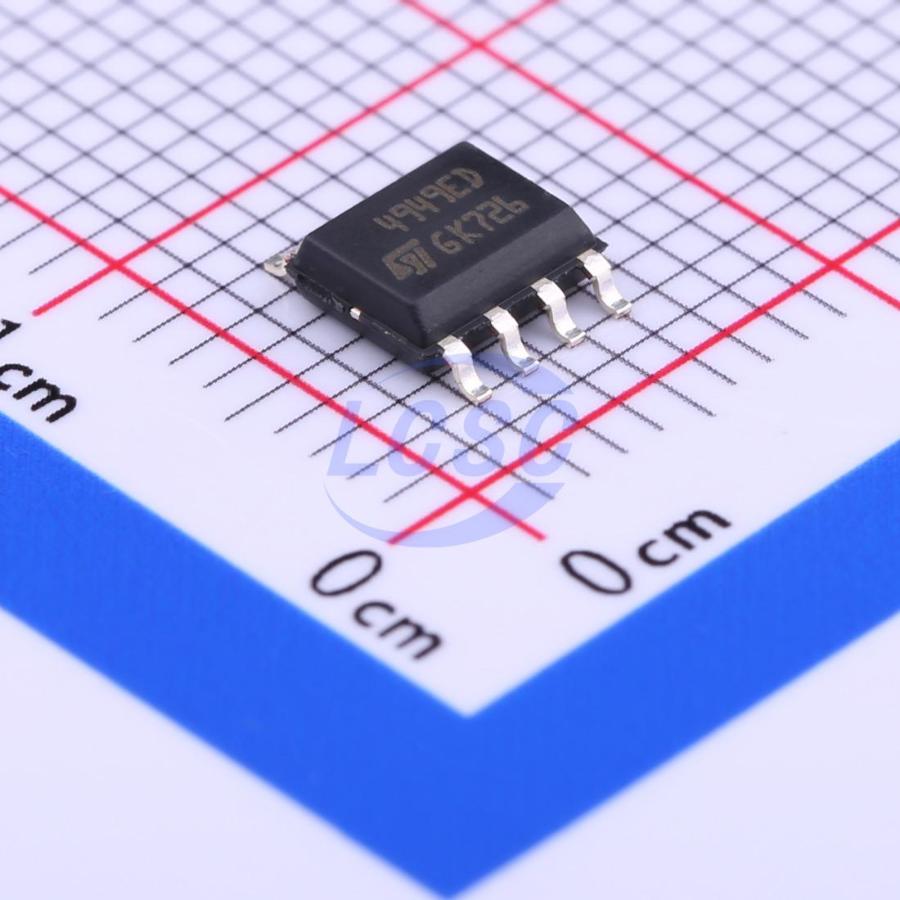

L4949EDTR-E
5V Positive Fixed SO-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SO-8ROHS3 CompliantActive
Multifunctional Ultra-Low Dropout Regulator
- Manufacturer
- ST
- Manufacturer part #
- L4949EDTR-E
- Store part #
- C262890
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C262890
Stock & price checked 15 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.53 | ₹99.53 |
| 10+ | ₹80.62 | ₹806.20 |
| 30+ | ₹71.28 | ₹2,138.40 |
| 100+ | ₹61.93 | ₹6,193.00 |
| 500+ | ₹56.51 | ₹28,255.00 |
| 1,000+ | ₹53.67 | ₹53,670.00 |
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 300uA
- Output Configuration
- Positive
- Operating Voltage
- 28V
- Output Current
- 100mA
- Features
- Reset function;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
The L4949ED-E and L4949EP-E are monolithic integrated 5V voltage regulators with a very low dropout output and additional functions as poweron reset and input voltage sense. They are designed for supplying the microcomputer controlled systems especially in automotive applications.
Key features
- AEC-Q100 qualified ECOPACK: lead free and RoHS compliant
- Operating DC supply voltage range 5 V - 28 V
- Transient supply voltage up to 40V
- Extremely low quiescent current in standby
- High precision standby output voltage 5V±1%
- Output current capability up to 100 mA
- Very low dropout voltage less than 0.5 V
- Reset circuit sensing the output voltage
- Programmable reset pulse delay with external capacitor
- Voltage sense comparator
- Thermal shutdown and short circuit protections
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42694GXUMA2#C3748268Infineon · DSO-8 | Infineon | DSO-8 | 2 | ₹121.39 · 2 in stock | View |
| TLE42794G#C539731Infineon · DSO-8 | Infineon | DSO-8 | 1 | ₹136.76 · 1 in stock | View | |
 | NCV4269AD150R2G#C424246onsemi · SOIC-8 | onsemi | SOIC-8 | 107 | ₹141.43 · 107 in stock | View |
| TLE42994G#C539754Infineon · DSO-8 | Infineon | DSO-8 | 300 | ₹279.22 · 300 in stock | View | |
 | TLS710B0EJ V50#C540263Infineon · DSO-8 | Infineon | DSO-8 | 17 | ₹391.61 · 17 in stock | View |
