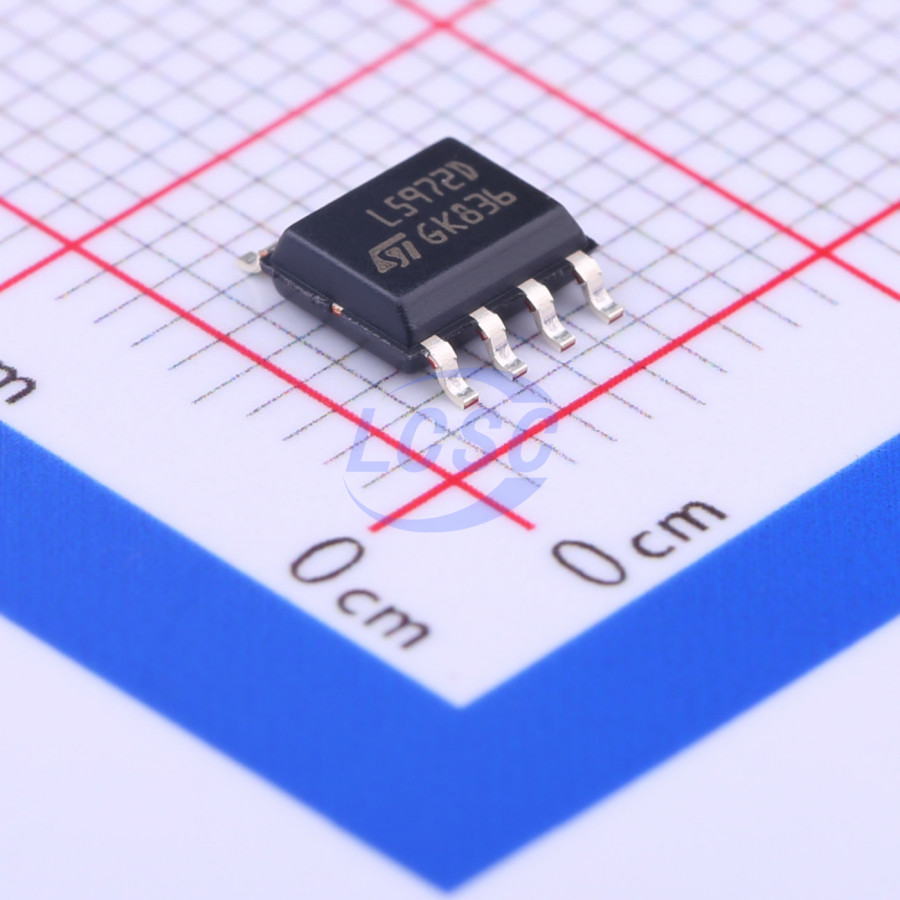

L5972D013TR

250kHz Step-down type Adjustable 1.235V~35V 2A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS

SOIC-8ROHS3 CompliantActive

2A Buck Switching Regulator

Manufacturer: ST
Manufacturer part #: L5972D013TR
Store part #: C361019
Package / case: SOIC-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,207 in stock

#C361019

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
1+	₹263.13	₹263.13
10+	₹220.11	₹2,201.10
30+	₹196.43	₹5,892.90
100+	₹146.46	₹14,646.00
500+	₹134.72	₹67,360.00
1,000+	₹129.28	₹1,29,280.00

Quantity (min 1)

1 × ₹263.13

₹263.13

excl. GST

₹310.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

L5972D013TR

₹263.13 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃@(TJ)
Frequency - Switching: 250kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.4V~36V
Switch tube (built-in/external): Built-in
Output Voltage: 1.235V~35V
Output Current: 2A
Quiescent Current: 2.5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.236 g

Overview

The L5972D is a step down monolithic power switching regulator with a minimum switch current limit of 2A so it is able to deliver more than 1.5A DC current to the load depending on the application conditions. The output voltage can be set from 1.235V to 35V. The device uses an internal P-Channel D-MOS transistor (with a typical Rdson of 250mΩ) as switching element to minimize the size of the external components. An internal oscillator fixes the switching frequency at 250kHz. Having a minimum input voltage of 4.4V only, it is particularly suitable for 5V bus, available in all computer related applications. Pulse by pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.

Applications

Consumer: STB, DVD, TV, VCR, car radio, LCD monitors
Networking: XDSL, modems, DC-DC modules
Computer: printers, audio/graphic cards, optical storage, hard disk drive
Industrial: changers, car battery, DC-DC converters

Key features

2A internal switch
Operating input voltage from 4.4V to 36V Output voltage adjustable from 1.235V to 35V
Low dropout operation: 100% duty cycle
250kHz Internally fixed frequency
Voltage feedforward
Zero load current operation
Internal current limiting
Protection against feedback disconnection Thermal shutdown
