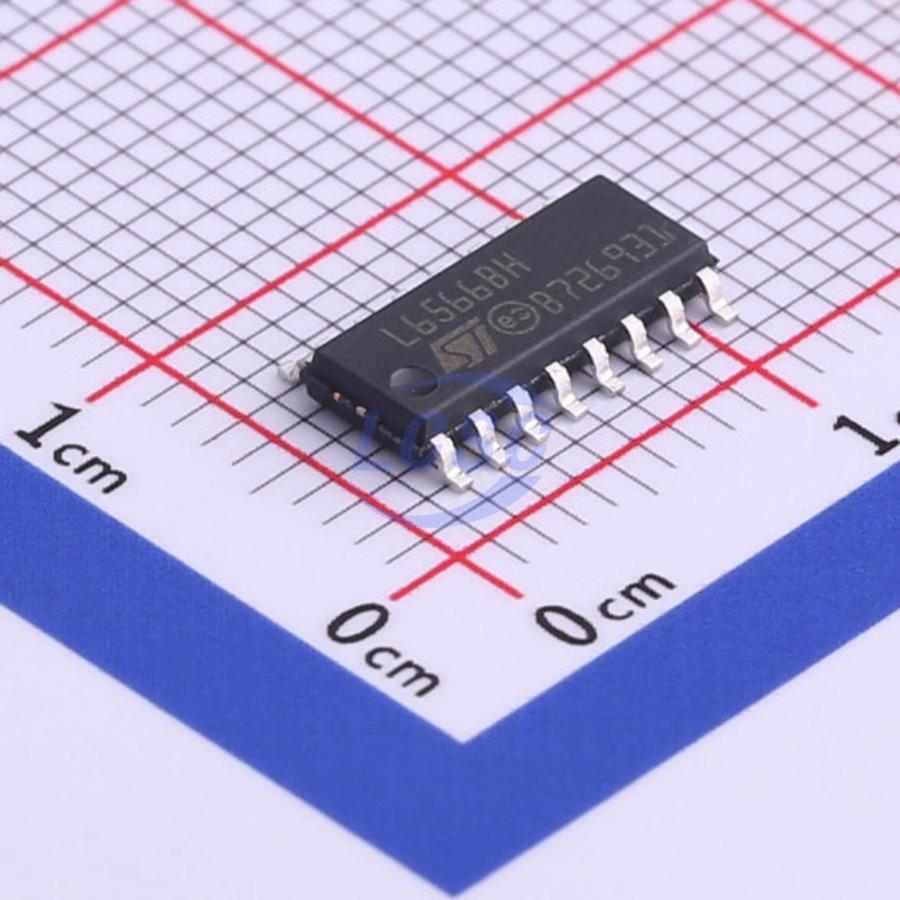

L6566BHTR

800mA 10kHz~300kHz 0.75W 8V~23V Flyback SO-16-4.4mm AC DC Converters, Offline Switchers RoHS

SO-16-4.4mmROHS3 CompliantActive

Manufacturer: ST
Manufacturer part #: L6566BHTR
Store part #: C472538
Package / case: SO-16-4.4mm
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C472538

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹204.77	₹204.77
10+	₹200.65	₹2,006.50
30+	₹197.83	₹5,934.90
100+	₹195.01	₹19,501.00

Quantity (min 1)

1 × ₹204.77

₹204.77

excl. GST

₹241.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

L6566BHTR

₹204.77 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Output Current: 800mA
Frequency - Switching: 10kHz~300kHz
Pd - Power Dissipation: 0.75W
Voltage - Supply: 8V~23V
Topology: Flyback
Features: Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
Duty Cycle(Max): 75%
Working Mode: QR;PWM Modulation
Feedback System: Secondary-Side Feedback

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.204 g

Overview

The L6566BH is an extremely versatile current-mode primary controller IC, specifically designed for high-performance offline flyback converters running off rectified 3-phase input lines. It is also suited to single-stage, single-switch, input-current-shaping converters (single-stage PFC) for applications that must comply with EN61000-3-2 or JEITA-MITI regulations. Both fixed-frequency (FF) and quasi-resonant (QR) operation are supported. The user can choose either of the two depending on application needs. The device features an externally programmable oscillator: it defines the converter switching frequency in FF mode and the maximum allowed switching frequency in QR mode. When FF operation is selected, the ICs work as a standard current-mode controller with a maximum duty cycle limited to 70% min. The oscillator frequency can be modulated to mitigate EMI emissions. QR operation, when selected, occurs at heavy load and is achieved through a transformer demagnetization sensing input that triggers MOSFET turn-on. Under some conditions, ZVS (zero-voltage switching) can be achieved. The converter’s power capability rise with the mains voltage is compensated by line voltage feedforward. At medium and light load, as the QR operating frequency equals the oscillator frequency, a function (valley skipping) is activated to prevent further frequency rise and keep the operation as close to ZVS as possible.
