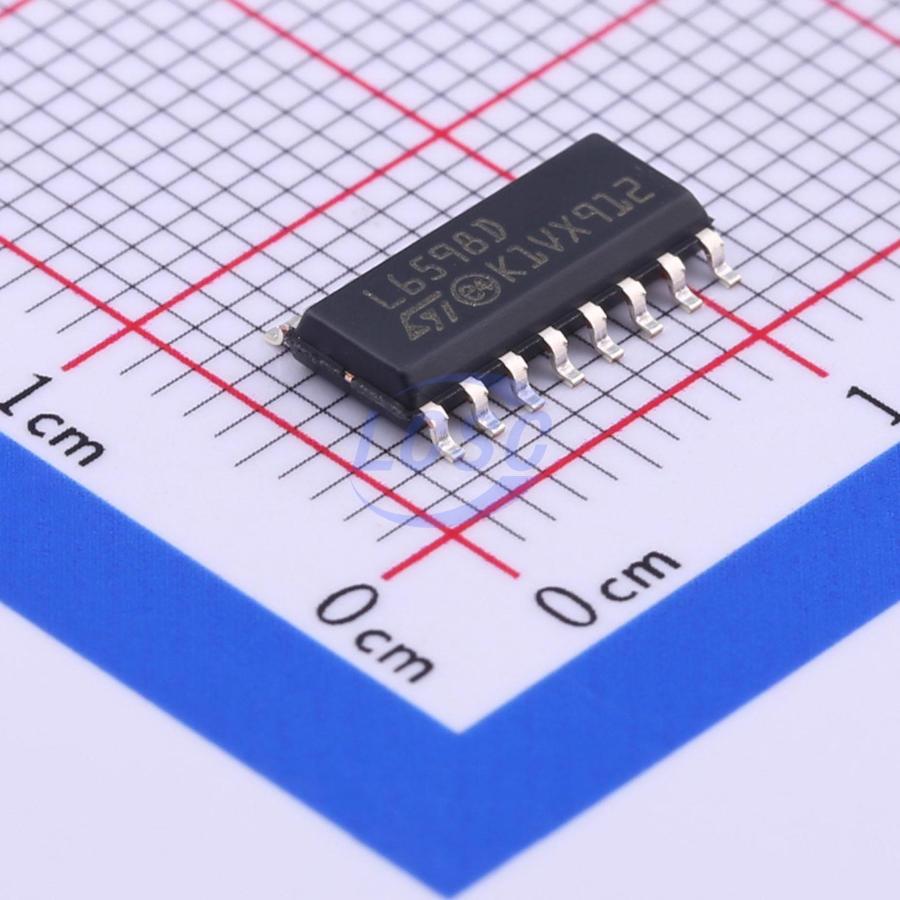

L6598D013TR
450mA 400kHz 600V 8V~16.6V Half-Bridge SO-16 AC DC Converters, Offline Switchers RoHS
SO-16ROHS3 CompliantActive
High voltage resonant controller
- Manufacturer
- ST
- Manufacturer part #
- L6598D013TR
- Store part #
- C411395
- Package / case
- SO-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,488 in stock
#C411395
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹250.21 | ₹250.21 |
| 10+ | ₹212.26 | ₹2,122.60 |
| 30+ | ₹188.42 | ₹5,652.60 |
| 100+ | ₹164.13 | ₹16,413.00 |
| 500+ | ₹153.07 | ₹76,535.00 |
| 1,000+ | ₹148.31 | ₹1,48,310.00 |
1 × ₹250.21
₹250.21
excl. GST
₹295.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L6598D013TR
₹250.21 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Output Current
- 450mA
- Frequency - Switching
- 400kHz
- Voltage - Breakdown
- 600V
- Voltage - Supply
- 8V~16.6V
- Features
- Adjustable soft-start;Under-voltage lockout;Under Voltage Protection
- Topology
- Half-Bridge
- Duty Cycle(Max)
- 50%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.337 g
Overview
The L6598 device is manufactured with the BCD Tm offline technology, able to ensure voltage ratings up to 600 V, making it perfectly suited for AC/DC adapters and wherever a resonant topology can be beneficial. The device is intended to drive two power MOSFETs, in the classical half bridge topology. A dedicated timing section allows the designer to set soft-start time, soft-start and minimum frequency. An error amplifier, together with the two enable inputs, are made available. In addition, the integrated bootstrap diode and the Zener clamping on low voltage supply, reduces to a minimum the external parts needed in the applications.
Key features
- High voltage rail up to 600 V
- dV/dt immunity ±50 V/ns in full temperature range
- Driver current capability: 250 mA source, 450 mA sink
- Switching times 80/40 ns rise/fall with 1 nF load
- CMOS shutdown input
- Undervoltage lockout
- Soft-start frequency shifting timing
- Sense op amp for closed loop control or protection features
- High accuracy current controlled oscillator
- Integrated bootstrap diode
- Clamping on Vs
- Available in DIP16 and SO16 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP1399ACDR2G#C377544onsemi · SOIC-16 | onsemi | SOIC-16 | 5,521 | ₹157.21 · 5,521 in stock | View |
 | NCP1396BDR2G#C30310onsemi · SOIC-16 | onsemi | SOIC-16 | 112 | ₹219.42 · 112 in stock | View |
 | NCP1396ADR2G#C328039onsemi · SOIC-16 | onsemi | SOIC-16 | 92 | ₹150.69 · 92 in stock | View |
 | NCP1397BDR2G#C362061onsemi · SOIC-16 | onsemi | SOIC-16 | 1,343 | ₹187.73 · 1,343 in stock | View |
 | NCP1397ADR2G#C50420onsemi · SOIC-16 | onsemi | SOIC-16 | 7,321 | ₹210.36 · 7,321 in stock | View |
