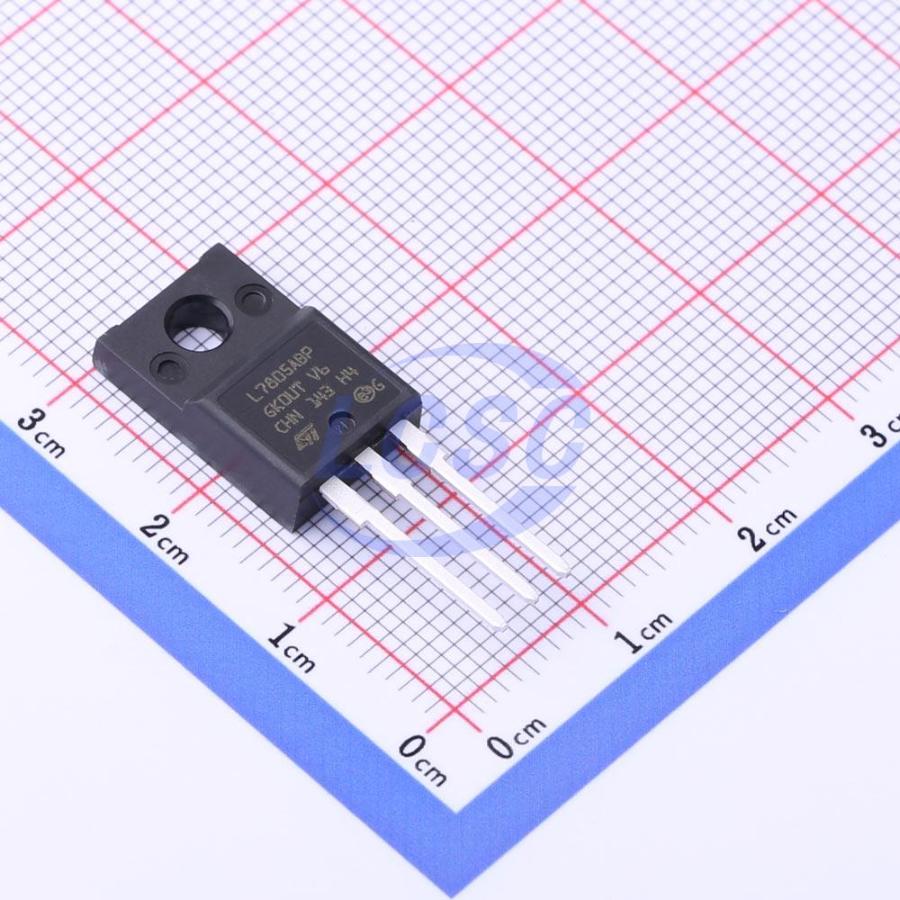

L7805ABP
5V Positive Fixed TO-220FP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220FPROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7805ABP
- Store part #
- C2935188
- Package / case
- TO-220FP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,096 in stock
#C2935188
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹127.54 | ₹127.54 |
| 10+ | ₹103.21 | ₹1,032.10 |
| 30+ | ₹91.04 | ₹2,731.20 |
| 100+ | ₹75.61 | ₹7,561.00 |
| 500+ | ₹68.44 | ₹34,220.00 |
| 1,000+ | ₹64.75 | ₹64,750.00 |
1 × ₹127.54
₹127.54
excl. GST
₹150.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7805ABP
₹127.54 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.72 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7805CP#C283396ST · TO-220FP | ST | TO-220FP | On request | Price on request | Quote |
 | LM7805TP#C39670778HTC · TO-220F-3L | HTC | TO-220F-3L | 30 | ₹96.49 · 30 in stock | View |
 | CJ7805F#C2961226JSCJ · TO-220F-3 | JSCJ | TO-220F-3 | 45 | ₹43.09 · 45 in stock | View |
| L7805ACP#C2970962ST · TO-220FP-3 | ST | TO-220FP-3 | On request | Price on request | Quote | |
