STDatasheet (PDF)

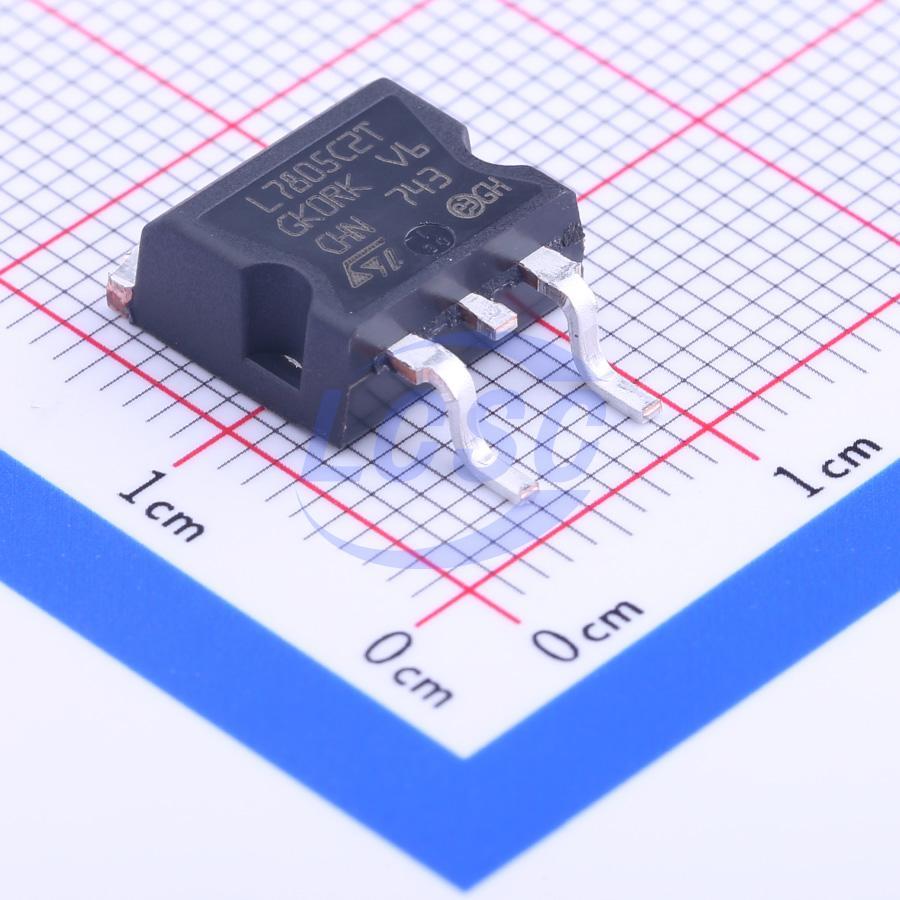

L7805CD2T-TR
5V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7805CD2T-TR
- Store part #
- C15077
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,091 in stock
#C15077
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.58 | ₹55.58 |
| 10+ | ₹43.42 | ₹434.20 |
| 30+ | ₹38.43 | ₹1,152.90 |
| 100+ | ₹31.92 | ₹3,192.00 |
| 500+ | ₹29.09 | ₹14,545.00 |
| 1,000+ | ₹27.36 | ₹27,360.00 |
1 × ₹55.58
₹55.58
excl. GST
₹65.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L7805CD2T-TR
₹55.58 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.915 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7805ABD2T-TR#C86206ST · TO-263-2 | ST | TO-263-2 | 70,950 | ₹38.53 · 70,950 in stock | View |
 | L7805 TO-263#C54430182KTP · TO-263 | KTP | TO-263 | 530 | ₹32.90 · 530 in stock | View |
 | L7805CDTR(XBLW)#C22357876XBLW · TO-263 | XBLW | TO-263 | 9,700 | ₹29.36 · 9,700 in stock | View |
 | L7805CKT#C51898335GREENMICRO · TO-263-2 | GREENMICRO | TO-263-2 | 775 | ₹30.44 · 775 in stock | View |
| 7805AS#C37635960YFW · TO-263 | YFW | TO-263 | 698 | ₹27.98 · 698 in stock | View | |
