GREENMICRO

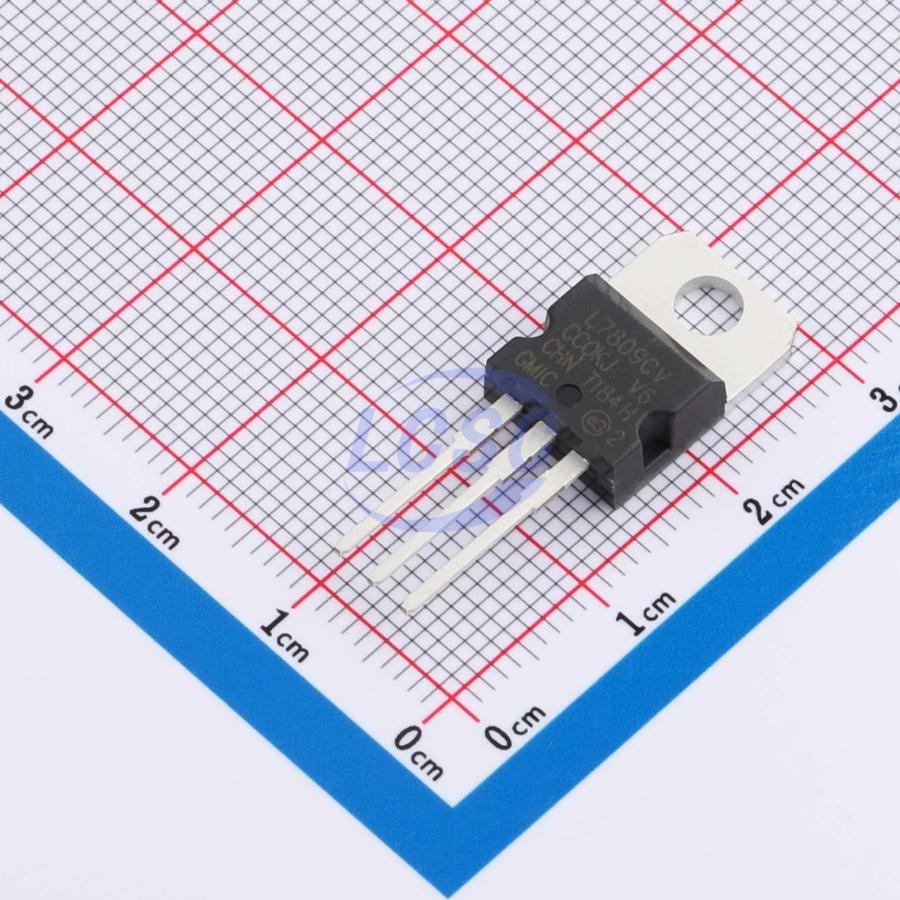

L7809CVAT

9V Positive Fixed TO-220-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

TO-220-3RoHSActive

Manufacturer: GREENMICRO
Manufacturer part #: L7809CVAT
Store part #: C52204776
Package / case: TO-220-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,815 in stock

#C52204776

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
5+	₹21.38	₹106.90
50+	₹16.89	₹844.50
150+	₹14.96	₹2,244.00
500+	₹12.57	₹6,285.00
2,000+	₹11.50	₹23,000.00
5,000+	₹10.86	₹54,300.00

Quantity (min 5, multiples of 5)

5 × ₹21.38

₹106.90

excl. GST

₹126.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

L7809CVAT

₹106.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 9V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃
Output Configuration: Positive
Operating Voltage: 35V
Output Current: 1.5A
Output Type: Fixed
Features: Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.9 g

Overview

The 7809 integrates current limiting, thermal shutdown, and safe operating area protection. Output current up to 1.5 A, output voltage 9 V.

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	L7909CAT#C51898333GREENMICRO · TO-220-3	GREENMICRO	TO-220-3	545	₹27.12 · 545 in stock	View
