XBLWDatasheet (PDF)

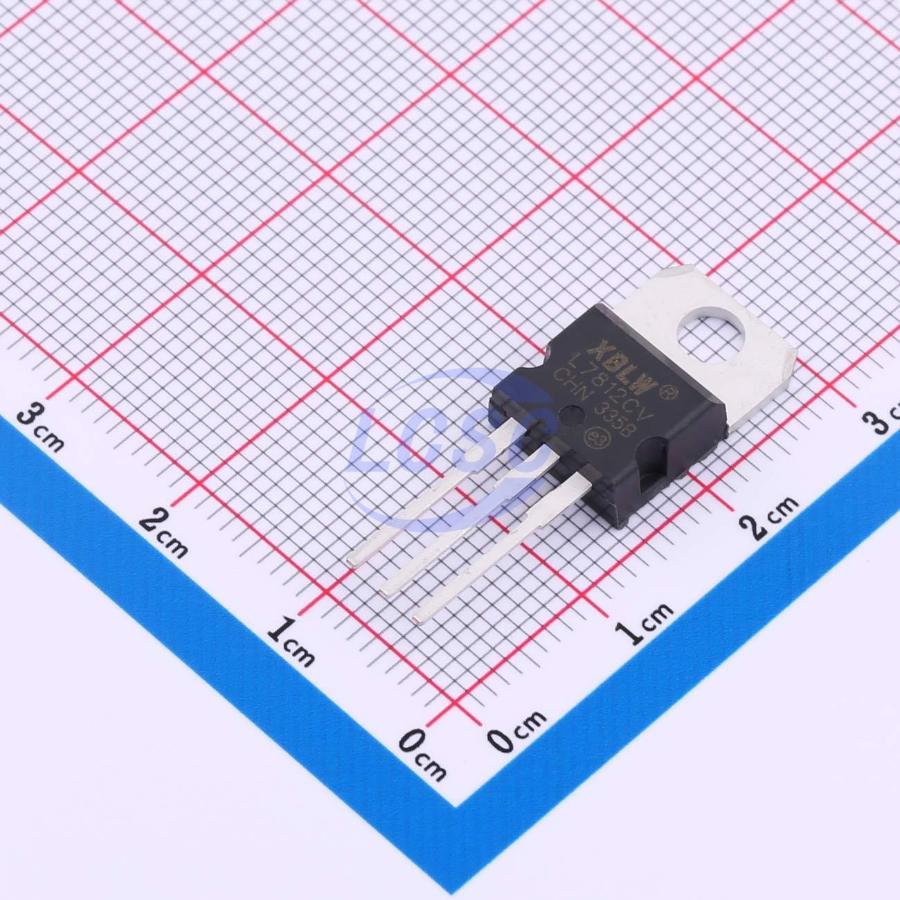

L7812CV(XBLW)
12V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS CompliantActive
1.5A Three-Terminal Positive Regulators
- Manufacturer
- XBLW
- Manufacturer part #
- L7812CV(XBLW)
- Store part #
- C19268190
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,710 in stock
#C19268190
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.45 | ₹122.25 |
| 50+ | ₹19.33 | ₹966.50 |
| 150+ | ₹17.23 | ₹2,584.50 |
| 500+ | ₹14.59 | ₹7,295.00 |
| 2,000+ | ₹13.42 | ₹26,840.00 |
| 5,000+ | ₹12.71 | ₹63,550.00 |
5 × ₹24.45
₹122.25
excl. GST
₹144.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7812CV(XBLW)
₹122.25 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 27V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.391 g
Overview
The L78XX Family monolithic 3-terminal positive voltage regulators employ internal current limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.5A output current. They are intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents. The chips are available in TO-220, TO-263-2L, TO-252-2L and SOT-223 package.
Applications
- Industrial Power Supplies
- SMPS Post Regulation
- HVAC Systems
- AC Inventors
- Test and Measurement Equipment
- Brushed and Brushless DC Motor Drivers
- Solar Energy String Invertors
Key features
- Output Current up to 1.5A
- Output Voltages of 5, 6, 8, 9, 12, 15, 18, 24V
- Thermal Overload Protection
- Short Circuit Protection
- Output Transistor Safe Operating area (SOA) Protection
