STDatasheet (PDF)

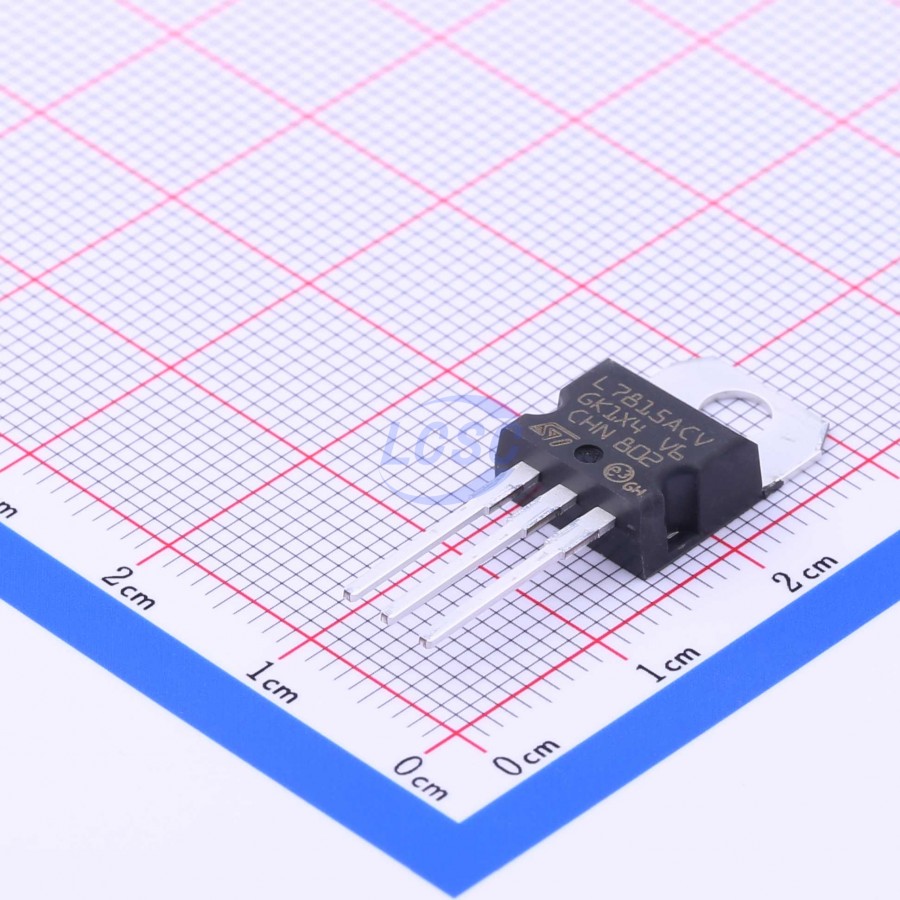

L7815ACV
15V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7815ACV
- Store part #
- C244419
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,977 in stock
#C244419
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.37 | ₹56.37 |
| 10+ | ₹44.66 | ₹446.60 |
| 50+ | ₹39.90 | ₹1,995.00 |
| 100+ | ₹33.62 | ₹3,362.00 |
| 500+ | ₹31.01 | ₹15,505.00 |
| 1,000+ | ₹29.28 | ₹29,280.00 |
| 2,000+ | ₹28.84 | ₹57,680.00 |
| 4,000+ | ₹28.63 | ₹1,14,520.00 |
1 × ₹56.37
₹56.37
excl. GST
₹66.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7815ACV
₹56.37 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 28V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7815ACV-DG#C2965261ST · TO-220-3 | ST | TO-220-3 | 932 | ₹93.97 · 932 in stock | View |
 | L7815CV#C5676ST · TO-220 | ST | TO-220 | 7,010 | ₹46.44 · 7,010 in stock | View |
 | L7815ABV-DG#C2802521ST · TO-220 | ST | TO-220 | 1,915 | ₹86.37 · 1,915 in stock | View |
 | L7815 TO-220#C54430189KTP · TO-220 | KTP | TO-220 | 420 | ₹27.84 · 420 in stock | View |
 | L7815ABV#C191255ST · TO-220 | ST | TO-220 | 497 | ₹83.88 · 497 in stock | View |
