STDatasheet (PDF)

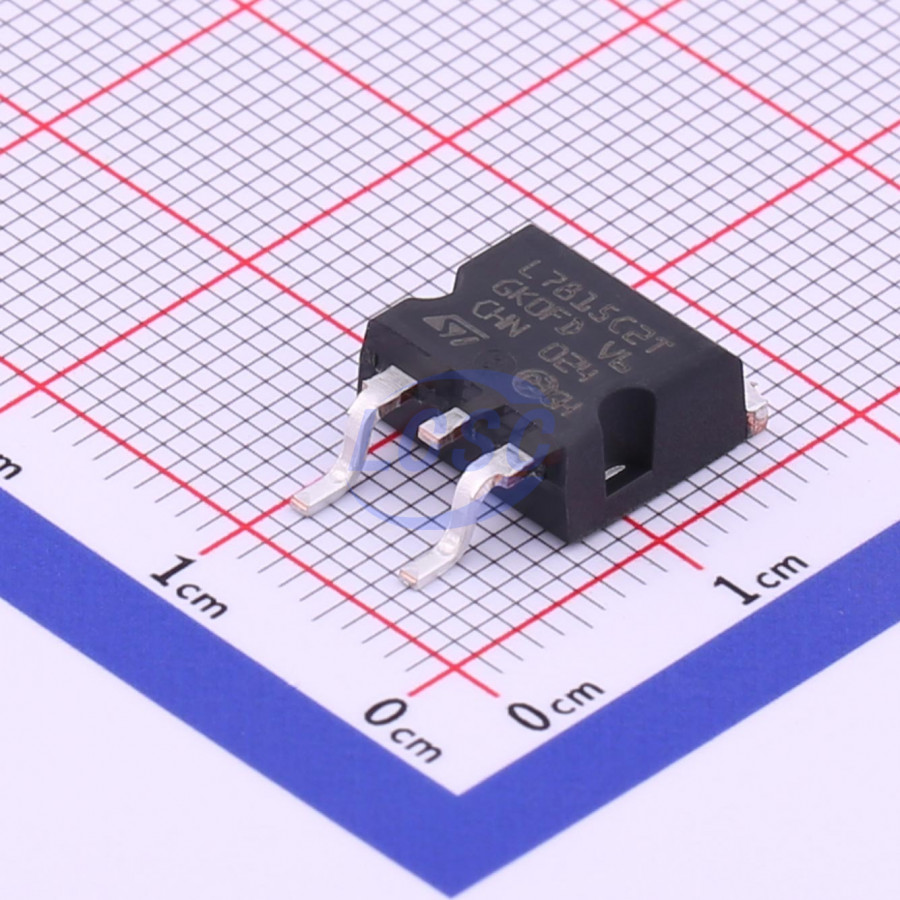

L7815CD2T-TR
15V Positive Fixed D2PAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
D2PAKROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7815CD2T-TR
- Store part #
- C314016
- Package / case
- D2PAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,541 in stock
#C314016
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.92 | ₹101.92 |
| 10+ | ₹85.40 | ₹854.00 |
| 30+ | ₹77.14 | ₹2,314.20 |
| 100+ | ₹68.89 | ₹6,889.00 |
| 500+ | ₹54.34 | ₹27,170.00 |
| 1,000+ | ₹51.73 | ₹51,730.00 |
1 × ₹101.92
₹101.92
excl. GST
₹120.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L7815CD2T-TR
₹101.92 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.4 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7815ACD2T-TR#C2798208ST · D2PAK | ST | D2PAK | 5 | ₹88.22 · 5 in stock | View |
 | L7815ABD2T-TR#C262909ST · D2PAK | ST | D2PAK | 2,635 | ₹70.25 · 2,635 in stock | View |
 | L7815CKT#C51927307GREENMICRO · TO-263-2 | GREENMICRO | TO-263-2 | 980 | ₹35.10 · 980 in stock | View |
 | LM7815CS2/TR#C7432236HGSEMI · TO-263-2 | HGSEMI | TO-263-2 | 45 | ₹43.14 · 45 in stock | View |
 | UA7815CKTTR#C2863481TI · DDPAK-3(TO-263-3) | TI | DDPAK-3(TO-263-3) | On request | Price on request | Quote |
