STDatasheet (PDF)

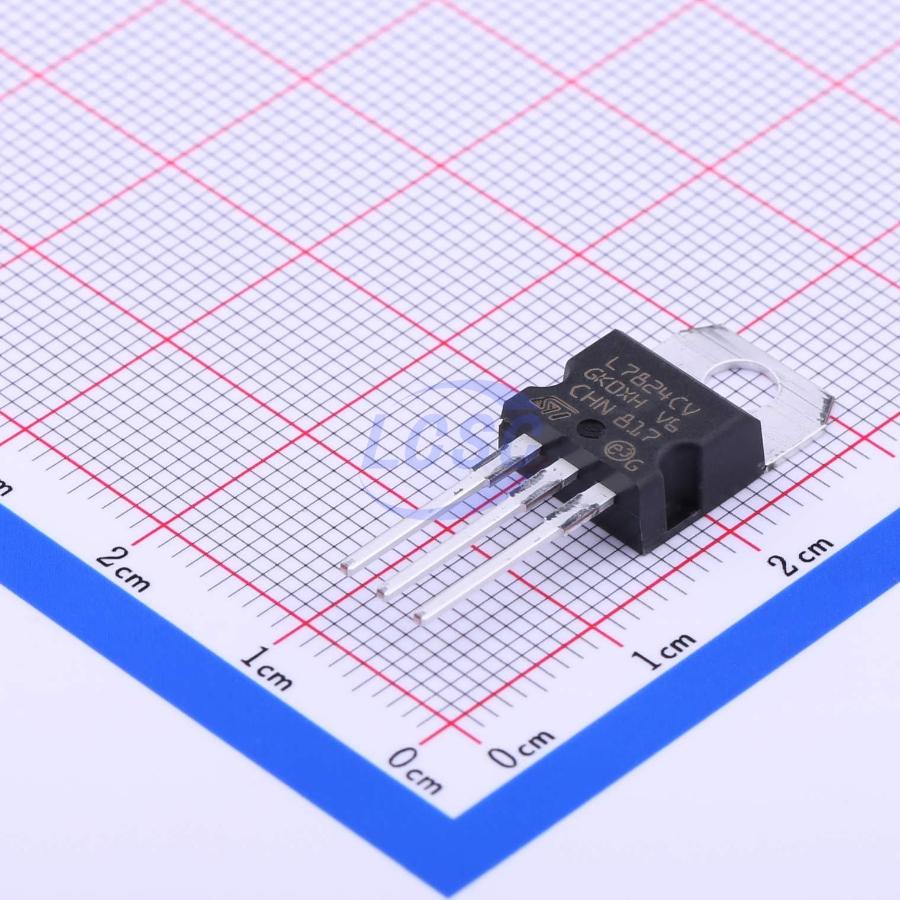

L7824CV
24V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7824CV
- Store part #
- C262910
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,068 in stock
#C262910
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.38 | ₹65.38 |
| 10+ | ₹51.27 | ₹512.70 |
| 30+ | ₹45.18 | ₹1,355.40 |
| 100+ | ₹37.59 | ₹3,759.00 |
| 500+ | ₹34.11 | ₹17,055.00 |
| 1,000+ | ₹32.15 | ₹32,150.00 |
1 × ₹65.38
₹65.38
excl. GST
₹77.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
L7824CV
₹65.38 for 1 + GST
Specifications
- Output Voltage
- 24V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.15 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7824ACV#C435897ST · TO-220 | ST | TO-220 | 1 | ₹116.01 · 1 in stock | View |
 | L7824ABV#C2926453ST · TO-220 | ST | TO-220 | 1 | ₹61.14 · 1 in stock | View |
| UA7824CKCS#C2877415TI · TO-220 | TI | TO-220 | 1 | ₹168.93 · 1 in stock | View | |
 | LM7824T#C39382065HTC · TO-220-3L | HTC | TO-220-3L | 815 | ₹55.54 · 815 in stock | View |
 | LM7824CT#C7432219HGSEMI · TO-220-3 | HGSEMI | TO-220-3 | 420 | ₹40.71 · 420 in stock | View |
