STDatasheet (PDF)

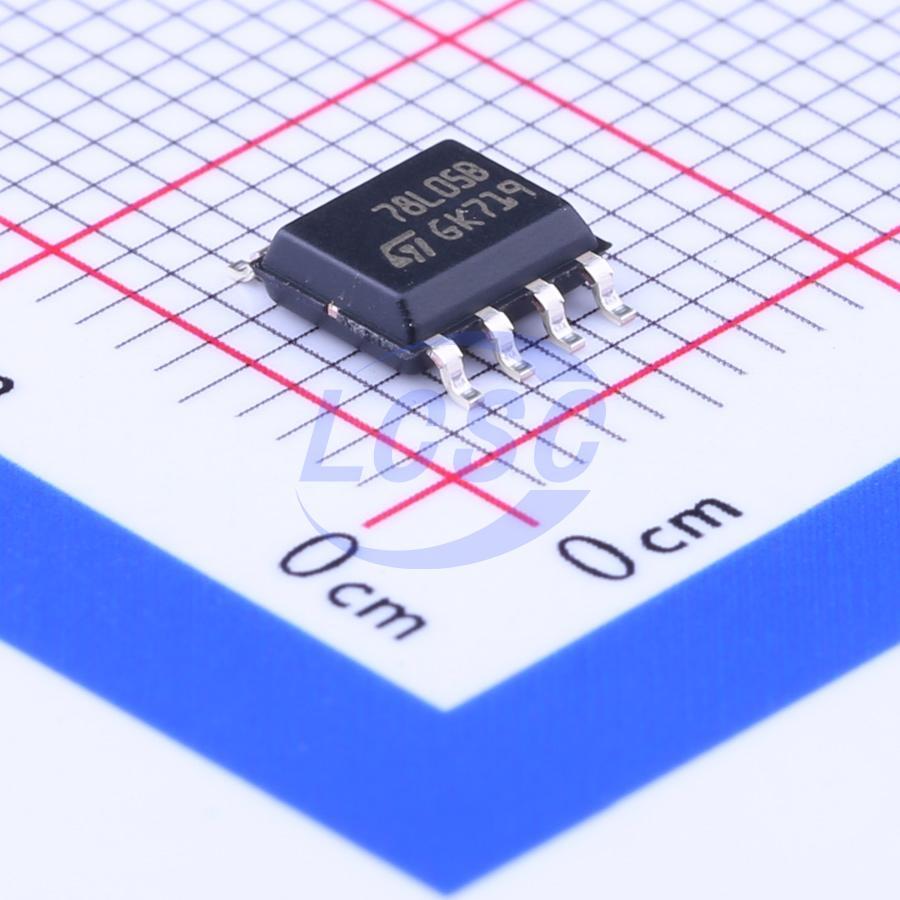

L78L05ABD13TR
5V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L05ABD13TR
- Store part #
- C81154
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,14,100 in stock
#C81154
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.30 | ₹123.00 |
| 100+ | ₹10.29 | ₹1,029.00 |
| 300+ | ₹9.30 | ₹2,790.00 |
| 2,500+ | ₹8.55 | ₹21,375.00 |
| 5,000+ | ₹7.95 | ₹39,750.00 |
| 10,000+ | ₹7.65 | ₹76,500.00 |
10 × ₹12.30
₹123.00
excl. GST
₹145.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L05ABD13TR
₹123.00 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.312 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV78L05ABDR2G#C719824onsemi · SOIC-8 | onsemi | SOIC-8 | 2,495 | ₹29.62 · 2,495 in stock | View |
 | MC78L05ABDR2G#C7371onsemi · SOIC-8 | onsemi | SOIC-8 | 15,660 | ₹18.07 · 15,660 in stock | View |
 | L78L05ACD13TR#C7543ST · SOIC-8 | ST | SOIC-8 | 2,99,920 | ₹8.60 · 2,99,920 in stock | View |
 | LM78L05ACM/TR#C725342HGSEMI · SOP-8 | HGSEMI | SOP-8 | 6,450 | ₹9.90 · 6,450 in stock | View |
 | TP78L05S8#C41408043TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 475 | ₹13.20 · 475 in stock | View |
