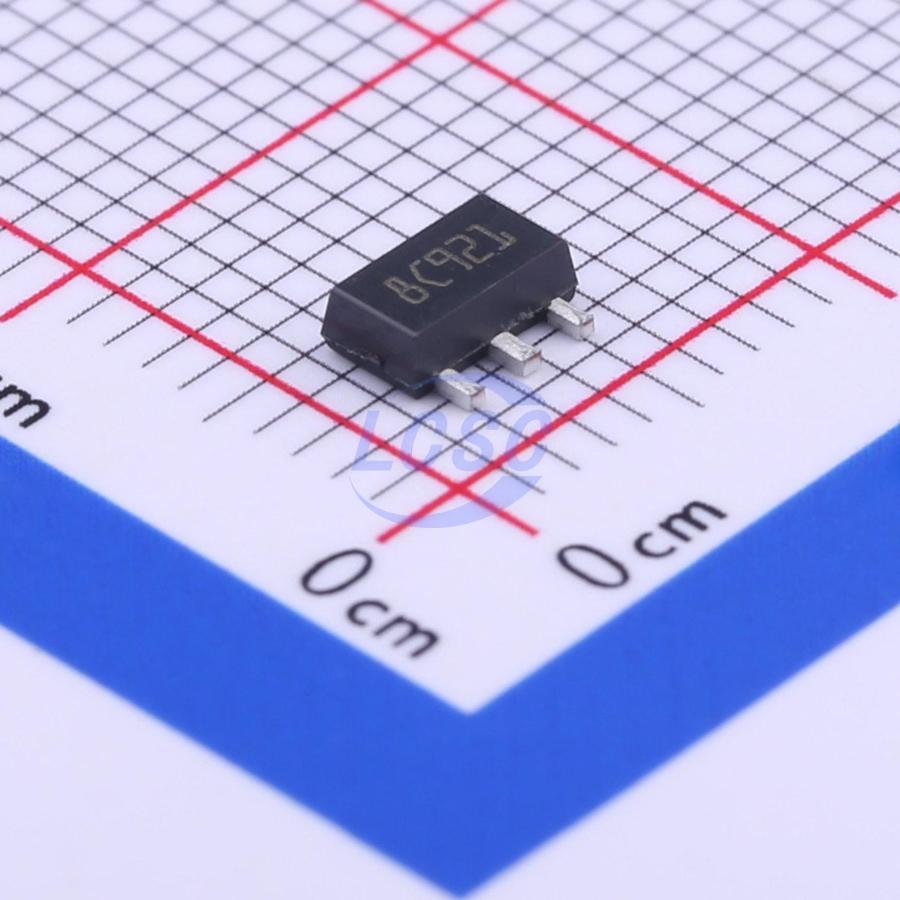

L78L05ABUTR
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PopularSOT-89-3ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L05ABUTR
- Store part #
- C42738
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,97,945 in stock
#C42738
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.71 | ₹48.55 |
| 50+ | ₹7.77 | ₹388.50 |
| 150+ | ₹6.77 | ₹1,015.50 |
| 500+ | ₹5.95 | ₹2,975.00 |
| 2,500+ | ₹5.66 | ₹14,150.00 |
| 5,000+ | ₹5.46 | ₹27,300.00 |
5 × ₹9.71
₹48.55
excl. GST
₹57.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L05ABUTR
₹48.55 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.257 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78L05#C3025155GOODWORK · SOT-89 | GOODWORK | SOT-89 | 1,38,480 | ₹5.15 · 1,38,480 in stock | View |
 | 78L05#C842819FUXINSEMI · SOT-89 | FUXINSEMI | SOT-89 | 16,320 | ₹6.18 · 16,320 in stock | View |
 | 78L05-150#C347268UMW · SOT-89-3 | UMW | SOT-89-3 | 1,22,450 | ₹6.02 · 1,22,450 in stock | View |
 | 78S05M#C400136UNI-SEMIC · SOT-89-3 | UNI-SEMIC | SOT-89-3 | 3,955 | ₹16.70 · 3,955 in stock | View |
 | 78L05 SOT-89#C42395199KUU · SOT-89 | KUU | SOT-89 | 530 | ₹7.04 · 530 in stock | View |
