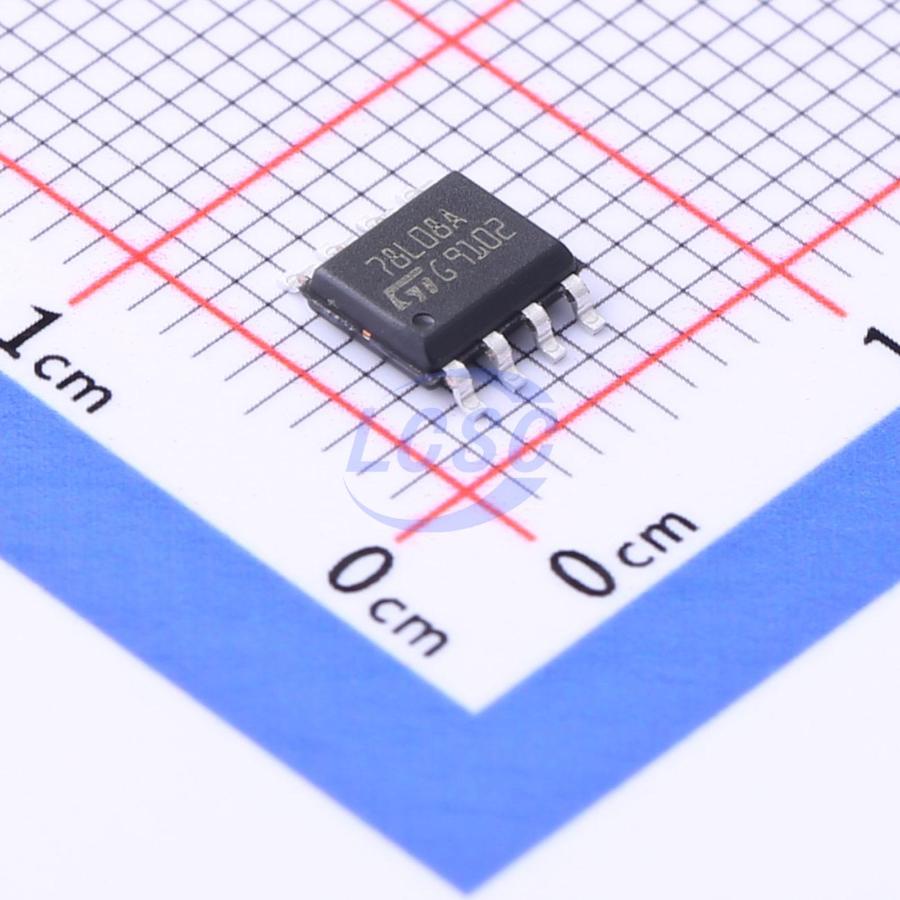

L78L08ACD13TR
8V Positive Fixed SO-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SO-8ROHS3 CompliantActive
0.1A Positive Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L78L08ACD13TR
- Store part #
- C2844913
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,465 in stock
#C2844913
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.69 | ₹158.45 |
| 50+ | ₹24.79 | ₹1,239.50 |
| 150+ | ₹21.84 | ₹3,276.00 |
| 500+ | ₹18.15 | ₹9,075.00 |
| 2,500+ | ₹16.51 | ₹41,275.00 |
| 5,000+ | ₹15.53 | ₹77,650.00 |
5 × ₹31.69
₹158.45
excl. GST
₹186.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L78L08ACD13TR
₹158.45 for 5 + GST
Specifications
- Output Voltage
- 8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
The L78L series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in either ± 4% (A) or ± 8% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78L08ABD13TR#C2970381ST · SOIC-8 | ST | SOIC-8 | 2,500 | ₹20.28 · 2,500 in stock | View |
| L78L08A(UMW)#C22449676UMW · SO-8 | UMW | SO-8 | 3,930 | ₹6.43 · 3,930 in stock | View | |
| UA78L08ACDR#C2869579TI · SOIC-8 | TI | SOIC-8 | 6 | ₹157.82 · 6 in stock | View | |
 | NCV78L08ABDR2G#C904674onsemi · SOIC-8 | onsemi | SOIC-8 | 445 | ₹23.95 · 445 in stock | View |
 | MC78L08ABDR2G#C904223onsemi · SOIC-8 | onsemi | SOIC-8 | On request | Price on request | Quote |
